1530ATC-R Double Beds: Industrial 4-Axis Rotary Spindle CNC Router for High-Volume Precision Machining

What Is the 1530ATC-R Double Beds?

From Jinan Chentuo CNC Equipment Co., Ltd., the 1530ATC-R Double Beds redefines efficiency and versatility in industrial machining as a premium 4-axis rotary spindle CNC router, engineered with dual independent worktables and an automatic tool changer (ATC) to eliminate downtime and boost throughput. Unlike single-bed machines that force production pauses during workpiece loading or tool swaps, the 1530ATC-R Double Beds integrates two 1500×3000mm worktables that alternate seamlessly between active machining and offline setup—keeping the spindle in constant operation. Paired with its high-precision 4-axis rotary spindle system, this machine transitions effortlessly between large-format flat-panel processing and 360° rotational carving of cylindrical, tapered, or irregularly shaped parts. For B2B manufacturers, large-scale fabricators, and custom production facilities, the 1530ATC-R Double Beds is not just equipment—it’s a transformative asset that balances high-volume output with the meticulous precision required for industries like automotive, aerospace, and architectural manufacturing. Whether batch-producing functional components, crafting intricate decorative pieces, or fulfilling tight-deadline signage orders, the 1530ATC-R Double Beds delivers consistent, factory-grade results that meet the strictest global quality standards.

Core Features of the 1530ATC-R Double Beds

• Dual Independent Worktables & 12-Tool ATC System

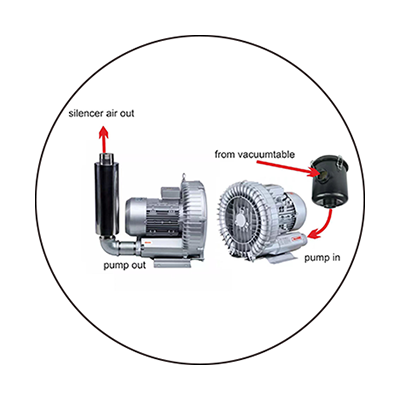

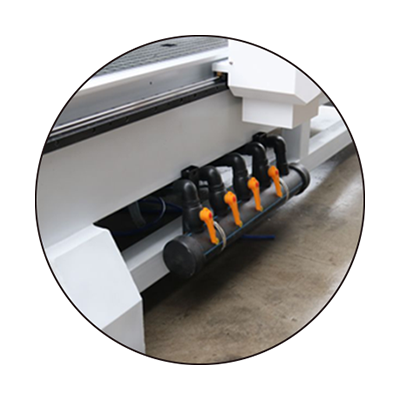

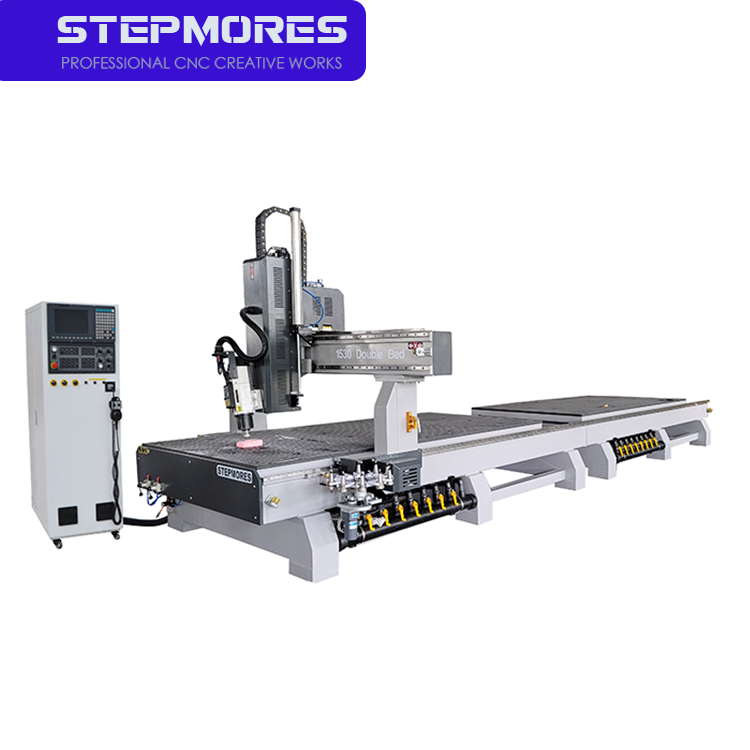

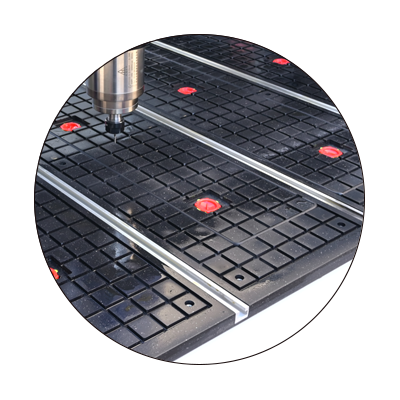

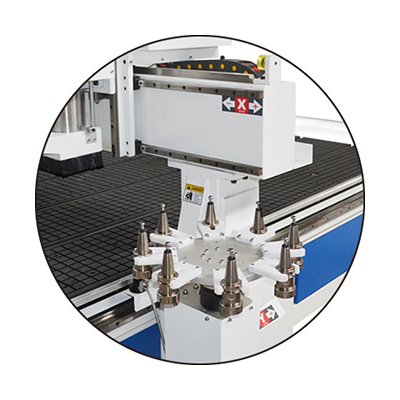

The 1530ATC-R Double Beds’ defining feature is its two identical 1500×3000mm worktables, which operate completely independently: while one bed executes machining tasks (cutting, engraving, or carving), operators can load, unload, or clamp new workpieces on the other—eliminating idle time that plagues single-bed machines. Each bed includes a vacuum adsorption system (paired with a 5.5kW pump) and T-slot clamps, securing both large flat panels and small, irregular parts during high-speed operations. Complementing the dual beds is a 12-tool automatic tool changer (ATC) that swaps endmills, engraving bits, and drill bits in just 1.5 seconds. This system supports continuous processing of complex projects that require multiple tool changes, from deep-cutting aluminum to fine-detail wood engraving—all without manual intervention.

• Integrated 4-Axis Rotary Spindle Module

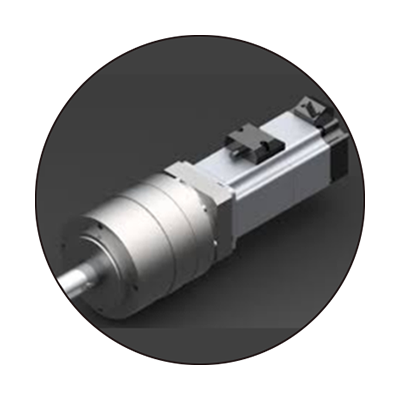

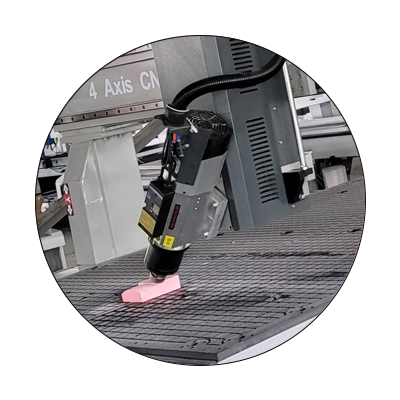

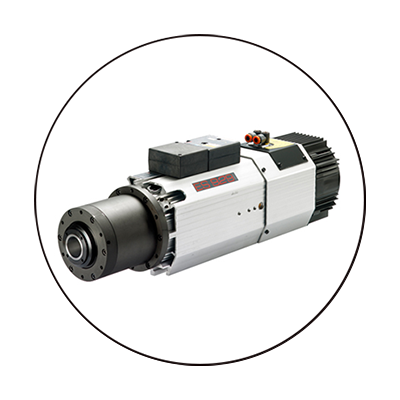

At the heart of the 1530ATC-R Double Beds is a heavy-duty 4-axis rotary spindle module, designed to handle workpieces up to 350mm in diameter and 2200mm in length. Powered by a high-torque servo motor, the module delivers ±0.01mm positioning accuracy—critical for tasks like 3D relief carving on curved metal surfaces or precision woodturning for furniture components. The spindle itself is a 4.5kW air-cooled unit (adjustable from 0-18,000 RPM) that maintains consistent temperature and cutting power across materials: from soft foam and PVC for signage, to hardened aluminum and steel for industrial parts. Sealed, maintenance-free bearings reduce wear and tear, extending the module’s service life while minimizing downtime for repairs.

• Heavy-Duty Construction & Intuitive Smart Controls

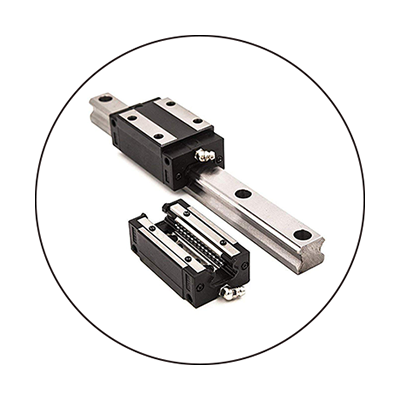

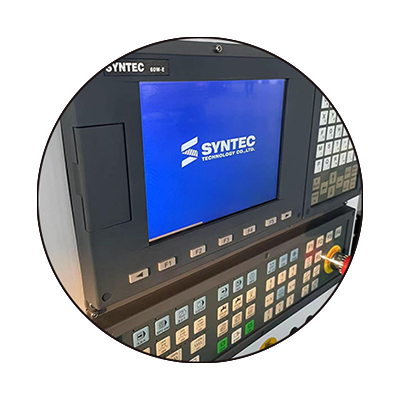

Built to withstand the rigors of 24/7 industrial use, the 1530ATC-R Double Beds features a welded steel frame that undergoes heat treatment to eliminate internal stress and prevent warping over time. Its reinforced cast-iron gantry provides exceptional stability, even when cutting dense, large-format workpieces (such as 10mm-thick steel panels or solid wood blocks). Taiwanese linear guides and helical rack-and-pinion transmission ensure smooth, precise movement across all axes, reducing vibration and ensuring uniform cutting depth. The machine is controlled via an advanced MDR system with a 10-inch color touchscreen interface, which simplifies programming for both new and experienced operators. Key features include breakpoint memory (resumes work seamlessly after power outages), offline file transfer via USB, and storage for up to 200 custom machining profiles—ideal for shops handling repeat orders. The 1530ATC-R Double Beds also integrates fully with leading CAD/CAM software (Artcam, VCarve Pro, Type 3), allowing direct import of 2D and 3D design files without time-consuming conversions.

Key Advantages of the 1530ATC-R Double Beds

• Maximized Productivity & Eliminated Downtime

By replacing single-bed bottlenecks with dual worktables, the 1530ATC-R Double Beds boosts overall throughput by up to 60% compared to traditional routers. For example, a furniture manufacturer can machine a batch of table tops on one bed while prepping chair leg blanks on the other—no production stops, no lost time. The 12-tool ATC system further cuts delays by automating tool changes: a project requiring 5 different tools can run continuously, rather than pausing for manual swaps. This nonstop operation lets businesses take on larger orders, meet tighter deadlines, and increase revenue potential without adding extra shifts.

• Cost Efficiency & Unmatched Versatility

The 1530ATC-R Double Beds replaces three separate pieces of equipment: a large-format flatbed router, a dedicated rotary lathe, and a standalone tool-changing system—slashing initial equipment investment by 40%. Its dual capability (flat-panel + rotary machining) lets businesses serve diverse client needs (from architectural firms to automotive subcontractors) without purchasing specialized machines. Long-term costs are also reduced: the air-cooled spindle eliminates expensive water cooling systems, sealed components require minimal maintenance, and energy-efficient design cuts utility bills during idle periods. For small to mid-sized B2B operations, these savings translate to faster return on investment and higher profit margins.

• Consistent, High-Quality Output Across All Projects

The 1530ATC-R Double Beds’ synchronized 4-axis movement and ATC precision ensure uniform cuts, crisp engravings, and tight tolerances (±0.02mm)—critical for industries where part compatibility and performance are non-negotiable. Dual beds maintain stable temperatures during extended production runs, preventing thermal drift that can compromise accuracy in large workpieces. This consistency delivers assembly-ready parts with minimal post-processing (e.g., sanding or deburring), reducing waste, lowering material costs, and improving customer satisfaction. Whether machining a flat metal bracket or a curved plastic interior trim piece, the 1530ATC-R Double Beds produces results that meet even the most stringent quality standards.

Applications of the 1530ATC-R Double Beds

• Automotive & Transportation Manufacturing

Processes high volumes of plastic interior trim pieces, aluminum alloy brackets, and cylindrical components (gear knobs, exhaust system parts). The 1530ATC-R Double Beds’ speed and precision align with automotive assembly tolerances, making it ideal for subcontractors serving major vehicle manufacturers.

• Architectural & Construction Component Production

Cuts and engraves large aluminum/steel panels for building facades, carves decorative stone columns and balusters, and produces custom wooden trims for high-end residential and commercial spaces. Dual beds handle the high-volume demands of construction projects, while the rotary spindle enables intricate 3D details on architectural elements.

• Advertising & Signage Bulk Production

Creates large batches of 3D acrylic signs, foam display stands, and branded cylindrical products (e.g., retail display poles, promotional drinkware). The ATC system switches seamlessly between cutting, engraving, and drilling tools, while dual beds keep up with tight order deadlines for marketing agencies and sign shops.

• Furniture & Woodworking Mass Production

Machines solid wood furniture panels, intricate curved chair legs, and cabinet components. The 1530ATC-R Double Beds’ rotary spindle handles complex woodturning tasks, while dual beds support continuous production for large furniture factories.

• Aerospace & Precision Engineering

Fabricates lightweight metal (aluminum, titanium) and composite parts with strict tolerances for aircraft interiors and structural components. The 1530ATC-R Double Beds’ stability and accuracy meet the rigorous demands of aerospace manufacturing.

Why Choose Jinan Chentuo’s 1530ATC-R Double Beds?

Jinan Chentuo CNC Equipment Co., Ltd. designs the 1530ATC-R Double Beds with B2B reliability and performance at its core. Each unit undergoes 72 hours of continuous load testing before shipment to ensure optimal performance, and comes with a 2-year warranty covering parts and labor. The company’s customer support package includes on-site installation, operator training, and ongoing technical assistance—ensuring businesses can maximize the machine’s potential from day one. With over 16 years of experience in CNC manufacturing and a global customer base spanning 60+ countries, Jinan Chentuo understands the unique needs of industrial workshops: from minimizing downtime to delivering consistent quality. The 1530ATC-R Double Beds is more than a machine; it’s a strategic investment that drives long-term productivity, cost savings, and competitive advantage in high-volume manufacturing markets.
