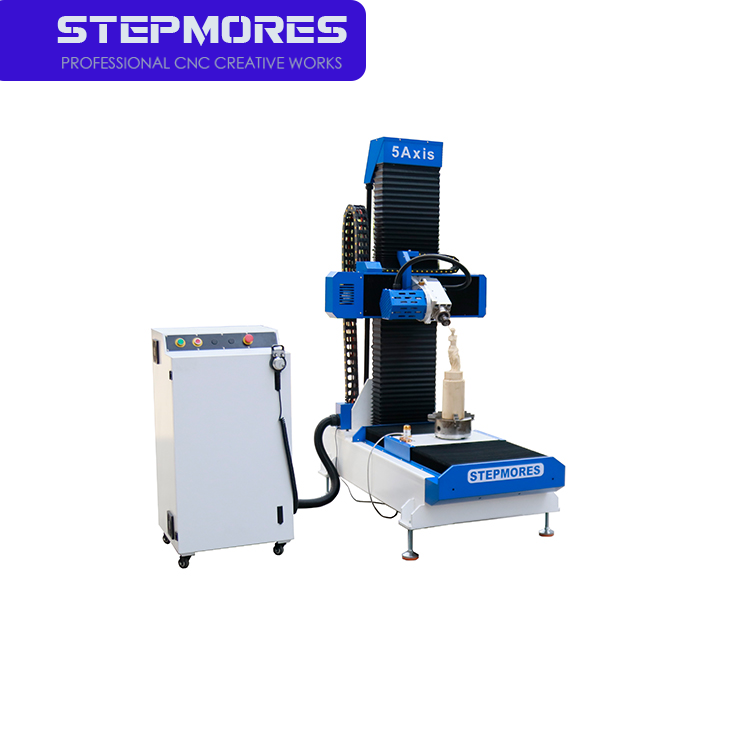

5axis R200xH750: High-Precision 5 Axis CNC Machine for Complex Industrial Machining

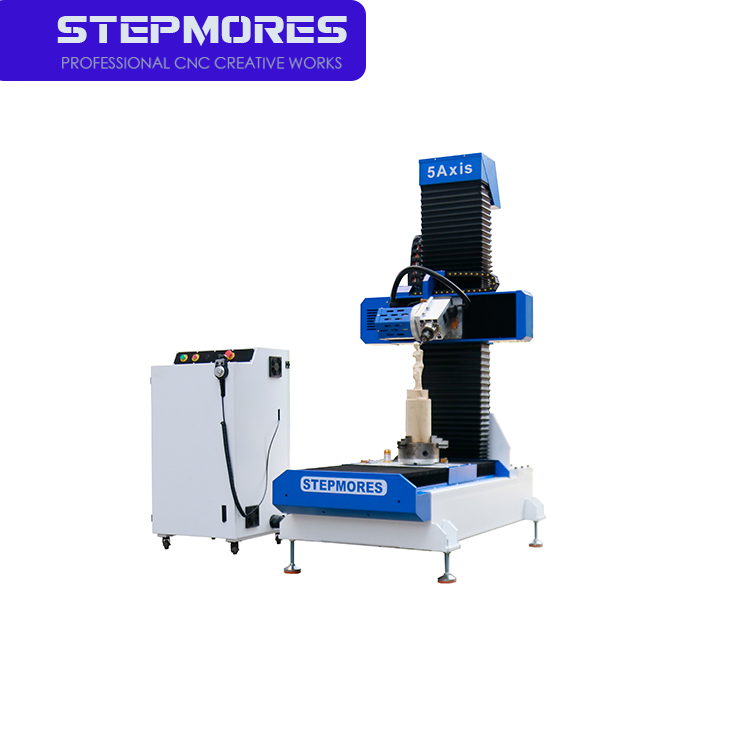

Introducing the 5axis R200xH750 from Jinan Chentuo CNC Equipment Co., Ltd

In the competitive landscape of industrial manufacturing, precision, flexibility, and efficiency are the cornerstones of success—and the 5axis R200xH750 from Jinan Chentuo CNC Equipment Co., Ltd delivers on all three fronts. Designed as a professional 5 Axis CNC solution, this machine is engineered to tackle the most demanding machining tasks, from intricate 3D contours to multi-angle components that challenge traditional equipment. Whether you’re operating a mid-sized workshop or a large-scale production facility, the 5axis R200xH750 redefines what’s possible in complex machining, eliminating bottlenecks and unlocking new levels of productivity. With its robust construction and advanced features, the 5axis R200xH750 is more than a tool—it’s a strategic investment in your operation’s growth.

Core Features of the 5axis R200xH750

The 5axis R200xH750 stands out for its thoughtful engineering and industry-leading components, each selected to enhance performance and reliability:

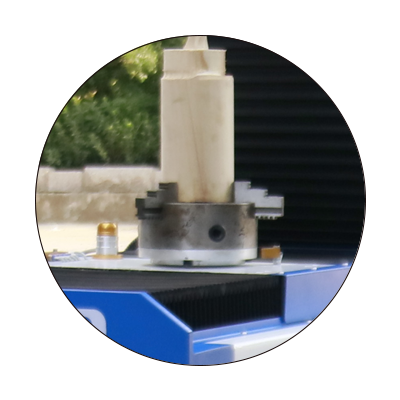

• Optimized Working Dimensions: Boasting a rotary table diameter of 200mm and a maximum machining height of 750mm, the 5axis R200xH750 accommodates tall, cylindrical, or irregularly shaped workpieces with ease, eliminating the need for cumbersome adjustments or multiple setups.

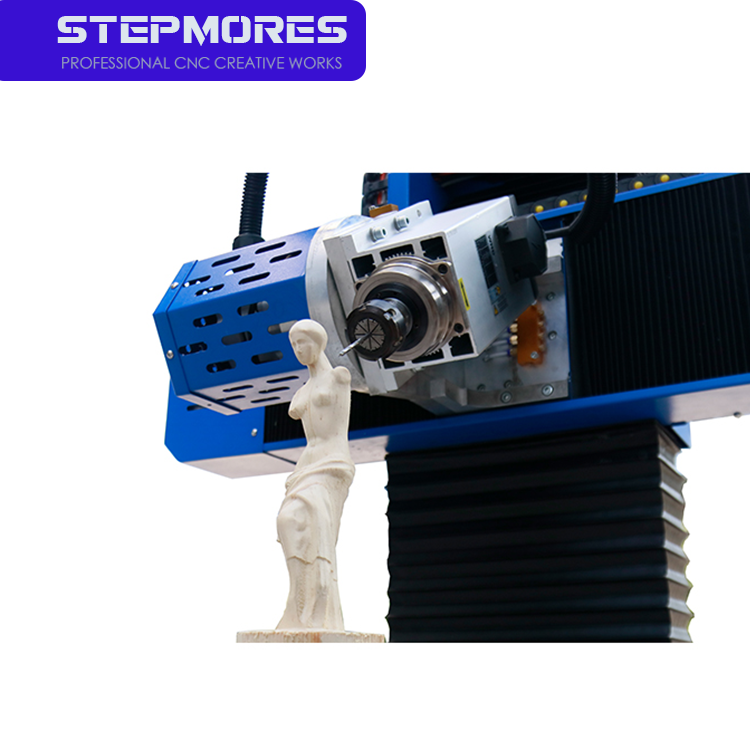

• Full 5-Axis Synchronization: Equipped with a high-torque rotary spindle and precision rotary table, the 5axis R200xH750 supports continuous 5-axis 联动 (linkage), enabling seamless machining of complex surfaces, undercuts, and compound angles without repositioning parts.

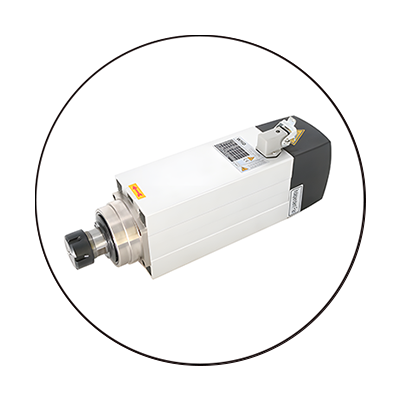

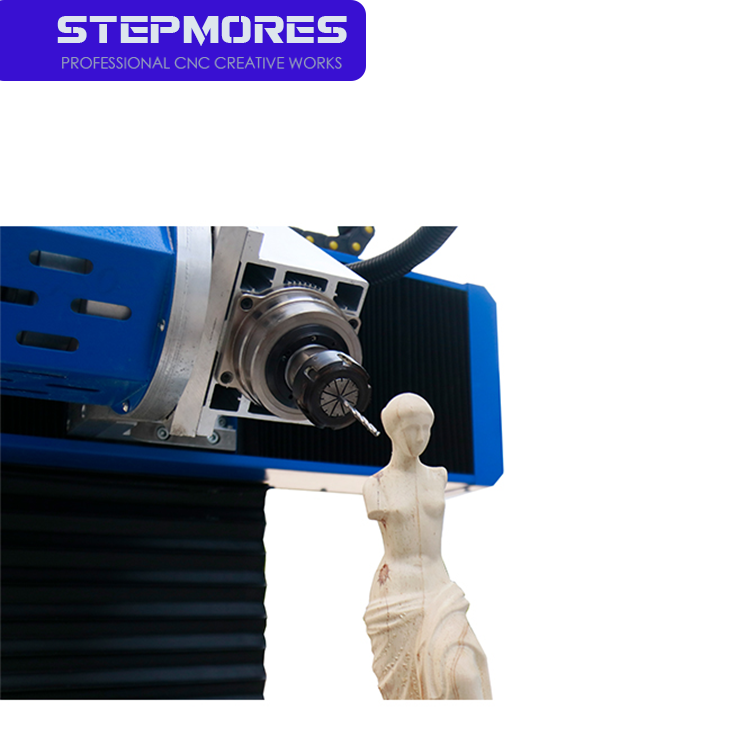

• High-Speed, High-Power Spindle: A 5.5kW water-cooled spindle (rated at 24000rpm) ensures consistent performance even during extended production runs, delivering sharp, clean cuts on a wide range of materials while minimizing thermal deformation.

• Precision-Driven Motion System: Featuring Japanese servo motors, linear guide rails, and ball screws, the 5axis R200xH750 achieves positioning accuracy within ±0.005mm, ensuring every cut is exact and every component meets strict quality standards.

• User-Centric Control & Compatibility: The machine is equipped with a high-performance CNC controller with RTCP (Rotation Tool Center Point) functionality, simplifying programming and tool path optimization. It’s fully compatible with industry-standard software such as Mastercam, UG, and Artcam, allowing your team to integrate it seamlessly into existing workflows.

Key Advantages of the 5axis R200xH750

Investing in the 5axis R200xH750 translates to tangible, bottom-line benefits for your manufacturing operation:

• Unmatched Machining Versatility: Unlike single-purpose machines, the 5axis R200xH750 excels at cutting, milling, drilling, and engraving across diverse materials—including aluminum, steel, copper, composites, and high-density plastics. This versatility lets you take on a broader range of projects and adapt to changing market demands.

• Significant Time & Cost Savings: By enabling full 5-axis machining in a single setup, the 5axis R200xH750 reduces labor hours spent on part repositioning and calibration. It also minimizes material waste caused by misalignment, lowering production costs and shortening lead times for custom or complex orders.

• Superior Component Quality: With its exceptional precision and stable spindle operation, the 5axis R200xH750 produces parts with smooth surface finishes and tight tolerances, reducing the need for post-machining finishing and improving overall product quality. This is critical for industries where precision directly impacts performance and safety.

• Durable & Low-Maintenance Design: Built with a heavy-duty steel frame and sealed, dust-resistant components, the 5axis R200xH750 is designed to withstand the rigors of industrial use. Its water-cooled spindle and self-lubricating guide rails reduce wear and tear, minimizing maintenance downtime and extending the machine’s service life.

• Scalable Performance: Whether you’re producing small batches of custom parts or high-volume runs of standardized components, the 5axis R200xH750 adapts to your needs. Its adjustable feed rates (up to 45000mm/min) and spindle speed control let you optimize performance for each project, balancing speed and precision.

Applications of the 5axis R200xH750

The 5axis R200xH750’s combination of precision, flexibility, and power makes it an ideal solution for a wide range of industrial sectors:

• Aerospace & Defense: Machines high-precision components such as engine parts, aircraft brackets, and sensor housings, meeting the strict tolerances required for aerospace applications.

• Automotive Manufacturing: Produces complex automotive components, including gearbox parts, steering system components, and custom interior trim, supporting both prototype development and mass production.

• Medical Device Production: Fabricates precision medical parts such as surgical instruments, implant components, and diagnostic equipment housings, adhering to the sterile and accuracy standards of the healthcare industry.

• Mold & Die Making: Creates intricate mold cavities, cores, and inserts for injection molding, die casting, and stamping, reducing mold production time and improving mold durability.

• Custom Engineering & Prototyping: Enables rapid prototyping of complex parts for product development, letting engineers test designs quickly and make adjustments without sacrificing precision.

• Jewelry & Luxury Goods Manufacturing: Delivers detailed engraving and shaping for high-end jewelry, watch components, and luxury accessories, where intricate design and flawless finishes are paramount.

Jinan Chentuo CNC Equipment Co., Ltd’s 5axis R200xH750 is engineered to empower manufacturers to take on more challenging projects, reduce costs, and stay ahead of the competition. Its advanced 5-axis capabilities, robust construction, and user-friendly design make it a standout choice for any operation looking to elevate its machining capabilities. Whether you’re focused on precision, productivity, or versatility, the 5axis R200xH750 delivers the performance and reliability you need to succeed in today’s fast-paced industrial landscape.
