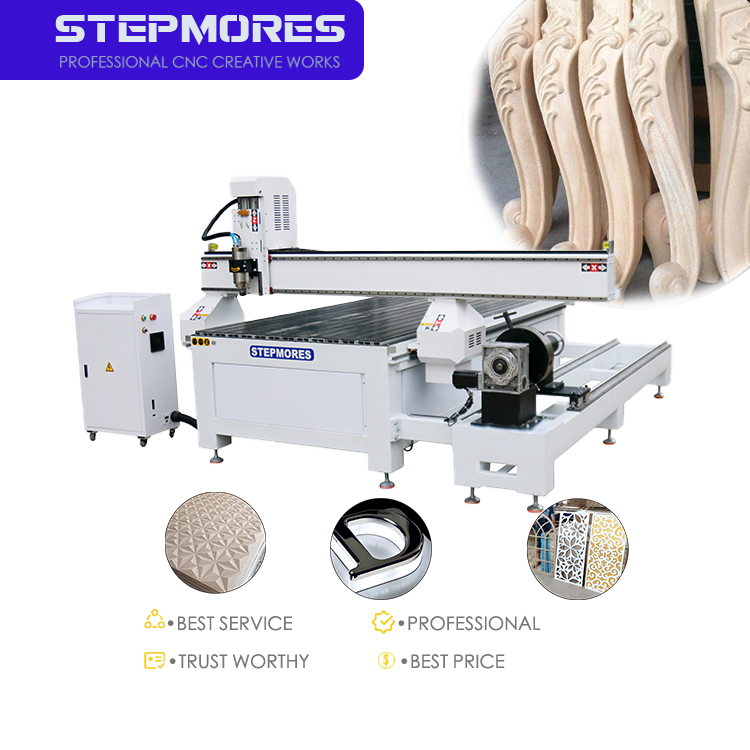

The 1325 CNC Router with Rotary Device (Outside) is designed for precise 3D engraving and cutting of both flat and cylindrical materials. Equipped with a powerful rotary device mounted externally, this machine allows for easy handling of round and tubular objects, enabling detailed designs on pipes, rods, and other curved surfaces. It is ideal for woodworking, metal engraving, sign making, and other industries that require high-quality precision. With its advanced control system and durable components, the 1325 CNC Router with Rotary Device (Outside) offers exceptional performance, making it perfect for both small-scale and large-scale production.
Jinan Chentuo CNC Equipment Co., Ltd. presents the 1325+Rotary Device Outside, a cutting-edge 4-axis CNC router integrated with an external rotary module, designed to redefine flexibility and precision in modern industrial machining. Unlike conventional single-purpose machines that restrict production capabilities, the 1325+Rotary Device Outside features a detachable external rotary system, allowing seamless switching between flat-panel processing and cylindrical workpiece machining without extensive reconfiguration. This dual-functionality makes the 1325+Rotary Device Outside an indispensable tool for B2B manufacturers, custom fabricators, and production workshops seeking to optimize workflows, reduce equipment costs, and expand service offerings. Whether handling large-scale batch production of functional components or creating intricate 3D carvings for custom projects, the 1325+Rotary Device Outside consistently delivers results that meet the strict quality standards of diverse industries, solidifying its position as a reliable asset for businesses aiming to stay competitive.
The 1325+Rotary Device Outside is equipped with a heavy-duty external rotary module that supports workpieces up to 300mm in diameter and 2000mm in length, connected to the main router via quick-release clamps for rapid installation and removal. Its high-precision servo motor enables 360° continuous rotation with a positioning accuracy of ±0.01mm, ensuring consistent results across every cut. The module’s adjustable chuck jaws accommodate irregularly shaped parts—from tapered wood spindles to curved metal components—eliminating the need for custom fixtures and reducing setup time. Additionally, the rotation speed (0-250 RPM) is fully adjustable, allowing operators to tailor performance to material hardness, from soft foam and PVC to durable aluminum and steel.
Built with a welded steel bed (heat-treated to eliminate internal stress and prevent warping over time) and a reinforced aluminum gantry, the 1325+Rotary Device Outside delivers exceptional stability even during high-speed operations. With a traversal speed of up to 24,000 mm/min, it significantly reduces processing time for large-format workpieces, while the 3.5kW water-cooled spindle maintains consistent cutting power and temperature control—critical for prolonged production runs. Taiwanese linear guides and helical rack-and-pinion transmission ensure smooth, precise movement across the 1300×2500mm worktable, minimizing vibration and ensuring superior surface finish, even when cutting dense materials like hardwood or 10mm-thick aluminum.
The 1325+Rotary Device Outside features an intuitive DSP control panel with a 7-inch touchscreen, offering offline programming, breakpoint memory (resumes work seamlessly after power interruptions), and storage for up to 100 job profiles. This user-friendly interface reduces training time for operators, enabling quick adoption into existing production lines. The machine is fully compatible with leading CAD/CAM software, including Artcam, VCarve Pro, and Type 3, allowing direct import of design files without time-consuming conversions. Whether processing 2D patterns or complex 3D models, the 1325+Rotary Device Outside adapts to diverse design requirements, making it a versatile solution for multi-project workshops.
The 1325+Rotary Device Outside eliminates the need for separate flat-panel routers and rotary machines, as its detachable module can be installed in 10 minutes or less. This flexibility allows businesses to switch between 2D cutting (e.g., sign panels, furniture panels) and 3D rotational machining (e.g., chair legs, cylindrical trophies) without downtime, enabling them to take on mixed-project orders and cater to a broader client base. For small to medium-sized workshops, this means maximizing floor space and avoiding the cost of investing in multiple specialized machines.
By integrating two critical machining functions into one unit, the 1325+Rotary Device Outside reduces labor costs by 35%—a single operator can manage batch production without monitoring multiple tools. Its energy-efficient design (2.1kW idle power) lowers utility expenses, while the sealed bearings and durable components of the rotary module require only annual lubrication, minimizing maintenance costs and downtime. Over time, these savings translate to higher profit margins, making the 1325+Rotary Device Outside a cost-effective long-term investment for B2B operations.
The synchronized 4-axis movement of the 1325+Rotary Device Outside ensures uniform cutting depth, precise engravings, and smooth surface finishes across both flat and curved workpieces. For industries like automotive and architectural metalwork, where tight tolerances (±0.02mm) are non-negotiable, the machine delivers assembly-ready parts that reduce the need for post-processing. This consistency not only enhances customer satisfaction but also strengthens a business’s reputation as a reliable supplier of high-quality components.
Ideal for crafting curved chair legs, carved table spindles, decorative cabinet trim, and musical instrument parts (e.g., guitar necks, drum shells). The 1325+Rotary Device Outside’s rotary module handles complex woodturning designs that traditional lathes cannot replicate, enabling custom furniture manufacturers to offer unique, high-end products.
Processes acrylic, foam, and PVC to create 3D logos, dimensional lettering, cylindrical promotional products (e.g., branded pen holders), and display stands. The external rotary system allows seamless wrapping of text and designs around curved surfaces, expanding the creative possibilities for sign makers and advertising agencies.
Machines plastic interior trim pieces, aluminum gear knobs, cylindrical fasteners, and small metal components. The 1325+Rotary Device Outside’s precision and torque ensure parts meet automotive assembly tolerances, making it a valuable tool for hardware suppliers and automotive subcontractors.
Cuts and engraves curved metal railings, decorative lamp posts, custom wall art, and stainless steel fixtures. The machine’s powerful spindle handles steel, brass, and aluminum with minimal burring, delivering finished products that enhance architectural spaces.
Creates personalized items such as engraved wine bottles, 3D-printed trophy bases, custom tool handles, and commemorative plaques. The 1325+Rotary Device Outside’s ability to process small-batch, high-detail projects makes it ideal for gift shops and custom product businesses.
Jinan Chentuo CNC Equipment Co., Ltd. engineers the 1325+Rotary Device Outside with B2B reliability and performance in mind. Each unit undergoes 48 hours of rigorous load testing before shipment, comes with a 2-year warranty, and includes on-site installation, operator training, and ongoing technical support. The company’s commitment to quality ensures that the 1325+Rotary Device Outside delivers consistent performance, minimal downtime, and long-term durability—critical factors for businesses operating in fast-paced industrial environments. For companies looking to streamline workflows, reduce costs, and expand their service capabilities, the 1325+Rotary Device Outside is more than a machine; it’s a strategic investment that drives productivity, profitability, and competitive advantage.
