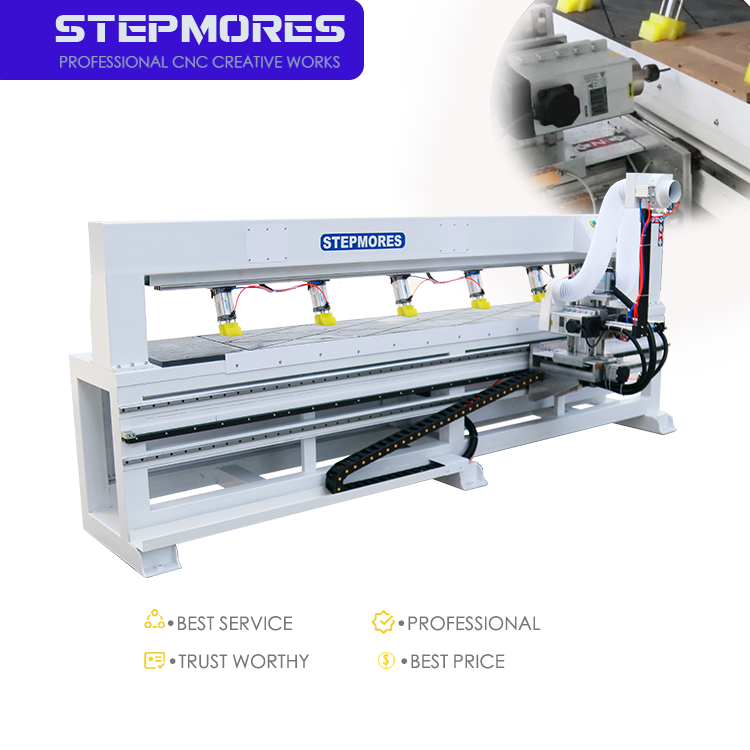

Premium Side Milling Machine: Precision Engineering for Industrial Excellence

Jinan Chentuo CNC Equipment Co., Ltd. proudly presents its state-of-the-art Side milling machine, a cornerstone of nesting CNC technology designed to redefine efficiency and precision in modern manufacturing. As a trusted leader in CNC equipment, we’ve engineered this machine to meet the rigorous demands of B2B clients across diverse industries, delivering consistent performance that drives productivity and profitability. Whether you’re producing complex components or high-volume parts, our Side milling machine combines advanced features with robust construction to exceed your operational expectations.

Key Features of Our Side Milling Machine

Our Side milling machine stands out with innovative design elements that optimize every aspect of the machining process. At its core, the machine features a heavy-duty frame treated with quenching technology, ensuring exceptional stability and reducing vibration during high-speed operations . This structural integrity is complemented by precision ball screw transmission across all three axes, enabling repositioning accuracy of ±0.03 mm and system resolution as fine as ±0.0025 mm—critical for achieving tight tolerances in precision parts .

Equipped with an automatic tool changer (ATC) and dual carousel tool magazines, the Side milling machine minimizes non-production time by seamlessly switching between up to 30 tools for multi-process operations . The 9kW air-cooled spindle delivers consistent power for cutting, slotting, and contouring, while compatibility with industry-standard software (Artcam, Alphacam, Aspire) allows for intuitive programming and toolpath optimization . A 6-zone vacuum worktable provides strong, uniform absorption to secure workpieces of varying sizes, preventing movement and ensuring surface finish quality .

Another standout feature is the machine’s intelligent lubrication system and German-manufactured Igus cables, which enhance durability and reduce maintenance requirements . With a maximum traveling speed of 80 m/min and working speed of 0-25 m/min, the Side milling machine balances speed and precision to handle high-volume production without compromising quality .

Unmatched Advantages of Choosing Our Side Milling Machine

Investing in our Side milling machine translates to tangible operational benefits that give your business a competitive edge. First and foremost, its exceptional precision—with tolerances as tight as 0.004 mm for select materials—eliminates human error and ensures consistency across every batch . This level of accuracy is essential for industries like aerospace and medical device manufacturing, where component flaws can have critical consequences .

The machine’s automation capabilities drive efficiency by enabling 24/7 operation with minimal supervision . The automatic tool change system reduces setup time by 30% compared to manual tool switching, while nesting software optimizes material utilization, cutting waste and lowering material costs . Energy efficiency is another key advantage: our Side milling machine uses up to 85% less energy than traditional milling equipment, aligning with sustainable manufacturing goals and reducing utility expenses .

Durability and reliability are built into every component, from the Japan Yaskawa servo motors to the Taiwan TBI ball screws . This robust construction minimizes downtime and extends the machine’s lifespan, delivering a strong return on investment over years of use. Additionally, the machine’s versatility allows it to process a wide range of materials—including aluminum, steel, plastics, and composites—making it a flexible solution for diverse production needs .

Industrial Applications of the Side Milling Machine

Our Side milling machine is engineered to excel in multiple industries, addressing unique machining challenges with precision and efficiency:

• Aerospace Manufacturing: Produces high-precision slots, grooves, and contours for aircraft components, meeting the strict tolerances required for structural and engine parts . The machine’s ability to handle titanium and aluminum alloys makes it ideal for lightweight, high-strength aerospace components .
• Automotive Production: Manufactures gears, shafts, and chassis parts with consistent accuracy, supporting high-volume production lines. It efficiently creates shoulder features and keyways for transmission systems, enhancing vehicle performance and reliability .
• Furniture and Cabinetry: Optimizes panel processing for cabinet doors, wardrobes, and solid wood furniture. The nesting functionality maximizes sheet material usage, while the machine’s cutting and grooving capabilities produce clean edges for finished products .
• Medical Device Fabrication: Machines surgical instruments, implants, and device housings with biocompatible materials like stainless steel and titanium. The machine’s precision ensures compliance with medical industry standards for surface finish and dimensional accuracy .
• Electronics Manufacturing: Creates intricate slots and contours for circuit boards, enclosures, and electronic components. The machine’s ability to handle small, delicate workpieces with minimal deflection makes it suitable for high-tech electronics production .
• General Engineering and Fabrication: Supports custom part production for diverse industries, from shipbuilding to consumer goods. Its versatility allows for machining of complex geometries that would be difficult or impossible with traditional methods .

Why Partner with Jinan Chentuo CNC Equipment Co., Ltd.?

At Jinan Chentuo CNC Equipment Co., Ltd., we’re committed to providing B2B clients with CNC solutions that drive success. Our Side milling machine is backed by comprehensive technical support, including installation, training, and maintenance services. We work closely with your team to understand your specific production needs, ensuring the machine is configured to deliver optimal performance for your applications.

With years of experience in CNC equipment manufacturing, we combine engineering expertise with customer-centric service to deliver solutions that exceed expectations. Our Side milling machine represents the perfect balance of precision, efficiency, and durability—designed to help your business thrive in today’s competitive manufacturing landscape.
