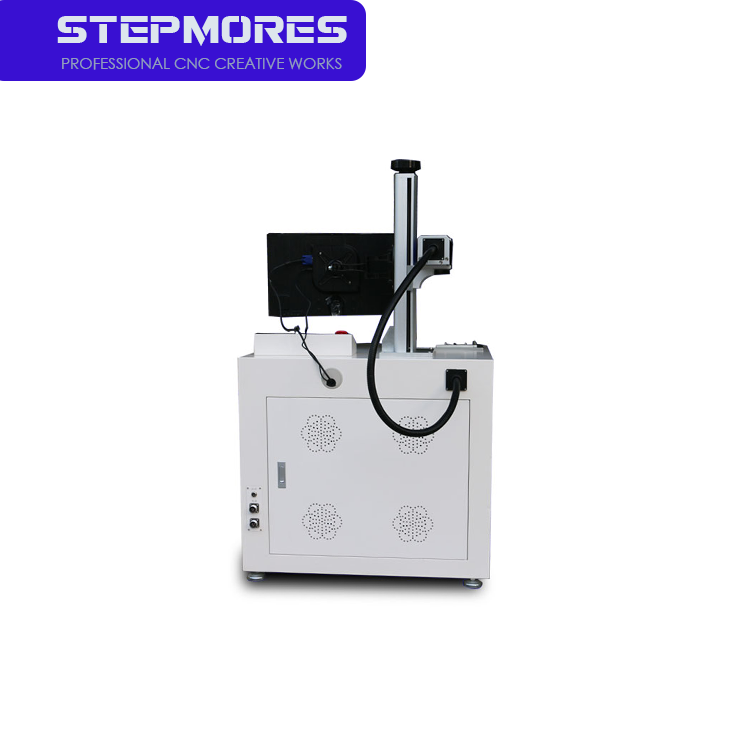

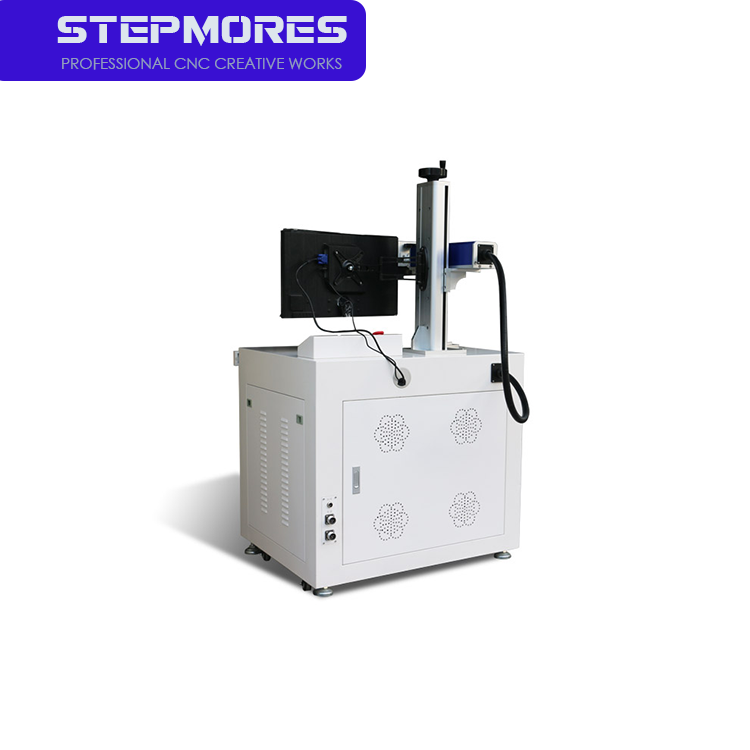

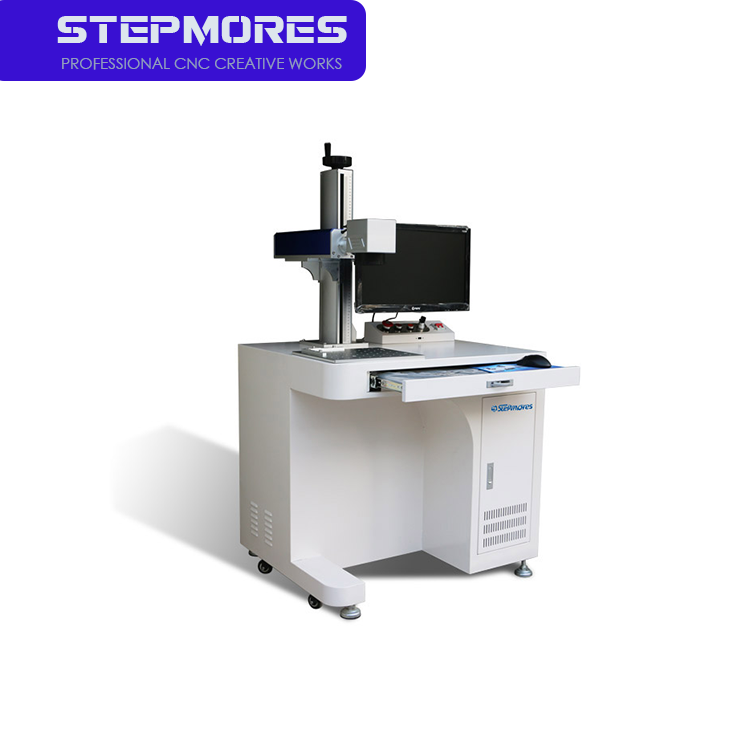

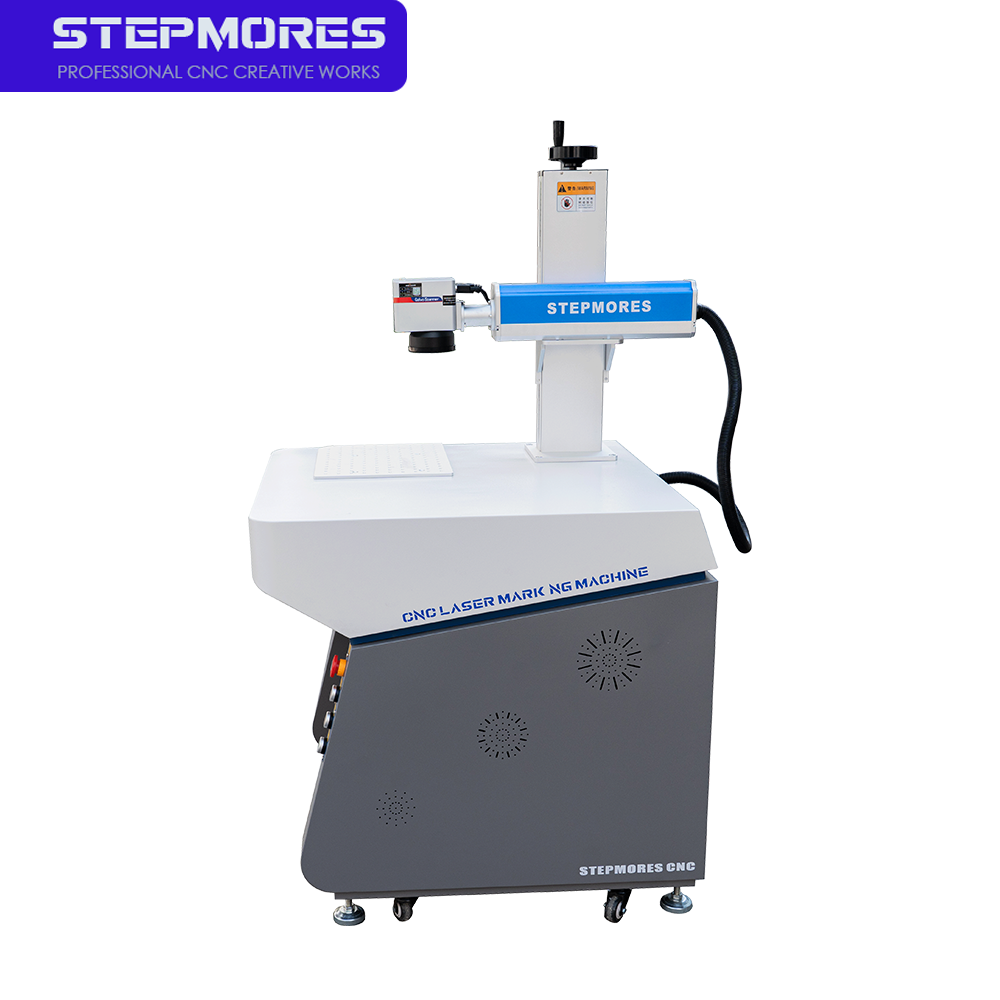

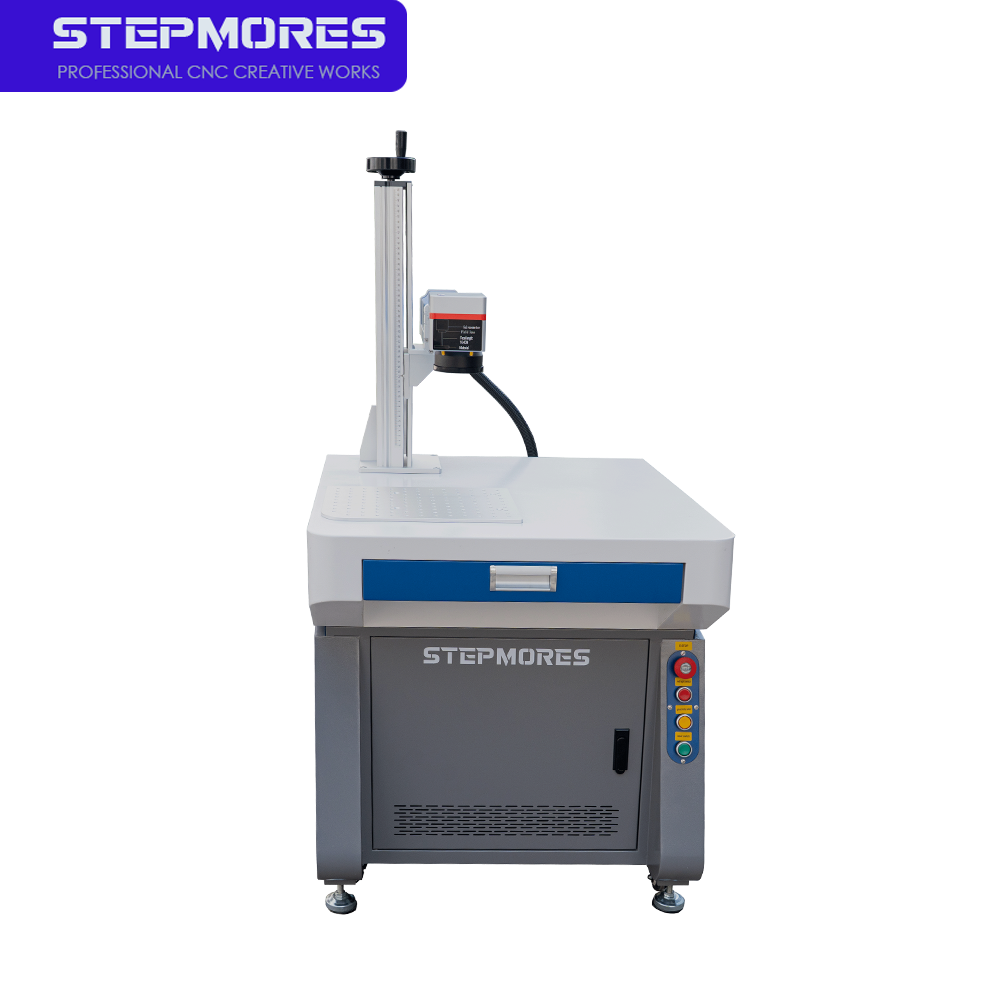

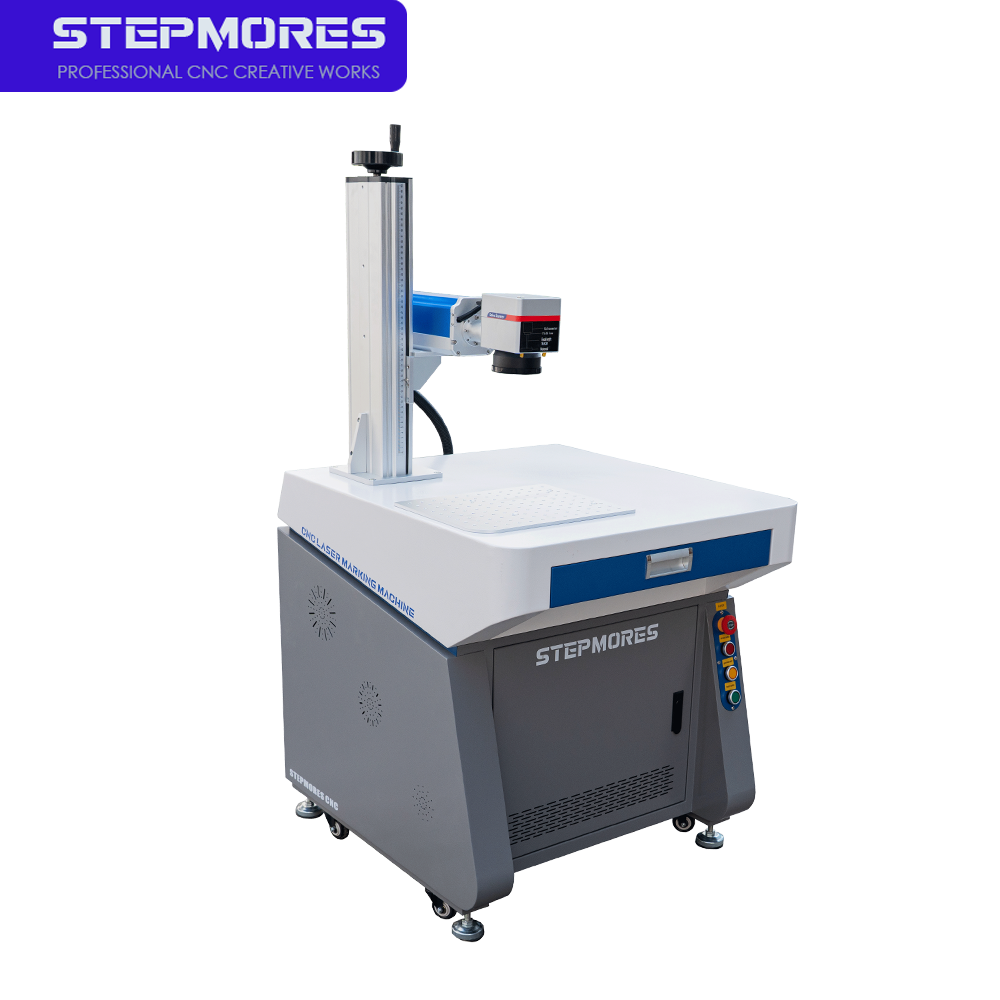

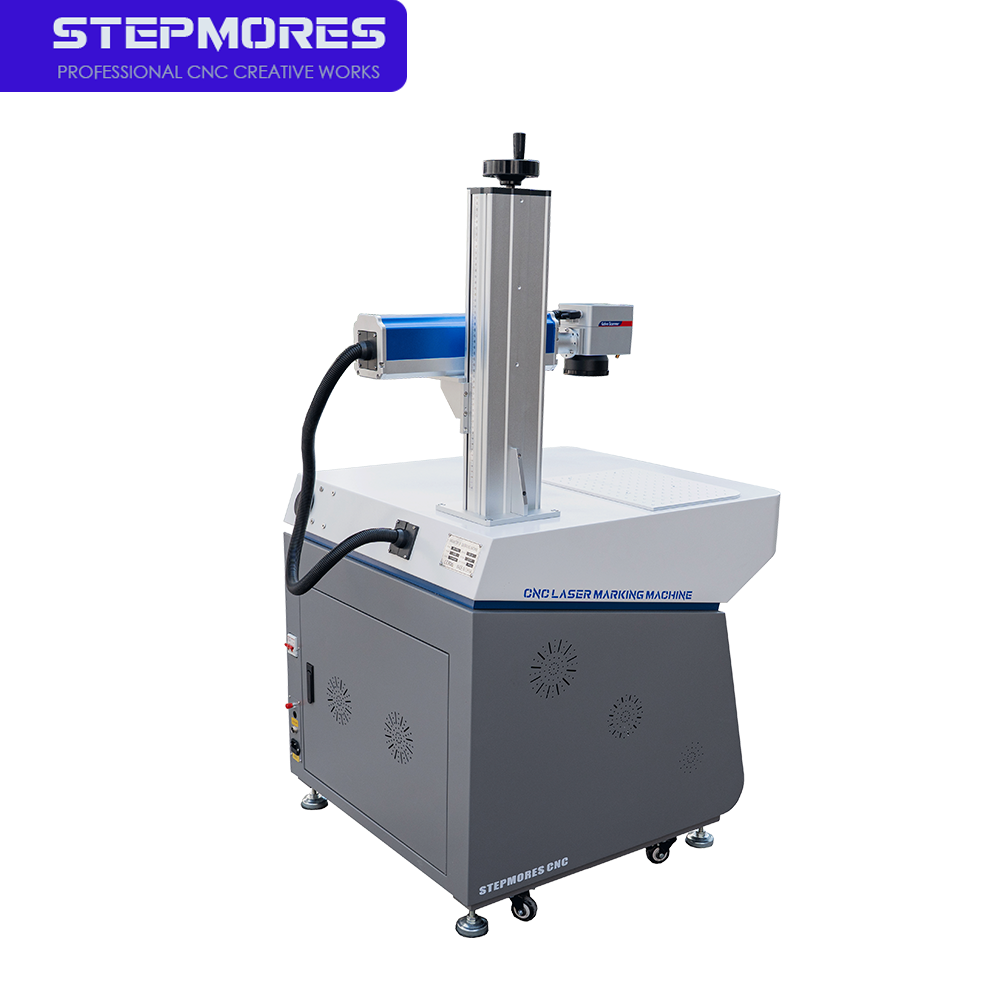

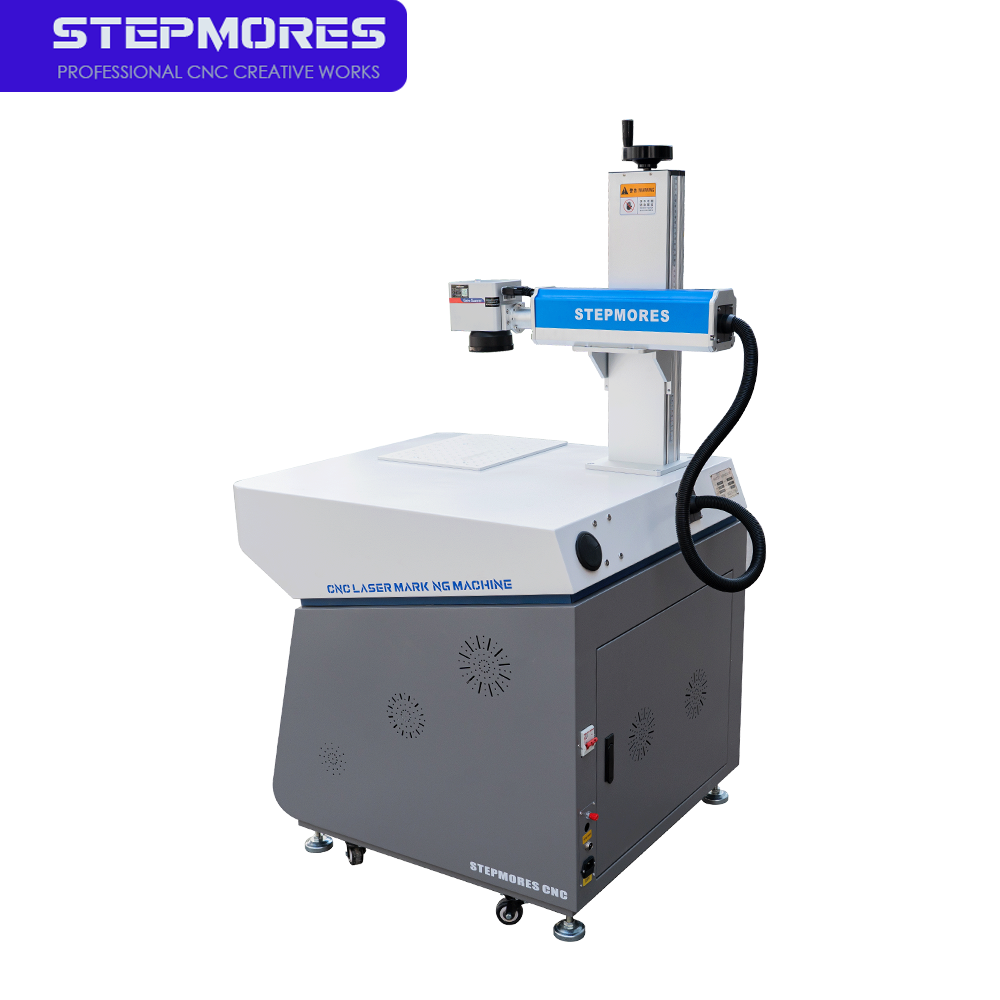

RF laser marking machine -stand type

Industrial Stand-Type RF Laser Marking Solution for Precision Manufacturing

The RF laser marking machine - stand type is a professional industrial marking system engineered for manufacturers that require stable output, refined marking quality, and reliable long-term performance. Designed with a rigid stand structure and advanced RF laser technology, this equipment delivers consistent, high-precision results across a wide range of industrial applications. Its compact footprint, flexible configuration, and professional control system make it a dependable solution for modern production environments.

Built to support continuous operation, the RF laser marking machine - stand type combines durability, efficiency, and precision. It is suitable for workshops, automated production lines, and industrial facilities where repeatability, clarity, and operational stability are essential.

---

Advanced RF Laser Technology for Stable Performance

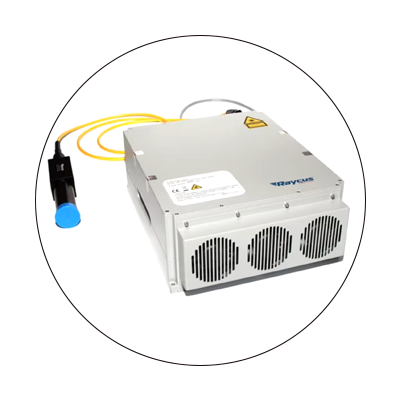

High-Quality RF Laser Source with Long Service Life

The RF laser marking machine - stand type utilizes advanced RF laser technology to provide excellent beam quality and highly stable output. This design effectively solves power attenuation issues, ensuring consistent marking performance during extended 7×24-hour industrial operation. With a long service life and stable energy output, the RF laser source reduces downtime and supports uninterrupted production schedules.

The 1064nm laser wavelength allows efficient energy absorption on metals and selected engineering plastics. This enables clean, permanent markings with high contrast and minimal thermal impact on the material surface.

Energy-Saving Design for Industrial Efficiency

Designed with energy efficiency in mind, the RF laser marking machine - stand type operates with a total unit power consumption of ≤500W. This balance of strong performance and low energy usage helps manufacturers reduce operational costs while maintaining high productivity.

---

Precision Control System and Optical Configuration

Beijing JCZ Control Board and EZCAD2 Software

At the core of the RF laser marking machine - stand type is the Beijing JCZ control system combined with EZCAD2 professional marking software. This proven combination delivers stable data processing, accurate motion control, and reliable system performance even during high-speed marking operations.

The software supports a wide range of graphic formats such as DXF, PLT, BMP, JPG, PNG, and AI. Compatibility with CorelDraw, Photoshop, and AutoCAD allows operators to seamlessly transition from design to production, improving workflow efficiency.

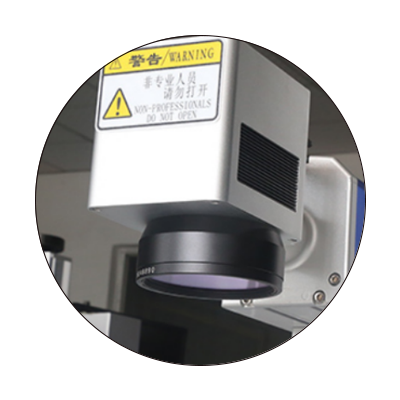

Galvo Scanning Head and F-Theta Lens

A high-speed galvo scanning head ensures rapid and precise beam positioning with minimal distortion. Paired with a high-quality F-Theta lens, the optical system maintains consistent focus across the entire working area. This configuration enables the RF laser marking machine - stand type to achieve marking line widths as fine as 0.06mm and minimum characters as small as 0.15mm.

---

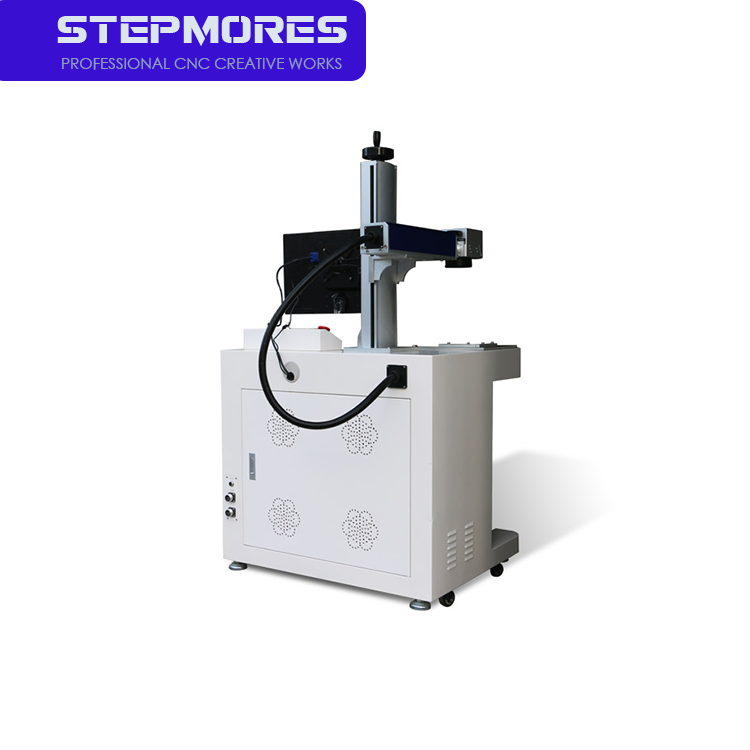

Rigid Stand Structure for Consistent Accuracy

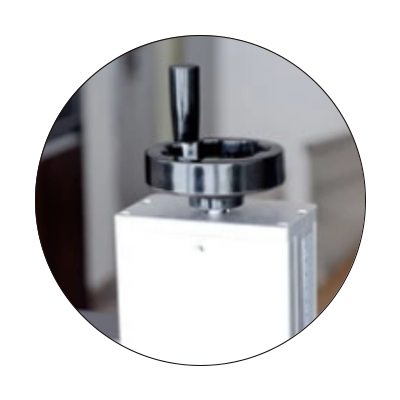

Adjustable Elevator Shaft Design

The stand-type structure provides excellent mechanical stability, which is critical for precise marking results. An adjustable elevator shaft allows accurate control of the focal distance, ensuring uniform marking quality on workpieces of different heights and shapes. This feature is particularly valuable for marking uneven or thick components.

By maintaining a stable focal position, the RF laser marking machine - stand type ensures consistent results across multiple production batches.

Compact and Ergonomic Equipment Layout

With equipment dimensions of 755×390×360mm, the system is compact and easy to integrate into various working environments. The ergonomic design improves operator comfort while maintaining a clean, professional industrial appearance.

---

High-Speed Marking with Fine Detail Control

Fast Processing for High Productivity

The RF laser marking machine - stand type supports marking speeds of up to 8000mm/s, making it suitable for high-volume production. Complex graphics, logos, serial numbers, QR codes, and barcodes can be completed quickly without sacrificing clarity or precision.

Flexible Power Options for Diverse Applications

Standard configurations include 20W and 30W, with optional upgrades to 50W, 60W, 70W, 100W, or 120W. A maximum marking depth of up to 0.4mm allows both surface marking and light engraving, enabling the RF laser marking machine - stand type to adapt to different materials and production requirements.

---

Key Advantages for Industrial Users

Low Maintenance and High Reliability

The solid-state RF laser design eliminates consumables such as ink or chemicals. Combined with a sealed optical path and stable electronic components, maintenance requirements are minimal. This results in higher uptime and long-term operational reliability.

Consistent Quality and Repeatability

With a resolution ratio of 0.01mm, the RF laser marking machine - stand type delivers uniform marking accuracy and excellent repeatability. This consistency is essential for traceability applications and quality-controlled manufacturing processes.

---

Wide Range of Industrial Applications

Manufacturing and Mechanical Components

The RF laser marking machine - stand type is widely used for marking serial numbers, part codes, specifications, and traceability information on mechanical components, tools, and industrial equipment.

Electronics and Electrical Products

Its fine line control and high resolution make it ideal for marking circuit boards, connectors, housings, switches, and electronic components where clarity and durability are required.

Hardware, Tools, and Metal Accessories

Permanent marking on fasteners, fittings, hand tools, and metal accessories improves product identification and brand recognition while preserving surface integrity.

Customized and Decorative Products

With precise control over marking depth and detail, the RF laser marking machine - stand type is also suitable for engraving metal nameplates, promotional items, and customized products.

---

Flexible Configuration for Production Needs

Multiple working area options, including 110×110mm, 150×150mm, and 175×175mm, allow users to select the optimal marking size. Optional laser power upgrades further enhance versatility, making the RF laser marking machine - stand type suitable for both small workshops and large-scale manufacturing operations.

---

Reliable Solution for Professional Marking Requirements

Combining advanced RF laser technology, precision optics, and a stable stand structure, the RF laser marking machine - stand type delivers an effective balance of speed, accuracy, durability, and efficiency. Designed to meet the demands of modern industrial production, it provides dependable performance and long-term value for a wide range of marking applications.
