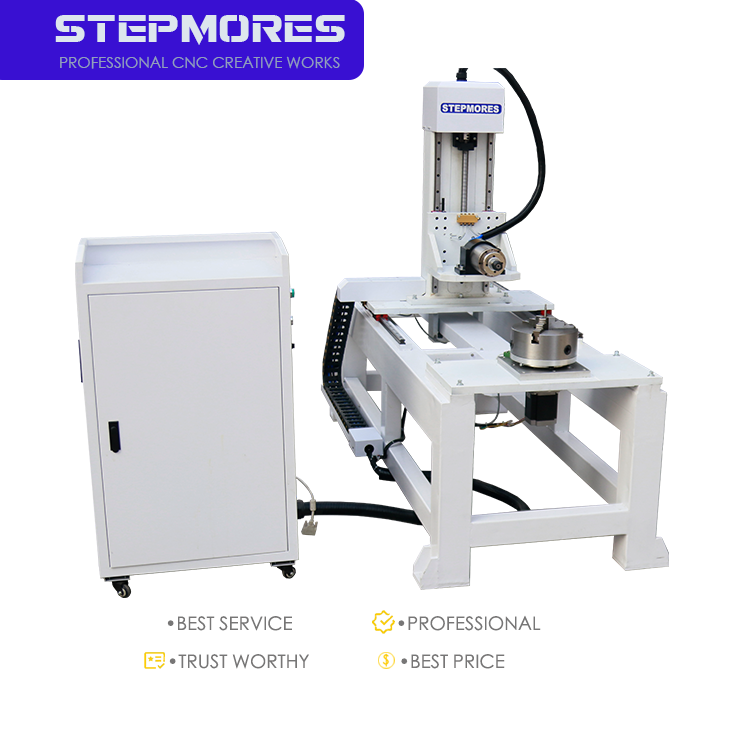

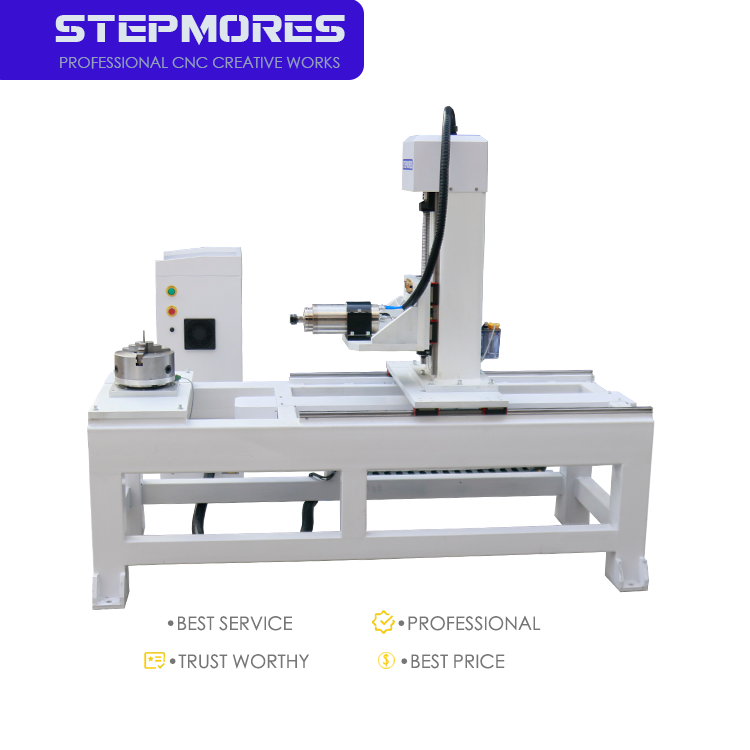

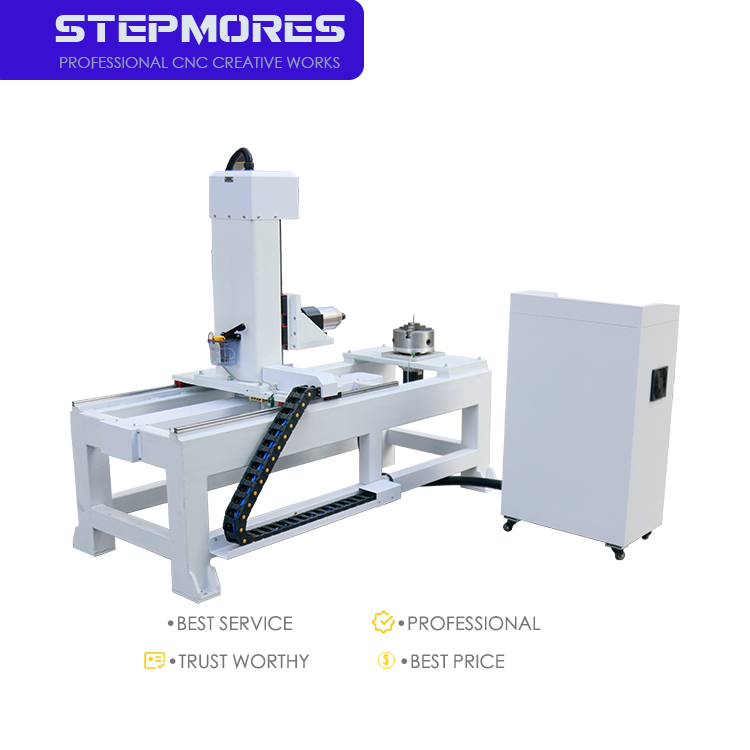

The Flat Rotary Machine is an advanced and efficient solution designed for precise machining and rotary applications. Equipped with a high-performance motor and a stable control system, it delivers consistent, accurate results across various materials. The machine’s robust design ensures durability, while its compact size makes it ideal for both small and large-scale production. Featuring a user-friendly interface, the Flat Rotary Machine simplifies operations and enhances productivity. It is widely used in industries such as metalworking, automotive, and manufacturing, offering versatility and excellent performance at a competitive price.
Jinan Chentuo CNC Equipment Co., Ltd. presents the flat rotary machine—a cutting-edge 4axis-Rotary device engineered to redefine efficiency, accuracy, and versatility in modern manufacturing. Designed for B2B partners seeking to optimize production workflows, this advanced flat rotary machine integrates innovative technology with robust construction, delivering consistent performance across high-volume and precision-critical applications. As a leader in CNC equipment manufacturing, we’ve crafted this flat rotary machine to address the evolving needs of industries demanding reliability, speed, and cost-effectiveness in every operation.
The flat rotary machine stands out with features that set new standards for 4-axis machining. At its core is a high-precision absolute encoder, ensuring positioning accuracy of ±3 arcseconds and repeatability of ±1 arcsecond—critical for maintaining tight tolerances in complex parts production . The device boasts a direct-drive torque motor design, eliminating backlash and enhancing responsiveness, while its hollow center structure accommodates various fixtures and workpieces, supporting flexible machining setups .
With a maximum speed of 200 rpm, the flat rotary machine outperforms traditional worm-driven systems, enabling faster cycle times without compromising quality . Its compact, rigid frame minimizes vibration during operation, ensuring stable performance even under heavy loads up to 240 kg when paired with a tailstock . Additionally, the flat rotary machine features an automatic clamping system with 500 N.m of brake torque, providing secure workpiece retention for multi-sided machining tasks.
Unmatched Efficiency: The flat rotary machine reduces workpiece setup times by enabling one-time clamping for multi-face machining, cutting down on production downtime by up to 40% compared to conventional methods . Its high torque output—27% greater than standard motors—powers through dense materials with ease, boosting throughput for high-volume manufacturing .
Superior Precision: Equipped with premium linear guides and ball screw transmission, the flat rotary machine delivers consistent accuracy across thousands of cycles, meeting the stringent requirements of aerospace, automotive, and mold-making industries . Zero backlash design ensures that every cut, drill, or finish is executed with pinpoint precision.
Low Total Cost of Ownership: The flat rotary machine features a maintenance-free drive system with zero wear components, eliminating the need for regular lubrication or part replacements associated with traditional systems . This design reduces long-term operational costs while maximizing uptime for continuous production.
Seamless Integration: Designed for plug-and-play compatibility with most CNC machining centers, the flat rotary machine integrates effortlessly into existing production lines. Its user-friendly control interface supports custom programming, allowing operators to adjust motion profiles and indexing sequences to match specific application needs .
The flat rotary machine is a versatile solution tailored to diverse manufacturing sectors, offering reliable performance in:
Aerospace Component Manufacturing: Ideal for machining turbine blades, engine casings, and structural parts, the flat rotary machine handles complex contours and tight tolerances required for aerospace standards . Its high load capacity supports large workpieces, while precision indexing ensures consistent results for critical components.
Automotive Production: Streamlines the manufacturing of transmission housings, gear casings, and engine blocks by enabling multi-surface machining in a single setup . The flat rotary machine accelerates mass production cycles, helping automotive suppliers meet high-demand schedules without sacrificing quality.
Mold and Die Making: Excels in creating intricate molds, spiral grooves, and 3D surfaces with smooth finishes . Its high precision and stability eliminate the need for multiple re-clampings, reducing errors and shortening lead times for mold production .
Hardware and Precision Components: Perfect for polishing, deburring, and finishing metal parts such as faucets, valves, and decorative hardware . The flat rotary machine’s multi-station capability allows simultaneous processing of multiple workpieces, enhancing productivity for hardware manufacturers.
Electronic Equipment Manufacturing: Supports the production of small, high-precision parts like connectors, sensors, and circuit board components. Its compact design and precise motion control make it suitable for tight workspace environments.
Jinan Chentuo CNC Equipment Co., Ltd. combines decades of CNC expertise with a commitment to innovation, ensuring our flat rotary machine meets the highest industry standards. Each unit undergoes rigorous testing—including 4000+ hours of operational validation—to guarantee reliability in real-world manufacturing settings . Our dedicated technical support team provides comprehensive assistance, from installation and training to ongoing maintenance, ensuring your flat rotary machine delivers optimal performance for years to come.
For B2B clients seeking a competitive edge in machining, the flat rotary machine is more than equipment—it’s a strategic investment in productivity, precision, and long-term profitability. Experience the difference of a CNC solution engineered with your success in mind.
