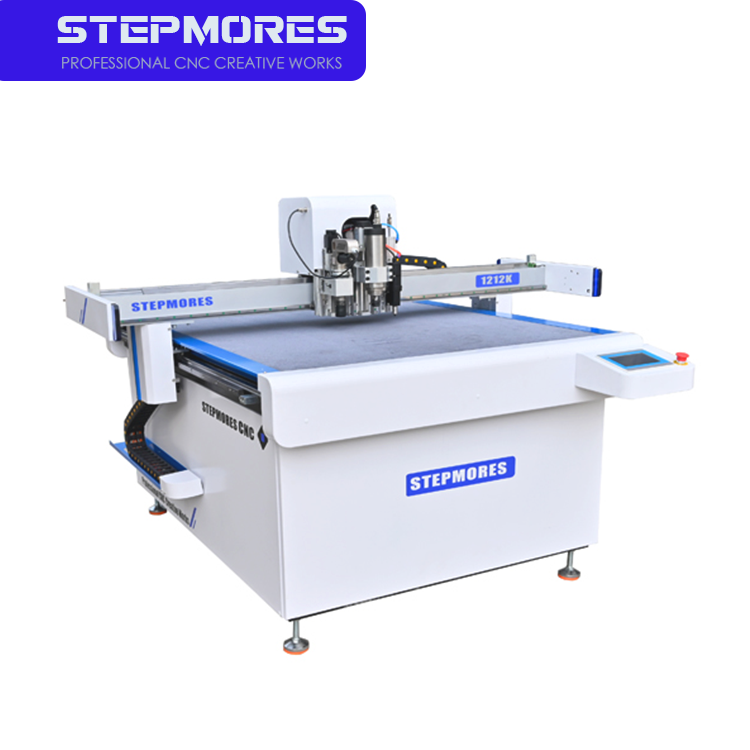

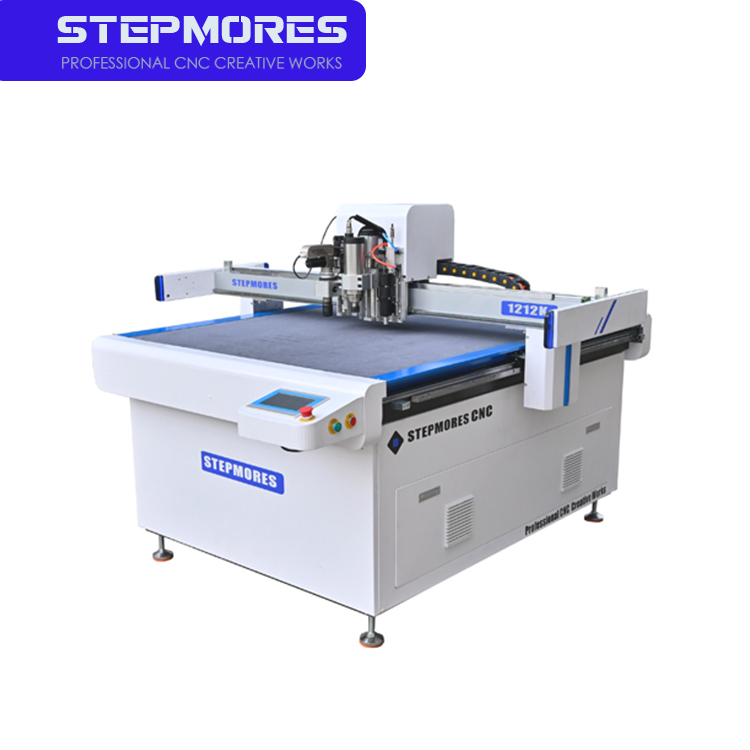

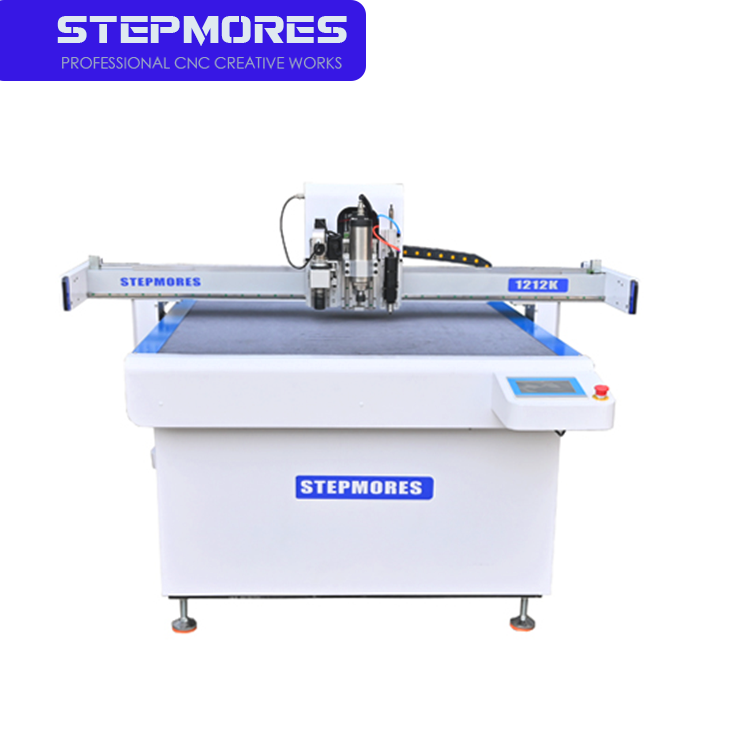

CNC Knife+Spindle+Punching Tool: All-in-One Multi-Function CNC Solution for Versatile Processing

About Jinan Chentuo CNC Equipment Co., Ltd.

Jinan Chentuo CNC Equipment Co., Ltd. is a pioneer in engineering integrated CNC solutions, with over 16 years of expertise in delivering high-quality, multi-purpose machinery to B2B clients globally. Our CNC Knife+Spindle+Punching Tool stands as a game-changer in the multi-function category, combining three core processing capabilities—oscillating knife cutting, spindle engraving/milling, and precision punching—into a single, space-saving system. Designed to eliminate the need for multiple standalone machines, this solution streamlines workflows, cuts operational costs, and expands your service capabilities. Whether you’re a job shop handling diverse orders or a manufacturer scaling production, the CNC Knife+Spindle+Punching Tool delivers the flexibility and performance to meet evolving industry demands.

Core Features of the CNC Knife+Spindle+Punching Tool

The CNC Knife+Spindle+Punching Tool is engineered with synergetic features that maximize versatility and efficiency:

• Triple-Function Integration: At its core, the CNC Knife+Spindle+Punching Tool combines a high-frequency oscillating knife (up to 4500 oscillations/min for soft materials), a 2.2kW water-cooled spindle (0-24000 RPM for engraving/milling hard substrates), and a pneumatic punching tool (up to 5mm punch diameter for holes and notches)—all controlled via a single interface for seamless task switching.

• Spacious, Adaptable Work Area: With a table size of 1300×2500mm and XYZ axis travel of 1300×2500×200mm, the system accommodates both large sheets and small workpieces, while a 200mm feeding height supports thick materials like foam boards or aluminum sheets.

• Precision Control System: Equipped with a Ruida RDC6445G control system and servo motors, the CNC Knife+Spindle+Punching Tool ensures repeatability of ±0.05mm across all functions. The intuitive touchscreen simplifies programming, and support for AI, DXF, and G-code files lets you import designs directly from popular software.

• Dual Workholding Options: A vacuum absorption table secures soft materials (fabric, PVC) during cutting, while T-slot clamping brackets hold hard substrates (acrylic, aluminum) in place for engraving or punching—eliminating slippage and ensuring consistent results.

• Durable, Low-Maintenance Build: Square linear rails on all axes and a heavy-duty steel frame (1800kg net weight) guarantee stability during high-speed operations, while modular components (easily replaceable knife blades, spindle bits) reduce maintenance time and costs.

Key Advantages of the CNC Knife+Spindle+Punching Tool

Investing in the CNC Knife+Spindle+Punching Tool delivers transformative benefits for B2B operations:

• Reduced Equipment Costs: By replacing three separate machines (oscillating knife cutter, CNC router, punching press) with one integrated system, the CNC Knife+Spindle+Punching Tool cuts upfront capital expenditure by up to 40% and saves valuable floor space.

• Faster Workflow Turnaround: Seamless switching between cutting, engraving, and punching eliminates the need to transfer workpieces between machines, reducing setup time by 50% and enabling faster order fulfillment.

• Broad Material Versatility: From soft substrates (leather, foam, cardboard) to hard materials (acrylic, aluminum, MDF), the CNC Knife+Spindle+Punching Tool handles diverse materials—letting you take on a wider range of client orders without specialized equipment.

• Consistent Quality Across Functions: The unified control system ensures precision is maintained whether you’re cutting fabric, engraving logos, or punching holes—minimizing scrap rates (below 2%) and reducing the need for post-processing.

• Scalability for Growing Businesses: As your client base expands, the CNC Knife+Spindle+Punching Tool adapts—supporting small-batch custom jobs (e.g., personalized signs) and high-volume production (e.g., packaging components) equally well.

Applications of the CNC Knife+Spindle+Punching Tool

The CNC Knife+Spindle+Punching Tool excels across industries, thanks to its multi-function design:

• Advertising & Signage: Cut PVC banners, engrave acrylic lettering, and punch mounting holes in metal signs—all in one setup. The system’s precision ensures crisp, professional results for retail displays or outdoor signage.

• Packaging Manufacturing: Cut custom carton boxes, engrave brand logos on foam inserts, and punch ventilation holes in plastic packaging—streamlining the production of tailored packaging solutions for e-commerce or industrial clients.

• Furniture & Interior Design: Cut fabric for upholstery, engrave decorative patterns on MDF panels, and punch assembly holes in wooden furniture components—reducing the need for multiple workshop tools.

• Automotive Aftermarket: Cut foam padding for car interiors, engrave serial numbers on plastic parts, and punch mounting holes in aluminum trim—meeting the precision demands of automotive clients.

• Promotional Products: Create personalized items like engraved keychains (spindle), cut fabric patches (knife), and punch holes in cardboard gift boxes (punching tool)—ideal for businesses serving corporate gifting or retail markets.

• Electronics Manufacturing: Cut rubber gaskets for devices, engrave circuit board outlines, and punch wire holes in plastic enclosures—supporting small-batch prototyping and large-volume production alike.

Why Choose Jinan Chentuo’s CNC Knife+Spindle+Punching Tool?

For B2B clients seeking to optimize efficiency and expand capabilities, the CNC Knife+Spindle+Punching Tool is a strategic investment. Its all-in-one design addresses the pain points of fragmented workflows and high equipment costs, while Jinan Chentuo’s commitment to quality ensures long-term reliability. Backed by our after-sales support—including free remote technical assistance, on-site training (at low cost), and global spare parts delivery—the CNC Knife+Spindle+Punching Tool is more than a machine: it’s a partner that helps you stay competitive in dynamic markets. Whether you’re looking to diversify services, reduce operational overhead, or speed up production, this multi-function system is engineered to grow with your business and deliver consistent value.
