1530RSR-ATC 5 Axis CNC: Precision Machining Redefined for Industrial Excellence

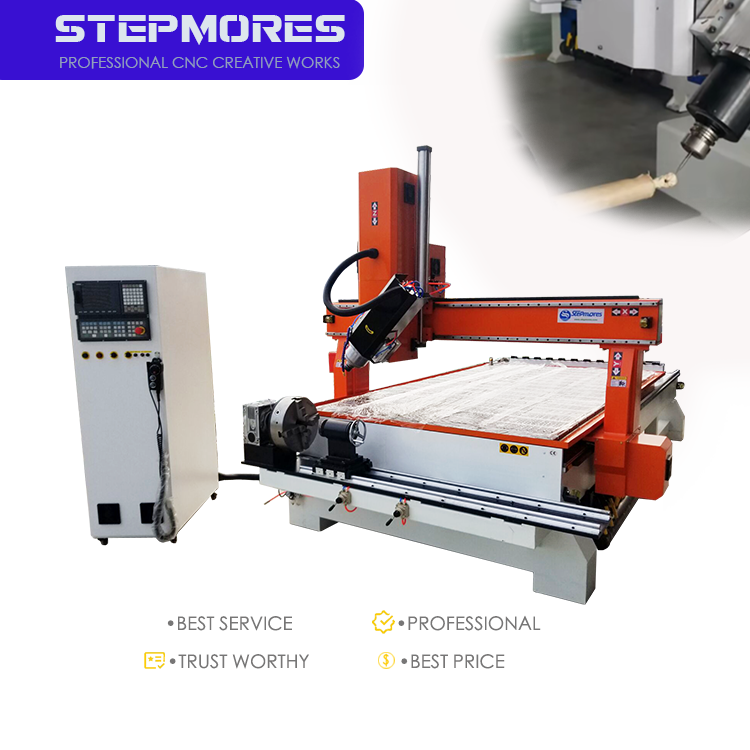

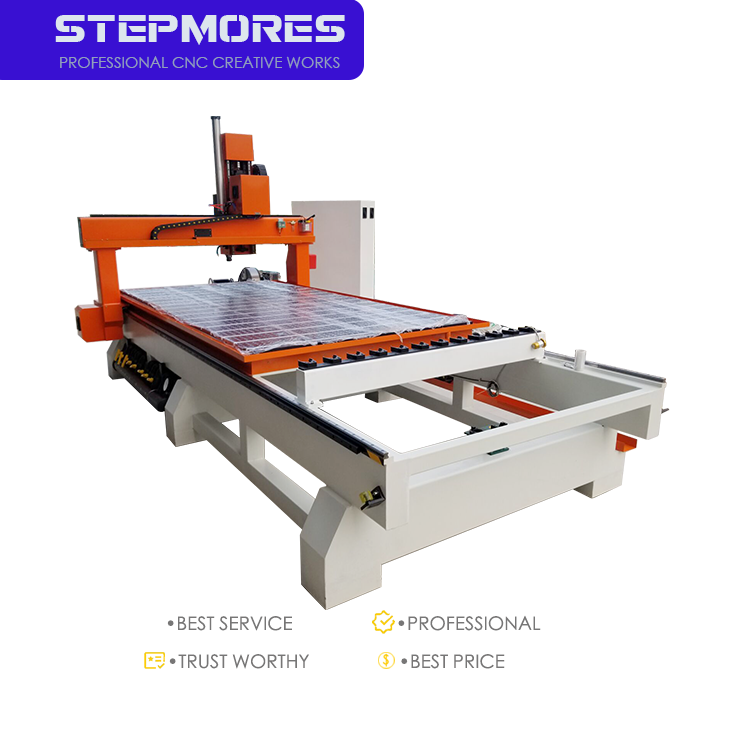

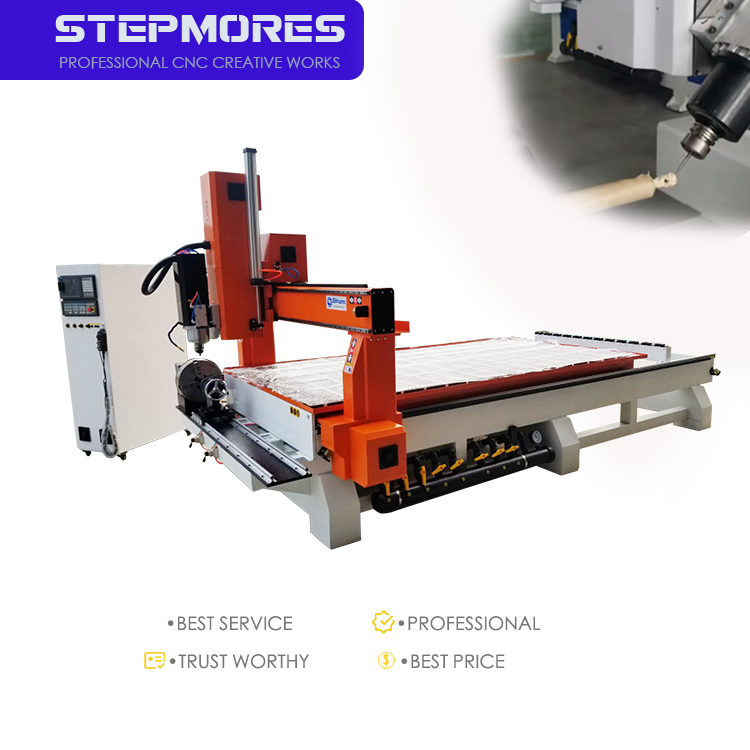

Introduction to the 1530RSR-ATC 5 Axis CNC

Crafted by Jinan chentuo cnc equipment co.,ltd, the 1530RSR-ATC stands as a pinnacle of 5 Axis CNC technology, engineered to transform complex manufacturing challenges into seamless production realities. This advanced machining solution integrates cutting-edge mechanics, intelligent controls, and robust construction to deliver unmatched performance across diverse industrial applications. Whether handling high-volume production runs or intricate custom components, the 1530RSR-ATC redefines efficiency, precision, and reliability for modern manufacturing facilities. As a flagship model in our 5 Axis CNC lineup, it embodies our commitment to empowering businesses with tools that drive productivity and profitability.

Core Features of the 1530RSR-ATC 5 Axis CNC

The 1530RSR-ATC 5 Axis CNC is distinguished by a suite of features that set it apart in the competitive machining landscape. At its core, the machine boasts simultaneous 5-axis movement—combining X, Y, Z linear axes with two rotational axes (A and C)—enabling multi-sided machining in a single setup . This capability eliminates the need for repeated re-fixturing, reducing human error and streamlining production workflows. Equipped with an automatic tool changer (ATC) and a linear-type tool magazine, the 1530RSR-ATC ensures rapid tool swaps, minimizing downtime and maximizing spindle uptime for continuous operation.

A standout feature of the 1530RSR-ATC is its advanced RTCP (Rotational Tool Center Point) technology, which maintains constant tool-workpiece contact regardless of rotational movements . This ensures precise cutting paths even for complex curved surfaces, delivering consistent part quality with tolerances as tight as ±0.03 mm. The machine’s robust frame undergoes quenching treatment for enhanced stability, while Taiwanese linear guides and a Japanese SHL MPO reducer contribute to smooth, vibration-free operation . Additionally, the 1530RSR-ATC features an automatic lubrication system and tool calibration sensor, further optimizing performance and reducing maintenance requirements.

Key Advantages of the 1530RSR-ATC 5 Axis CNC

Investing in the 1530RSR-ATC 5 Axis CNC translates to tangible business benefits that drive competitive advantage. One of the most significant advantages is its ability to reduce production time by up to 40% compared to traditional 3-axis machines . By enabling complete part machining in one setup, the 1530RSR-ATC eliminates redundant steps, shortens cycle times, and boosts overall throughput. This efficiency gain directly lowers labor costs and accelerates time-to-market for critical components.

Precision is another cornerstone advantage of the 1530RSR-ATC. Its advanced control system, compatible with Taiwanese Syntec or LNC controllers, incorporates 3D workpiece error correction and tool center point control . These technologies ensure consistent accuracy across production runs, reducing scrap rates and material waste. The machine’s versatility is equally impressive—capable of handling a wide range of materials, including metals, composites, plastics, wood, and stone . This flexibility allows manufacturers to expand their service offerings and adapt to changing market demands without investing in multiple specialized machines.

Durability and low total cost of ownership further solidify the 1530RSR-ATC’s value proposition. Its heavy-duty construction and high-quality components, such as the 9KW air-cooled spindle and German LGUS cables, ensure long-term reliability and minimal downtime . Advanced cutting path optimization algorithms extend tool life, reducing consumable costs and improving operational efficiency . For B2B clients, these advantages translate to higher profitability, improved customer satisfaction, and a stronger market position.

Industrial Applications of the 1530RSR-ATC 5 Axis CNC

The 1530RSR-ATC 5 Axis CNC’s versatility makes it an indispensable tool across numerous industries, delivering exceptional results for diverse machining needs:

• Aerospace and Defense: Ideal for machining complex components such as turbine blades, engine parts, and structural elements. Its 5-axis capabilities handle the intricate geometries and tight tolerances required for aerospace-grade materials like titanium and aluminum alloys .


• Automotive Manufacturing: Excels in producing custom parts, molds, and tooling for automotive applications. From engine components to interior trim pieces, the 1530RSR-ATC ensures high precision and consistency for both high-volume production and prototype development .


• Woodworking and Furniture Production: Perfect for crafting intricate designs on cabinet doors, furniture frames, and decorative elements. The ATC functionality enables seamless switching between cutting, carving, and drilling tools, enhancing productivity for custom furniture makers and woodworking shops .


• Medical Device Manufacturing: Meets the strict precision requirements for producing surgical instruments, implants, and medical equipment components. Its micron-level accuracy and ability to machine biocompatible materials make it a trusted solution in the medical industry .


• Advertising and Signage: Enables precise cutting and engraving on acrylic, PVC, foam, and metal for creating high-quality signs, logos, and promotional displays. The 1530RSR-ATC’s large work area (1500*3000 mm) accommodates oversized projects with ease .


• Mold and Die Making: Streamlines the production of complex molds and dies for plastic injection, casting, and stamping applications. Its 5-axis movement eliminates the need for multiple setups, reducing lead times and improving mold quality .


• Architectural and Construction: Used for machining decorative stone elements, building facades, and custom architectural components. From marble carvings to metal fixtures, the 1530RSR-ATC delivers precise, detailed results for architectural projects .

Why Choose the 1530RSR-ATC 5 Axis CNC from Jinan Chentuo?

Jinan chentuo cnc equipment co.,ltd brings decades of expertise in CNC manufacturing to the 1530RSR-ATC, ensuring a product that meets the highest industry standards. Our commitment to quality is reflected in every component, from the machine’s robust frame to its advanced control system. As a B2B-focused manufacturer, we understand the unique needs of industrial clients, offering customizable solutions to match specific production requirements—including optional work area extensions and spindle configurations .

The 1530RSR-ATC 5 Axis CNC is more than just a machining tool; it’s a strategic investment in your business’s future. Its combination of precision, efficiency, and versatility empowers you to take on new projects, reduce costs, and stay ahead of the competition. Backed by our comprehensive after-sales support and technical expertise, the 1530RSR-ATC ensures reliable performance and maximum return on investment for years to come. For manufacturers seeking to elevate their machining capabilities, the 1530RSR-ATC 5 Axis CNC is the ultimate solution.
