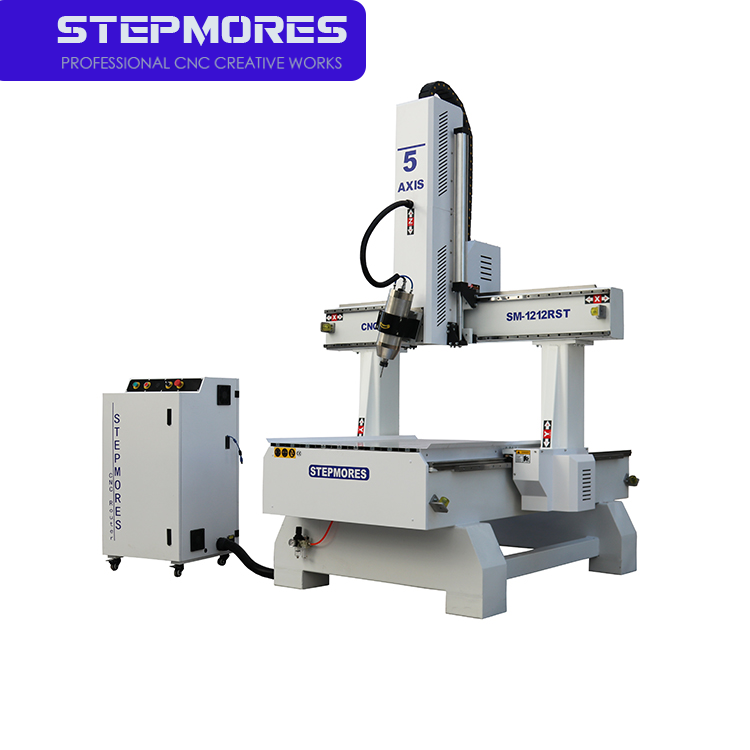

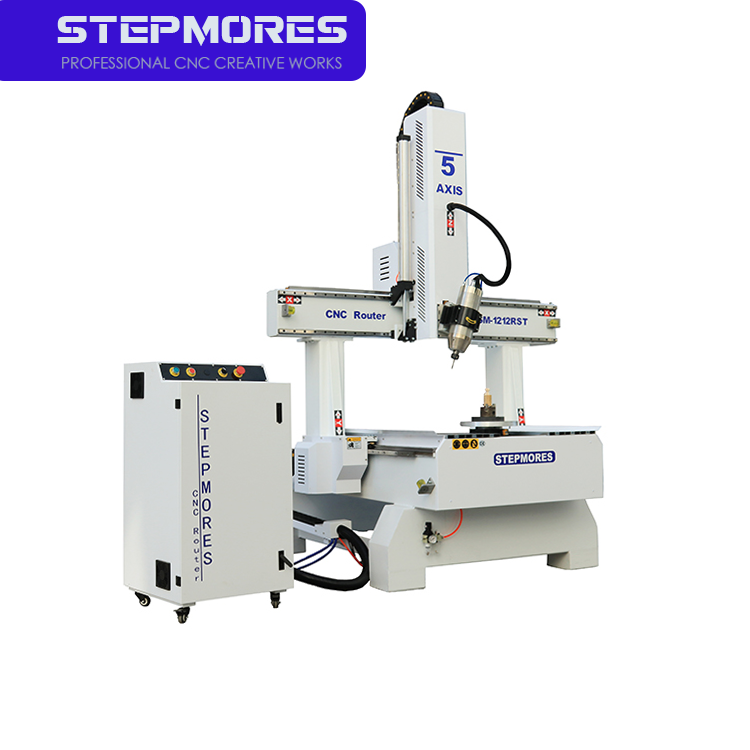

1212 Rotary spindle+rotary table: High-Precision 5 Axis CNC Router for Versatile Industrial Machining

Introducing the 1212 Rotary spindle+rotary table from Jinan Chentuo CNC Equipment Co., Ltd

For manufacturers navigating the demands of modern production—where precision, speed, and adaptability are non-negotiable—Jinan Chentuo CNC Equipment Co., Ltd’s 1212 Rotary spindle+rotary table 5 Axis CNC Router emerges as a transformative solution. Engineered to reimagine complex machining workflows, this system eliminates the inefficiencies of repeated part clamping, a common pain point in traditional 3-axis setups. By integrating dual rotary capabilities (spindle and table) into a robust, user-centric design, the 1212 Rotary spindle+rotary table lets operators complete multi-angle, 3D-contoured projects in a single run—turning once time-consuming tasks into streamlined, high-quality processes. Whether you’re a small workshop scaling production or a large facility optimizing for tight tolerances, the 1212 Rotary spindle+rotary table delivers the consistency and performance to elevate your output.

Core Features of the 1212 Rotary spindle+rotary table

Every component of the 1212 Rotary spindle+rotary table is selected to balance power, precision, and durability:

• Expansive Work Envelope: With XYZ axis travel distances of 1200×1200×500mm, a 500mm feeding height, and a 1200*1200mm main table, this machine accommodates large workpieces (e.g., full-size cabinet panels) and bulky assemblies without compromising access to any surface.

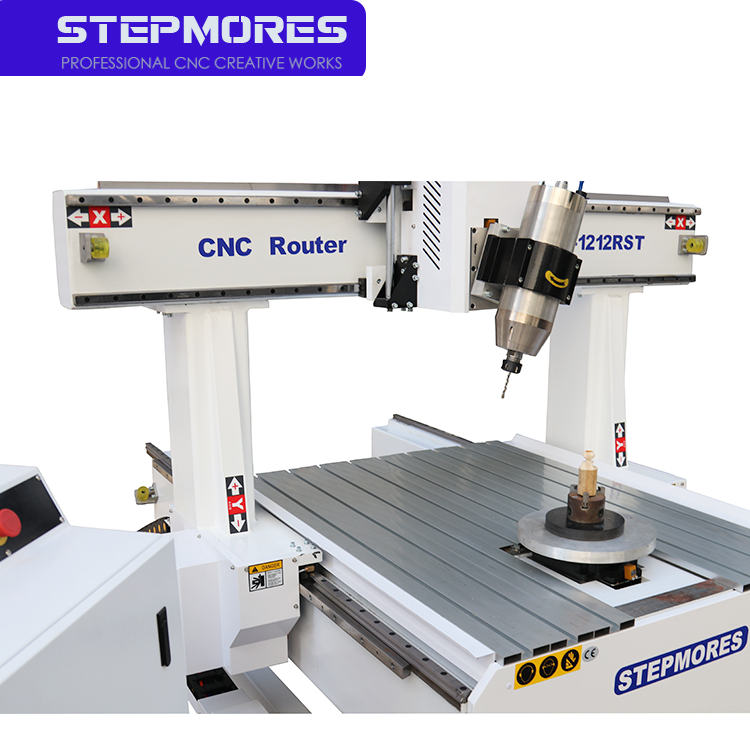

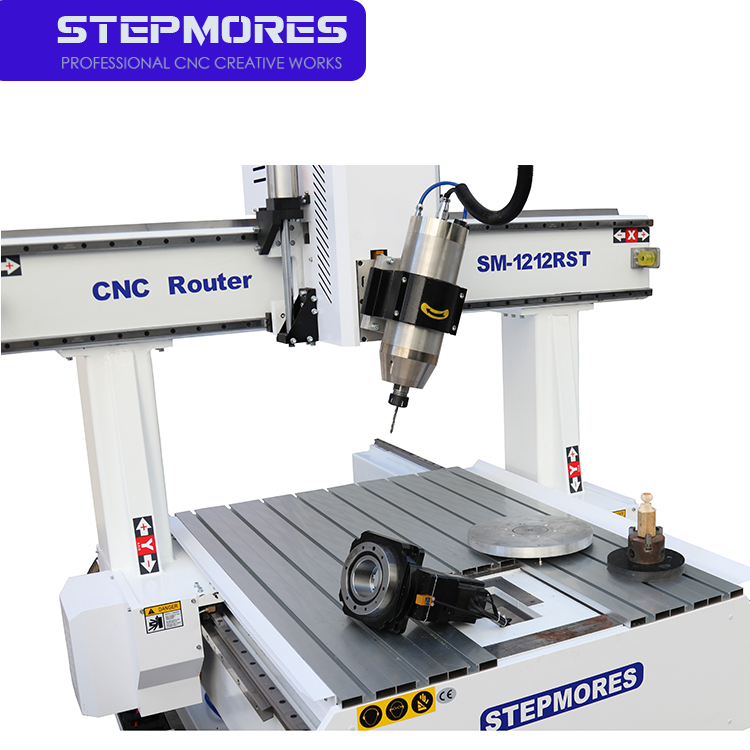

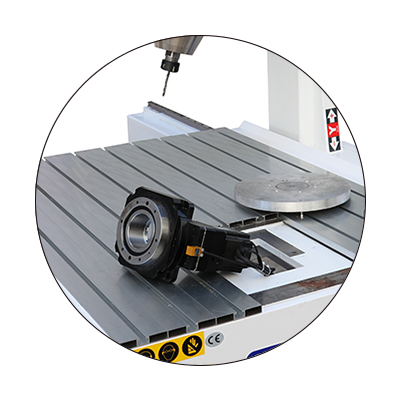

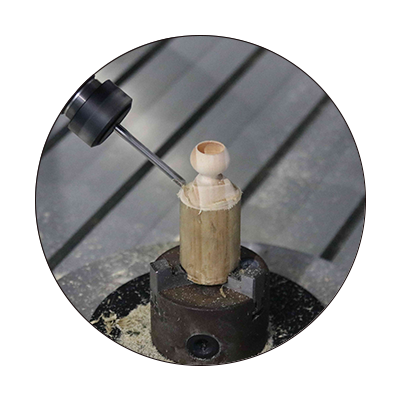

• Dual Rotary Flexibility: The ±90° rotary spindle (paired with a 300×300mm rotary table) enables full 5-axis motion, meaning you can machine undercuts, compound curves, and intricate 3D geometries that would require multiple setups on standard routers. This design ensures every angle of the part is accessible without repositioning.

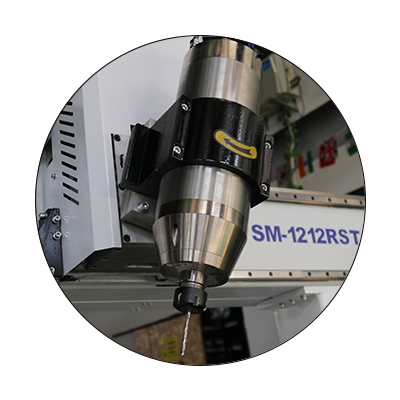

• High-Performance Spindle: The 3kW water-cooling spindle (rated for 24000rpm) maintains consistent temperature even during long production runs, preventing thermal expansion that can degrade precision. Its high rotational speed delivers clean, sharp cuts—whether you’re milling soft wood, rigid plastics, or lightweight metals.

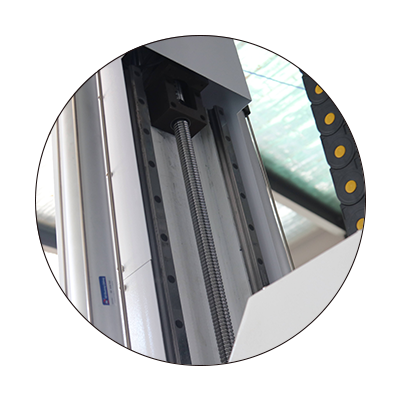

• Precision-Driven Motion System: Linear rails reduce friction for smooth, stable movement; Japanese servo motors (paired with Shimpo reducers) offer exceptional torque and positioning accuracy; XY high-precision gear racks (and a Z-axis ball screw) minimize backlash, ensuring every movement translates to exact cuts. The aluminum profile T-slot clamping table adds versatility, letting you secure parts of varying shapes, sizes, and materials (from thin sheets to thick blocks) with minimal setup time.

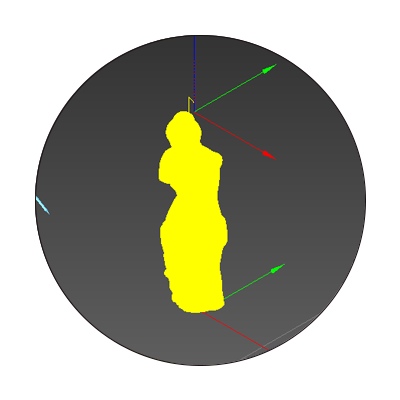

• Intuitive Control & Compatibility: The 5-axis controller includes RTCP (Rotation Tool Center Point) functionality, which automatically adjusts tool paths as the spindle or table rotates—eliminating the need for manual offset calculations. It’s also compatible with industry-standard software (Type3, Artcam, UG, Pro-E, Mastercam, Ucancam) so your team can use familiar design tools without retraining.

Key Advantages of the 1212 Rotary spindle+rotary table

Investing in the 1212 Rotary spindle+rotary table delivers measurable improvements to your operation:

• Elevated Precision & Speed: Boasting 0.05mm working precision (critical for tight-tolerance parts) and a 50000mm/min max travel speed, the 1212 Rotary spindle+rotary table cuts cycle times by 30-40% compared to 3-axis alternatives. For high-volume projects (e.g., batch-produced automotive trim), this translates to faster turnaround and higher daily output.

• Unmatched Material Versatility: Unlike specialized machines that are limited to one material type, the 1212 Rotary spindle+rotary table handles wood, MDF, acrylic, foam, PVC, aluminum, and composite materials with equal efficiency. This adaptability lets you take on diverse client requests—from custom furniture carvings to prototype metal brackets—without investing in multiple tools.

• Reduced Labor & Waste: By eliminating repeated clamping, the 1212 Rotary spindle+rotary table cuts labor hours spent on setup and alignment. It also reduces material waste caused by misaligned repositioning—especially valuable for high-cost materials like aluminum or carbon fiber.

• Long-Term Reliability: Built with a heavy-duty frame (net weight 1300kg, gross weight 1500kg), this machine is designed to withstand continuous industrial use. Its water-cooled spindle, sealed linear rails, and high-quality servo components minimize maintenance needs, so you spend less time on repairs and more time producing.

• Space-Efficient Design: With a compact machine size (2030×2160×2850mm) and a footprint optimized for workshop layouts, the 1212 Rotary spindle+rotary table fits into small to mid-sized facilities without sacrificing performance—a key benefit for operations working with limited floor space.

Applications of the 1212 Rotary spindle+rotary table

The 1212 Rotary spindle+rotary table excels across a wide range of industrial and commercial use cases:

• Furniture & Joinery: Creates intricate decorative carvings (e.g., chair legs, cabinet doors), curved edges for modern tables, and custom joinery (dovetails, mortises) that would be labor-intensive to produce by hand.

• Advertising & Signage: Produces 3D acrylic letters with sharp bevels, foam sculptures for trade show displays, and metal signs with detailed engravings—all with the smooth finishes that attract high-end clients.

• Automotive & Aerospace Prototyping: Machines lightweight alloy components (e.g., interior trim panels, small structural brackets) with the precision required for prototype testing, reducing the time to move from design to physical part.

• Custom Product Manufacturing: Rapidly produces one-off or small-batch parts, from plastic enclosures for electronic devices to metal fixtures for industrial equipment—ideal for businesses serving niche markets.

• Musical Instrument Production: Crafts complex curved surfaces (e.g., guitar bodies, violin scrolls, drum shell contours) with consistent accuracy, ensuring every instrument meets the exacting standards of luthiers and musicians.

Jinan Chentuo CNC Equipment Co., Ltd’s 1212 Rotary spindle+rotary table isn’t just a machine—it’s a solution for manufacturers looking to stay competitive in a fast-paced industry. Its blend of 5-axis flexibility, precision engineering, and material versatility makes it an indispensable tool for scaling production, reducing costs, and delivering superior quality. Whether you’re expanding your service offerings or optimizing existing workflows, the 1212 Rotary spindle+rotary table is engineered to meet—and exceed—your industrial machining needs.
