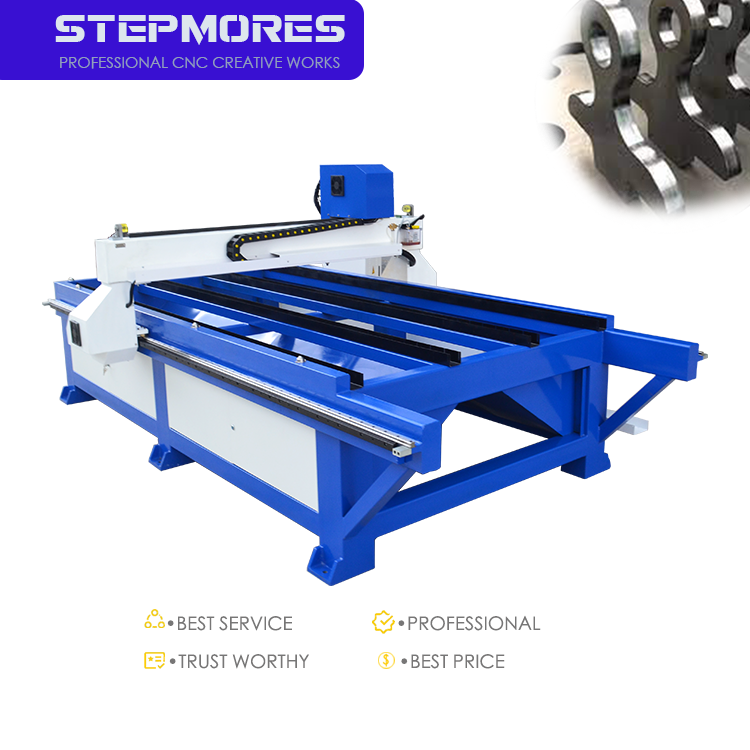

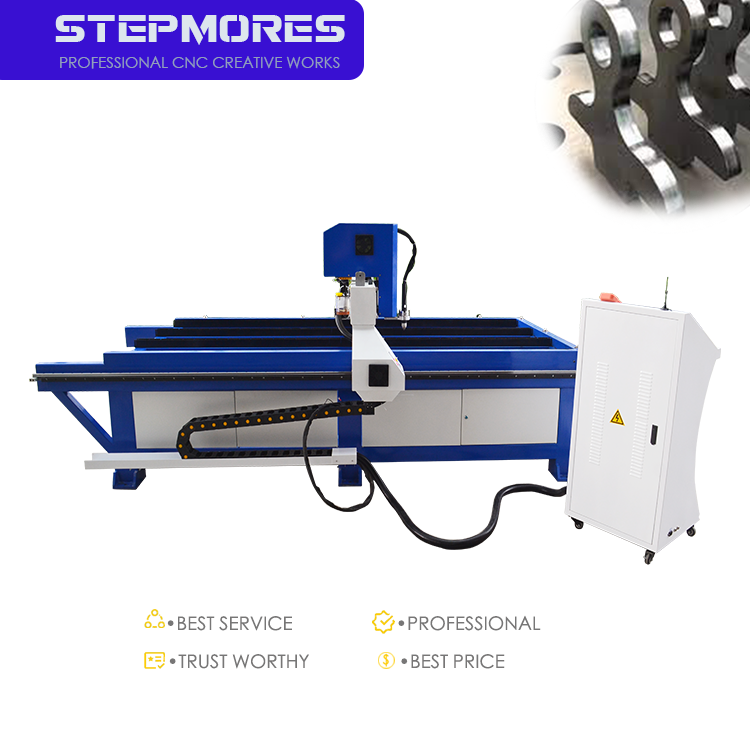

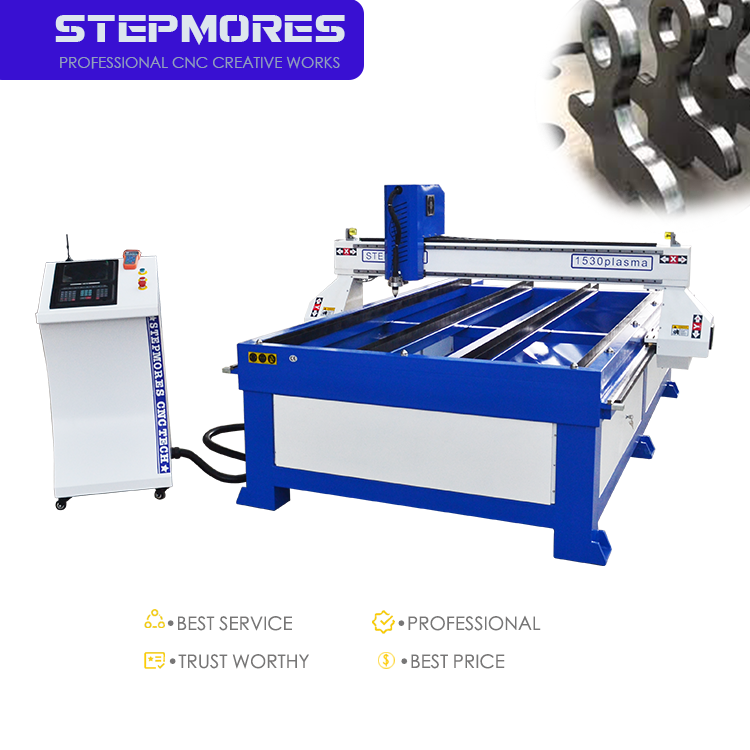

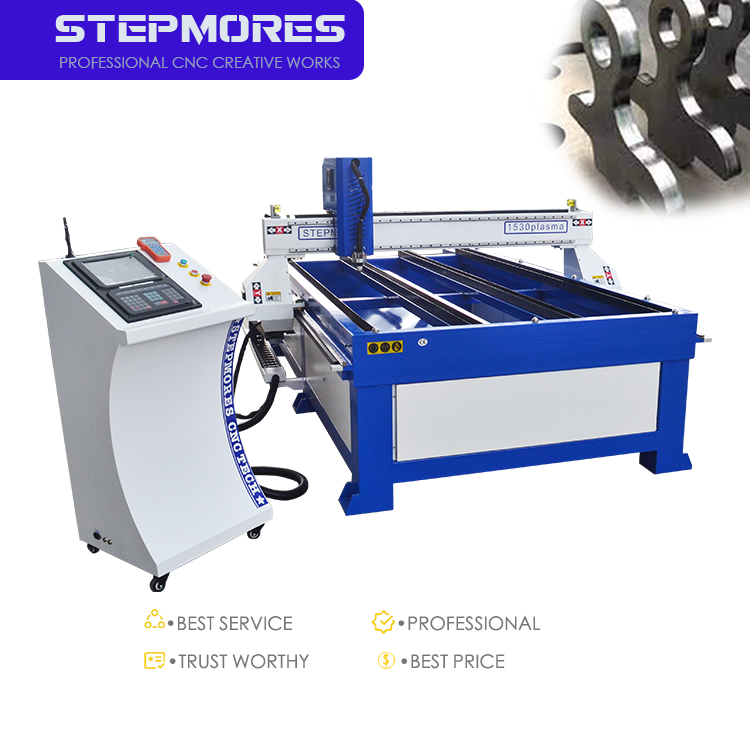

CNC Plasama 1325

Features:

1. Solve power attenuation and meet 7*24 hours of work.

2. The output beam quality is good and the reliability is high.

3. Super long serving life, energy saving.

4. Compatible with the rack of fiber laser marking machine

5. Beijing JCZ board card and EZCAD2 software, F-Theta lens

Model	1325 Plasma
Working area	1300*2500mm
Plasma Generator	100A/120A/160A/200A
Control system	FL2300 ( with Automatic torch height adjust)
Rail type	Linear rails
Drive type	Stepper motor
Transmit	XY gear rack, Z ballscrew
Table	Blade table
Interface	USB port
Cutting thickness	Steel max 20mm , Aluminum max 10mm
Cutting speed	0-8m/min
Moving speed	0-50m/min
Lubrication system	Yes
Machine structure	thick steel tube welding
command code	G code
Machine size	300020601400mm
packing size	315022101610mm
Net/Gross weight	1000kg / 1200kg

Details

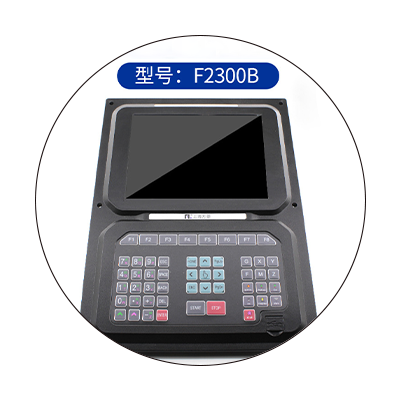

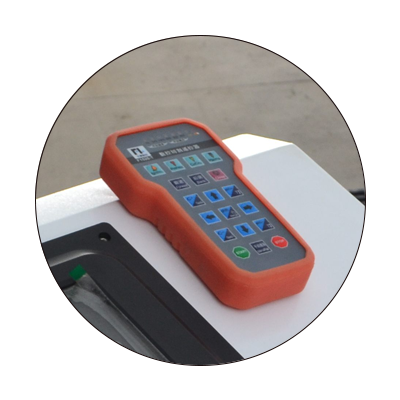

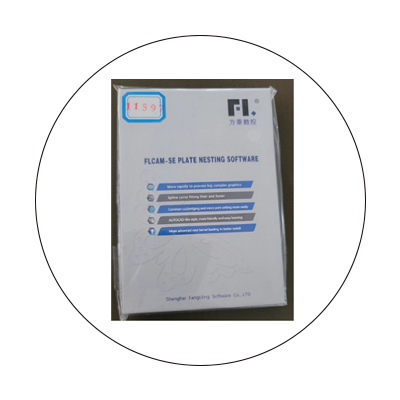

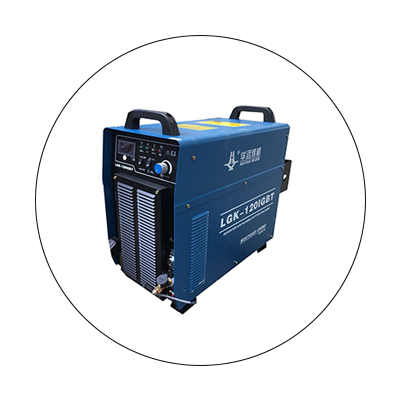

F2300B control system Most famous brand in CNC Plasma cutting market	Remote control Can help user control machine move and work easily	FLCAM software to create cutting path	Huayuan power 100A/120A/160A/200A options

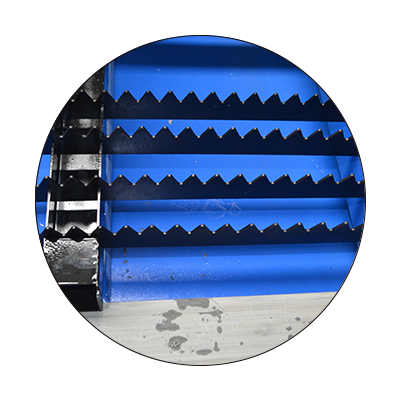

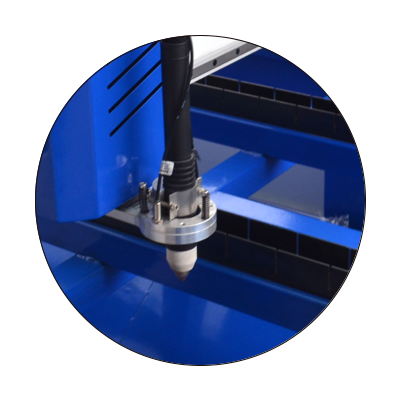

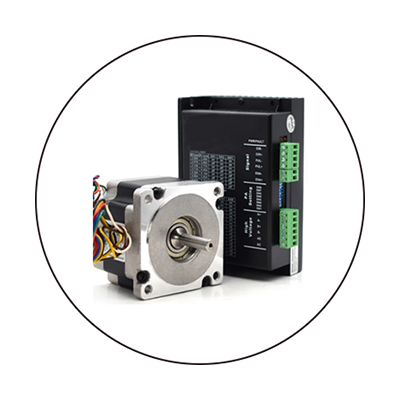

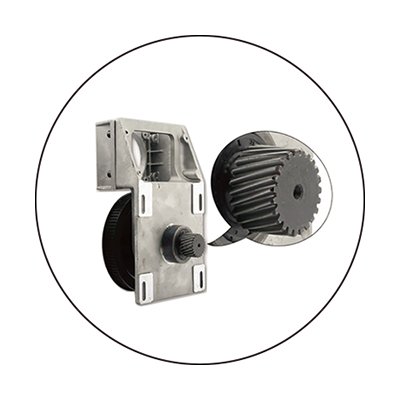

Professional plasma cutting gun	Blade table Design for metal cutting	Stepper motor and driver low noise/vibration output current automatically halve to reduce motor heat.	Belt gear box Has 1:5 ratio reducer function,let motor has more torque performance

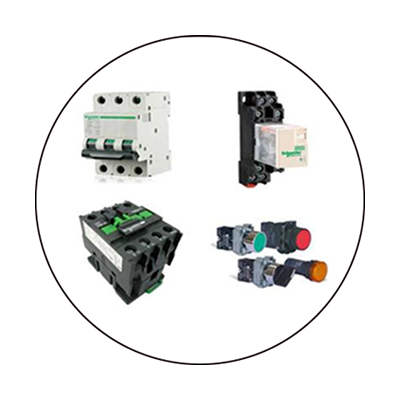

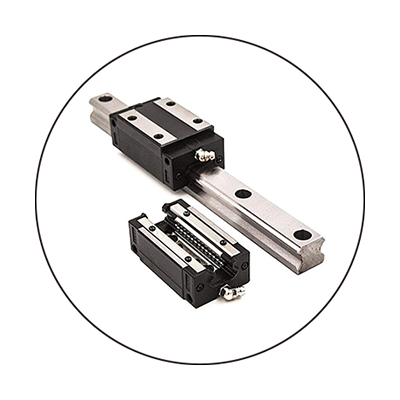

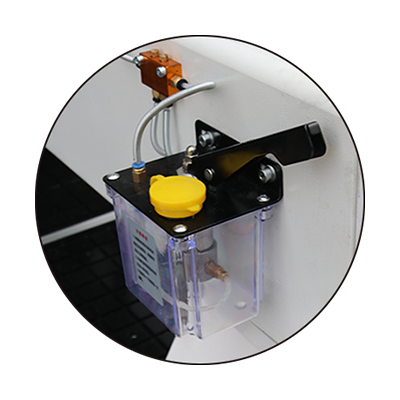

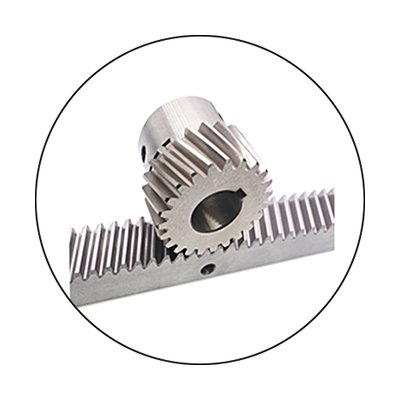

Helical tooth rack on XY axis Helical Gear is featured as much lower noise and more steady meshing.	Linear square guide ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter	Central Lubricator Central Lubricator: Easier to lubricate the Guide units regularly,just pull it gently and oil will go when it is needed.	Schneider electrical part Well-know brand schneider Every details parts we choose top quality to confirm the machine steady and safe.
