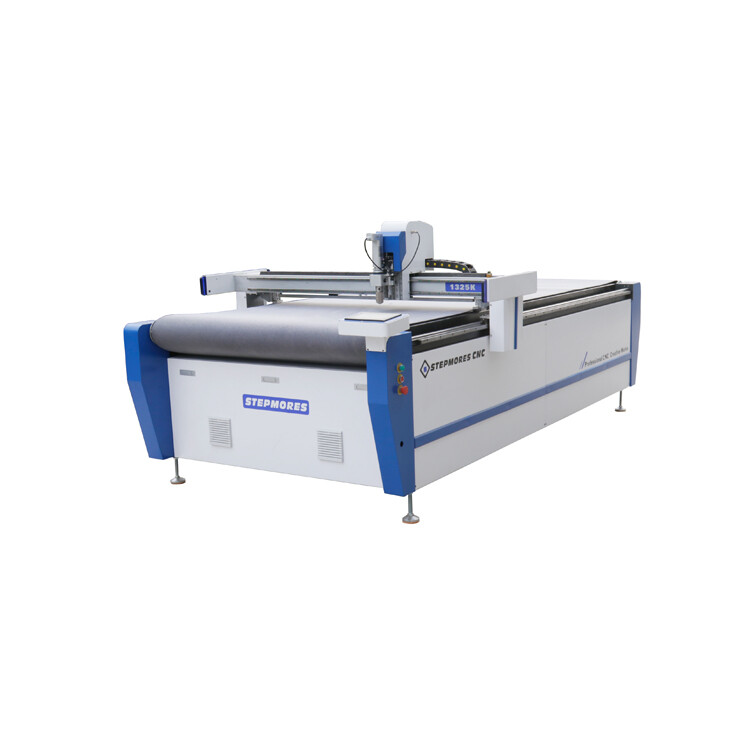

Rotary knife

  • Rotary knife
  • Rotary knife

Rotary knife

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model6090121213251625
XYZ axis travel  600x900mm1200x1200mm1300x2500mm1600x2500mm
Max cutting thickness≤50mm
FunctionDriven rotary tool
Control systemRuida
Drive typeServo motor
Table typeBig thickness felt wtih vacuum absorption table
TransmitGear rack
Rail typeSquare rail
Cutting speed0-50mm/min（cutting speed depends on material thickness. Hardness ,density）
Applied materialsPU leather,PVC，rubber，cloth，carton，and other soft material
PowerAC220V / 380v ±10% / 50~60Hz
Support formatAI、PLT、DXF、CDR etc
Machine1560*1010*1420mm1860*1610*1420mm2960*1960*1420mm3330*1990*1420mm
packing size1700*1150*1620mm2000*1750*1620mm3100*2100*1620mm3470*2130*1620mm
Net/Gross weight300kg / 400kg500kg / 600kg900kg / 1000kg1200kg / 1300kg



4 Driven rotary tool.png

Driven rotary tool


13 Ruida touch screen controller.png

 Ruida touch screen controller


11 Red cross positioning function.png

Red cross positioning function


11 Safty protection.png

Safty protection


Leadshine servo motor.png

Servo motor


linear rail.png

Square rail


shimpo reducer.png

Reducer


gear rack.png

Oblique rack


12 Vacuum table.png

Vacuum table


12 Big thickness felt.png

Big thickness felt


12 Auto feeding function.png

Auto feeding table


12 vacuum pump.png

Vacuum pump









AUTO Feeding device

  ............................................................................................................................................................................................................................................................................................


12 Auto feeding device.png
