Stone


Features

★ 5.5kw air cooling spindle

★ Heavy duty structure

★ Dust proof to avoid rusting rail and rack

★ Stainless steel connection system

★ Auxiliary loading design



Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


MODEL1325S
XYZ axis travel  1300x2500x300mm
Feeding height300mm
Table size1300*2500mm
Spindle power5.5kw water cooling(0-24000RPM)
Control systemNCWORK
Drive typeStepper motor
Rail typelinear rails
TransmitXY gear rack and Z ballscrew
Table typeHard PVC table with T slot clamping
Max travel speed20000mm/min
Working precision0.05mm
PowerAC380V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code
Machine size3130*1980*1260mm
packing size3270*2100*1400mm
Net / Gross weight1000kg / 1200kg

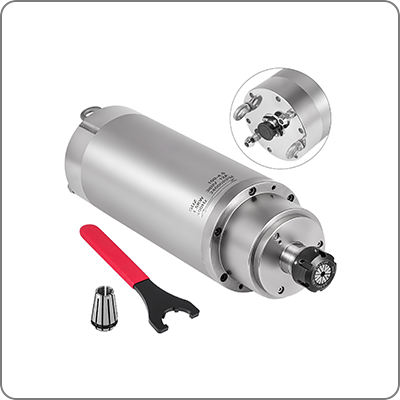

water cooling spindle.png

5.5kw water cooling spindle for stone working


FULING VFD 5.5kw.png

Inverter to control spindle speed



NCWORK controller


Tool sensor.png

Tool sensor


stepper motor.png

Stepper motor


linear rail.png

Square rails


gear rack.png

Oblique rack


gear box oblique.png

Gear box


Oiling tool.png

Oiling tool

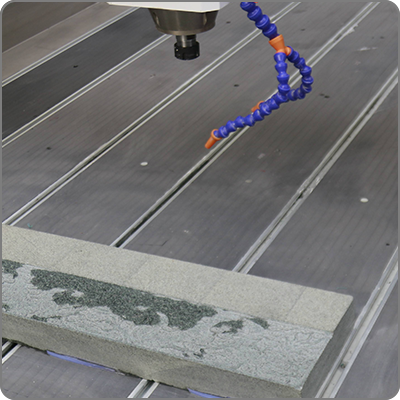

Hard PVC with embedded T slot table.png

Hard PVC with embedded T slot table

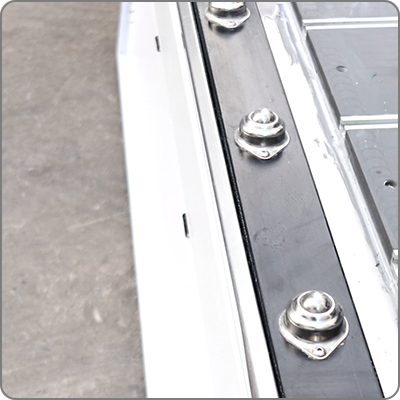

Auxiliary loading design.png

Auxiliary loading design


Stainless steel connection system.png

Stainless steel connection system

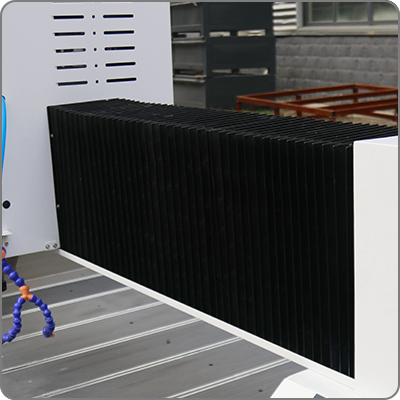

Dust proof to avoid rusting rail and rack 2.png

X Dust proof to avoid rusting rail and rack

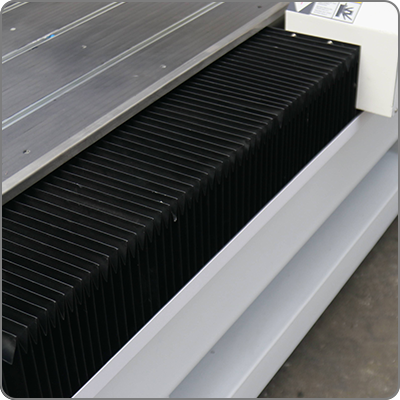

Dust proof to avoid rusting rail and rack.png

 Y Dust proof to avoid rusting rail and rack



 1



1





DSP controller


Yakao easy servo motor S3.png

Easy servo motor
