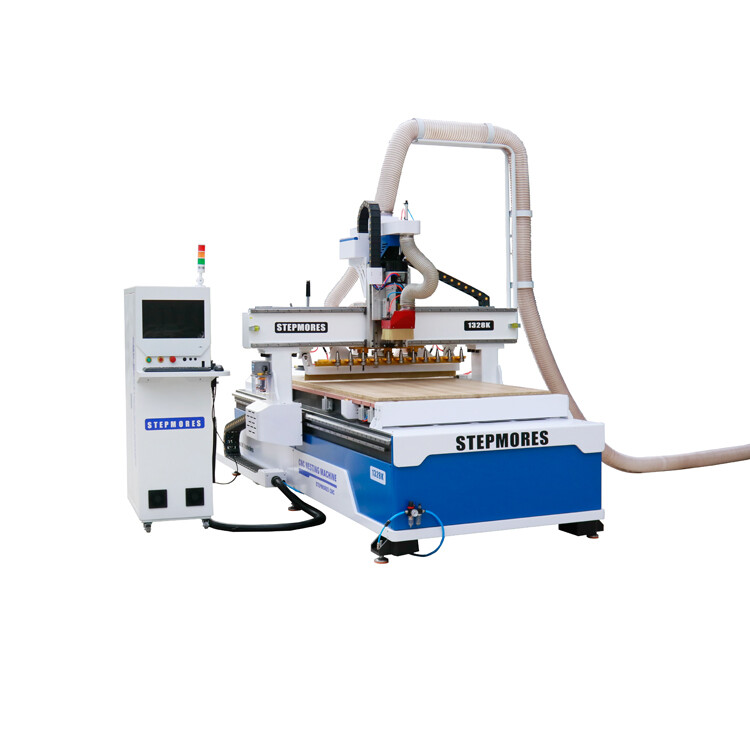

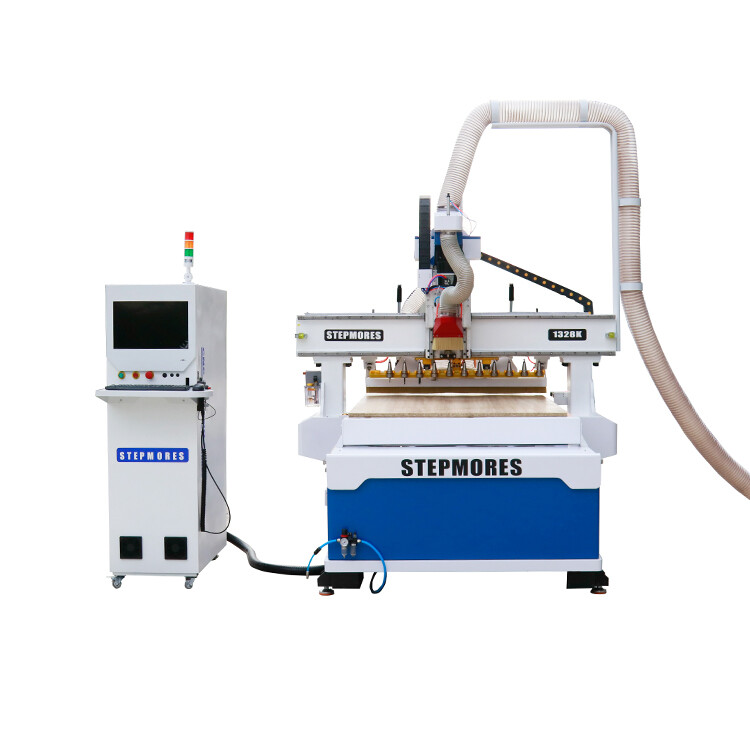

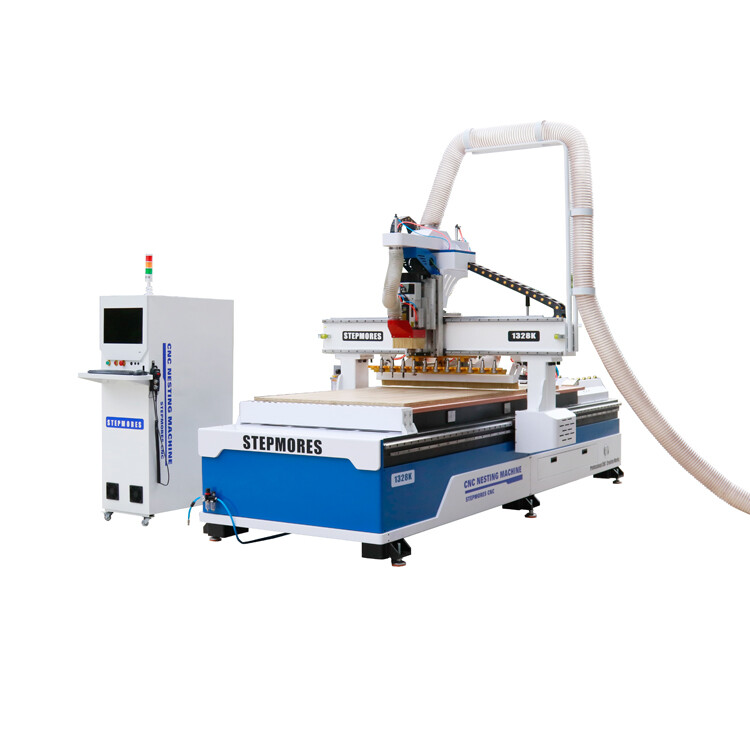

NESTING CNC

★ 9kw air cooling spindle

★ Syntech controller

★ Syntech absolute value servo motor

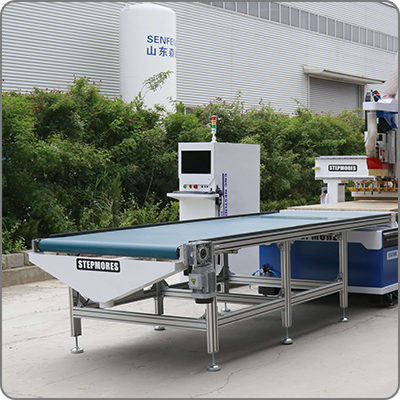

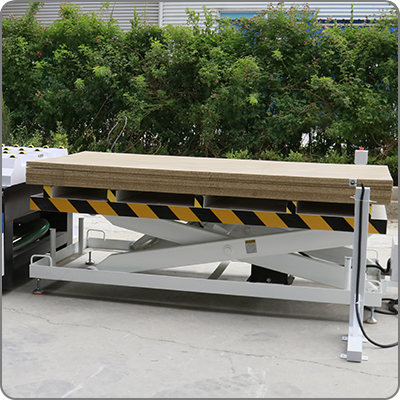

★ Auto uploading and down loading

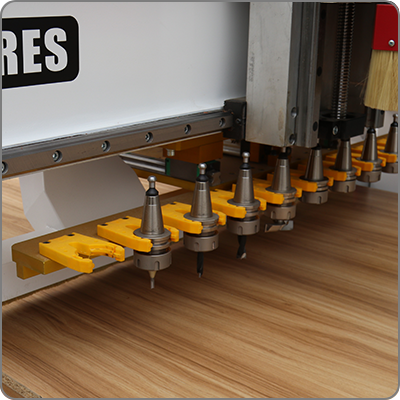

★ 12PCS tool changer under gantry



Get your shareable link

Parameter

Details

Option

Video

Dimension

FAQ

Download

Model	1328K-ATC
XYZ axis travel	1300x2800x300mm
Feeding height	100mm
ATC tool type	12 PCS linear type( under gantry）
Spindle power	9KW ATC air cooling spindle
Rail type	linear rails XYZ 30mm
Control system	Syntech controller 60CB
Drive type	Syntech servo motor (Absolute value ) + Shimpo reducer
Transmit	X Y Oblique gear rack / Z ball-screw
Table type	Vacuum absorption with T slot clamping with 7.5KW vacuum pump
Max travel speed	60000mm/min
Working precision	0.05mm
power	AC380V±10% /50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command code	G code
Machine size	405022602980mm(Height including dust tube support)
Upload unit size	24001200700mm
Download unit size	33701510810mm
packing size	420022802430mm
Net/Gross weight	2300kg/2500kg
