Mini size

  • Strong version
  • Strong version
  • Strong version
  • Strong version

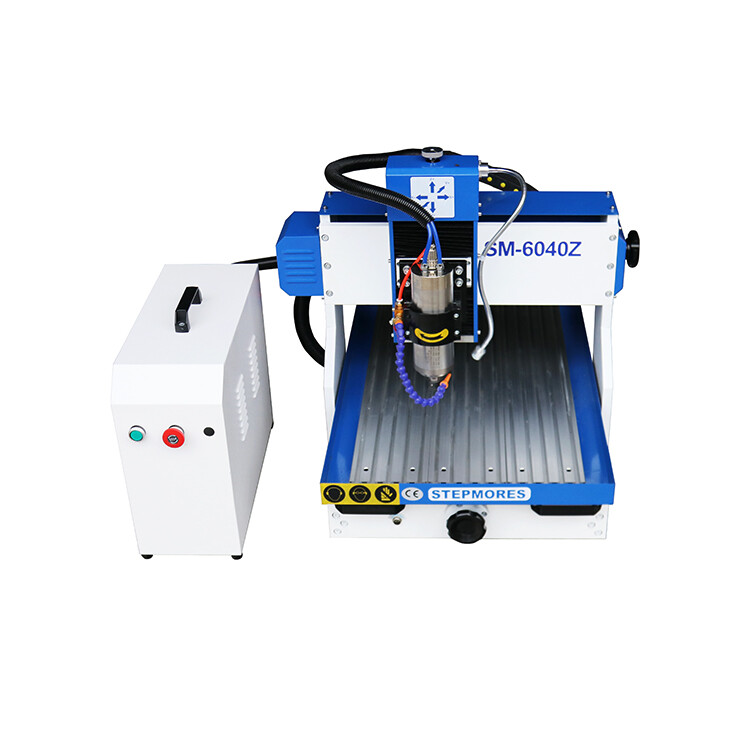

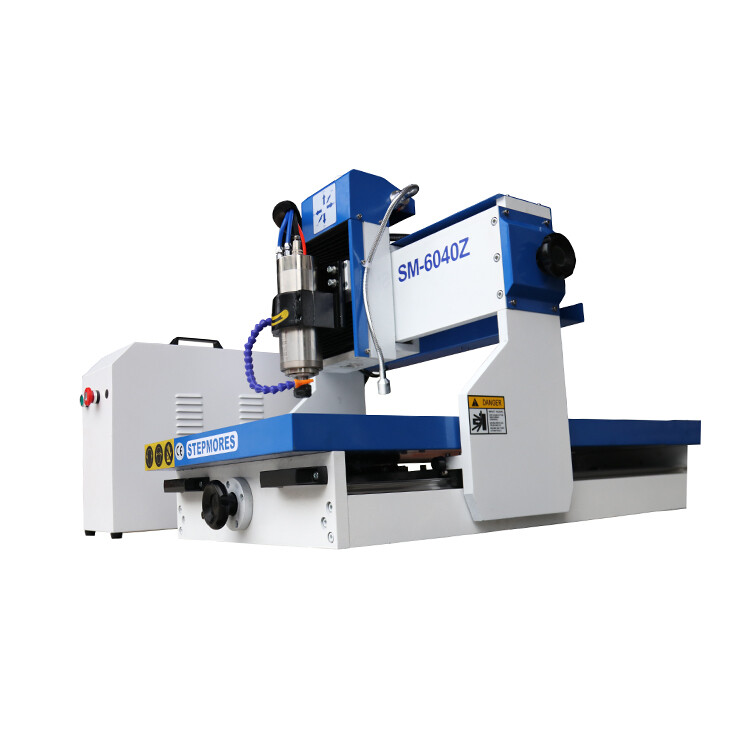

Strong version

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model6040z6090z
XYZ axis travel distance600x400x140mm600x900x140mm
Feeding height140mm140mm
Table size400x970mm600x1270mm
Spindle power1.5kw water cooling (0-24000 RPM)
Rail typeSquare rails
Control systemNCWORK
Drive typeStepper
TransmitBallscrew
Table typeAluminum profile T slot clamping
Max travel speed6000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine / packing size1080*740*620mm1400*.960*620mm
packing size1220*880*760mm1540*1100*760mm
Net / Gross weight125kg/150kg150kg/200kg



Water cooling spindle.png

1.5KW Water cooling spindle


Fuling inverter.png

Fuling VFD



NCWORK controller


Tool sensor.png

Calibrator


stepper motor.png

Stepper motor



Ballscrew transmission


linear rail.png

Square rail

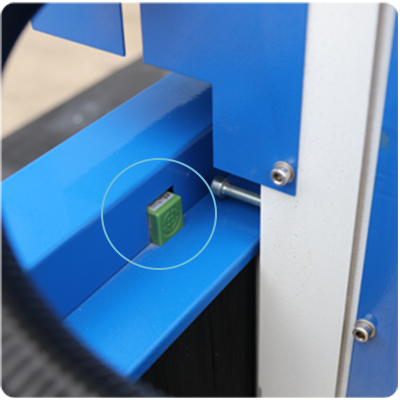

limit sensor.png

Home sensor

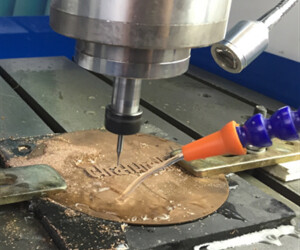

Flood tool cooling system

For metal material working.

Rotary device

80mm diameter

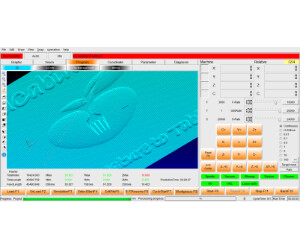

MDR controller（Ethernet port）

Compared Mach3. its much easier to install and much more stable. Professional CNC controller

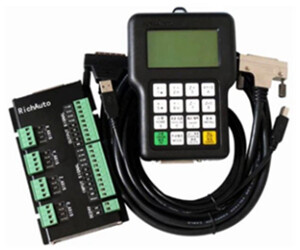

DSP controller from

It can control CNC Machine independently without computer. Easy to operate .

Easy servo motor

Closed loop motor has same encoder at

back to communicate with driver. Without loosing steps.
