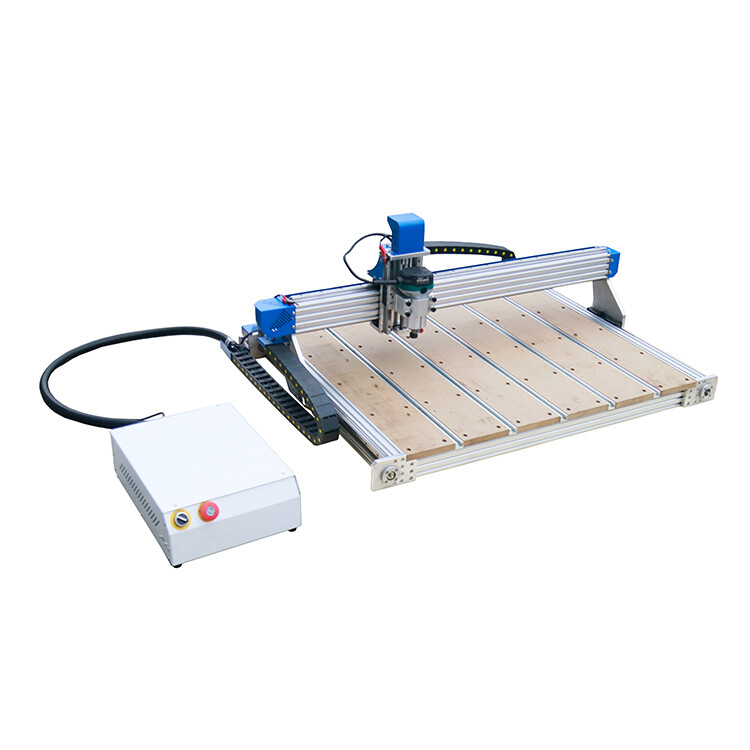

DIY version

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

Model

6090AS

XYZ axis travel distance

900x600x120mm

Feeding height

120mm

Table size

940x790mm

Spindle power

710w air cooling (0-30000 RPM)

Rail type

Square rails

Control system

NCWORK

Drive type

Stepper

Transmit

Ballscrew

Table type

MDF panel with Aluminum profile T slot clamping

Max travel speed

4000mm/min

Working precision

0.05mm

Power

AC220V±10% / 50~60Hz

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc

Command code

 G code

Machine size

896*1206*493mm

packing size

1030*1346*683mm

Net / Gross weight

50kg



NCWORK controller

based on PC windows system.

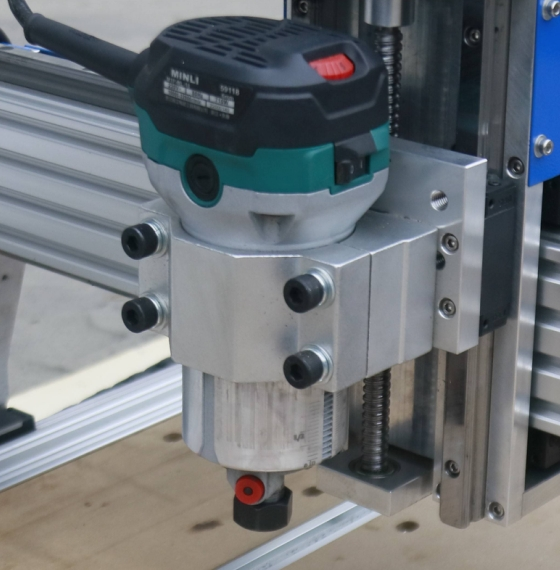

710W air cooling spindle

Speed: 30000 RPM ,

 collet: 6mm tool max

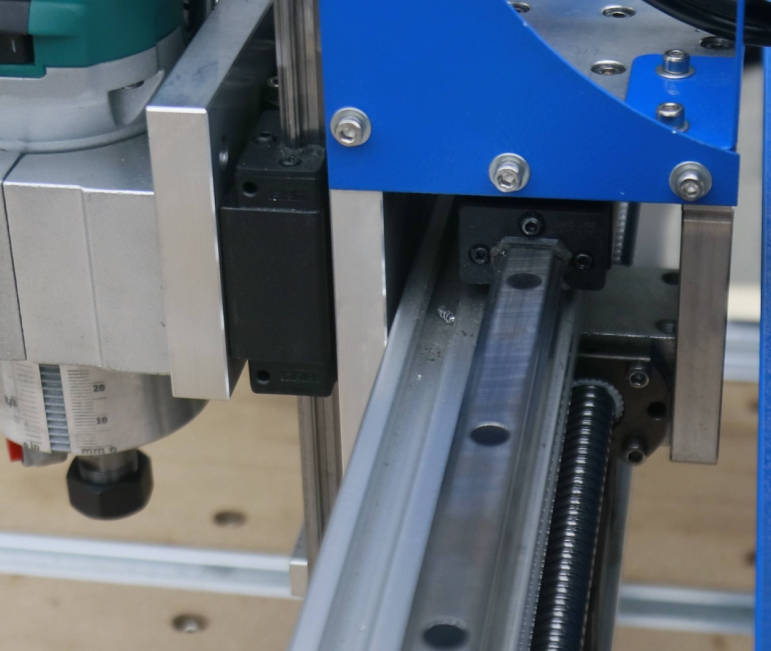

square rails.png

Linear square guide

ultra-heavy type that achieves a deep grooved raceway

with its diameter more approximate to the bal

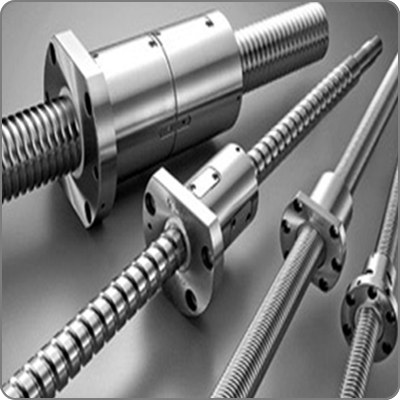

丝杆 ballscrew.png

High precision ballscrew

Precsion is C7 standard

Tool sensor.png

Tool sensor

Easy way to set Z axis working original point.










Title 1



Title 2



Title 3



Title 4

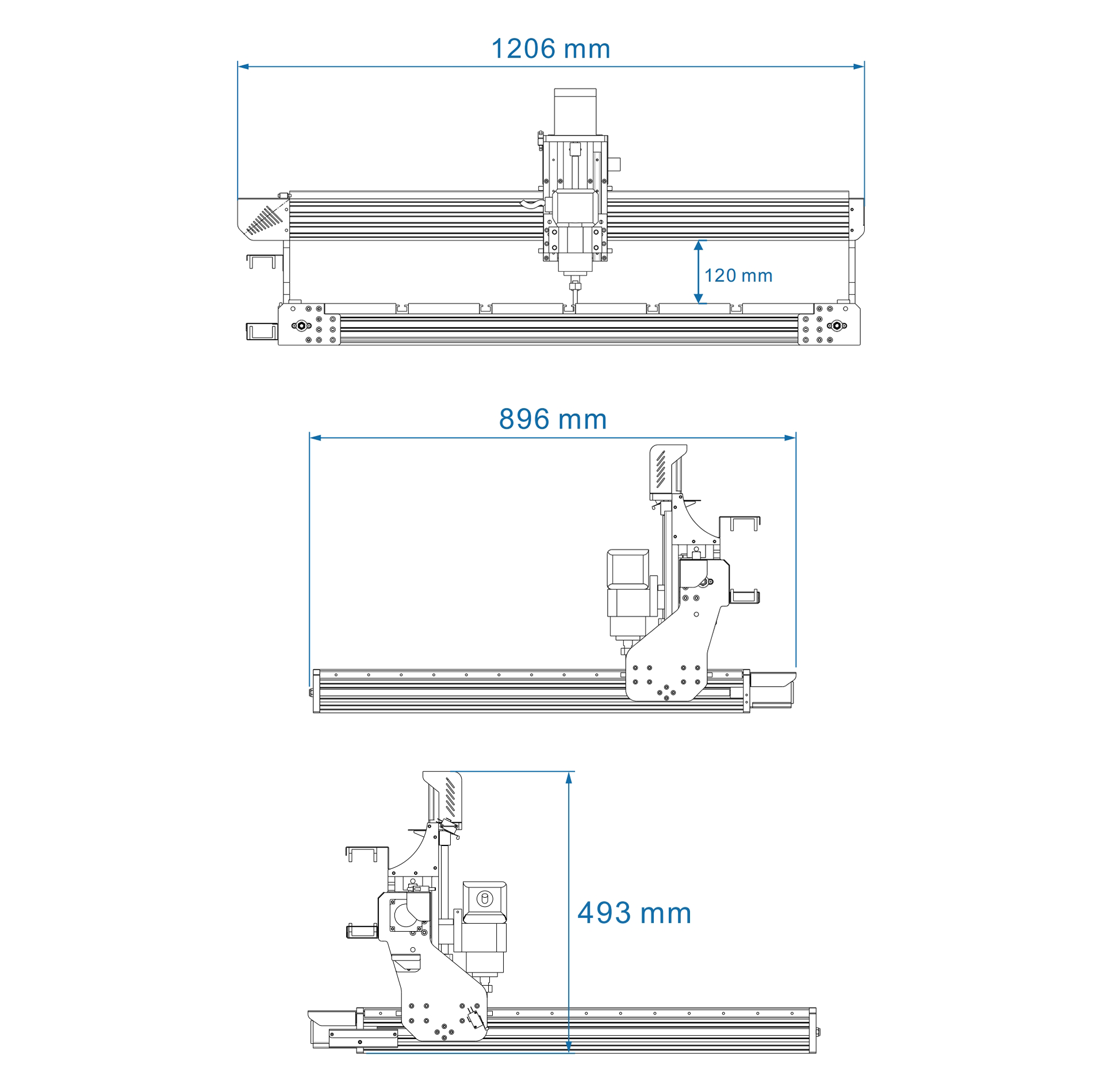

6090 型材框架 尺寸.png
