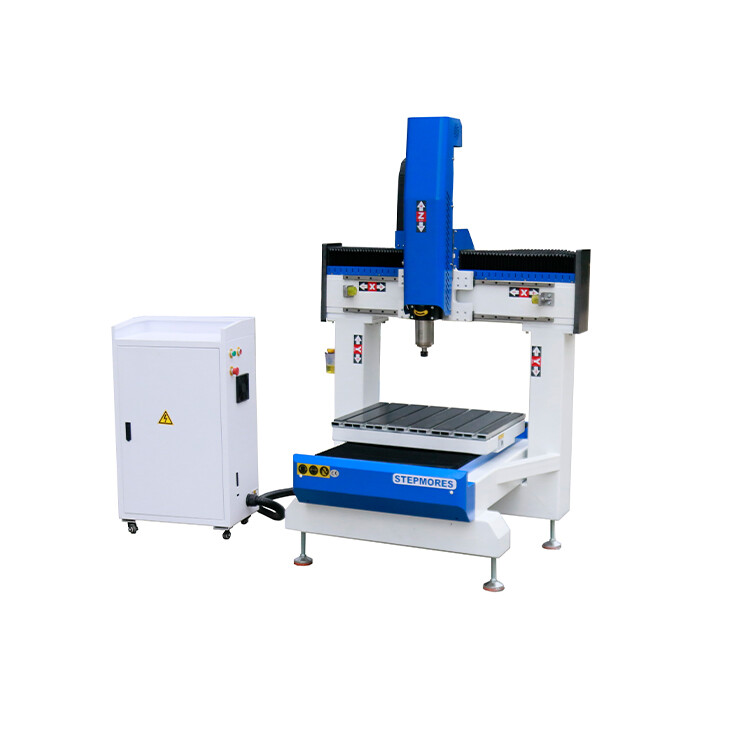

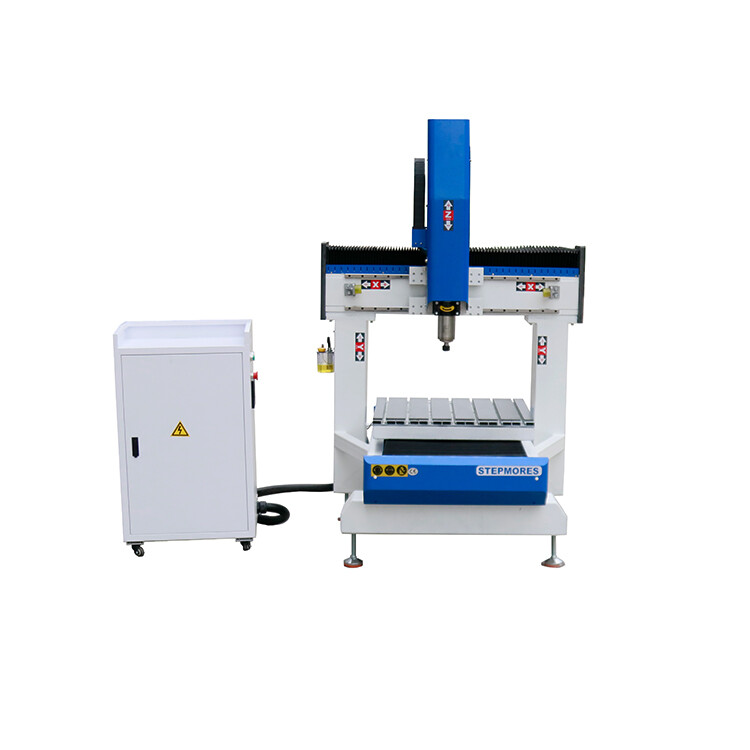

High feeding Model

Features


★ 2.2kw water cooling spindle

★ Square linear rails confirm higher precision

★ High precision ballscrew transimit

★ 400mmFeeding height

★ High precision stepper motor


Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

XYZ axis travel distance

600x500x400mm

Feeding height

400mm

Table size

600x500mm

Spindle power

2.2kw water cooling(0-24000RPM)

Rail type

linear rails

Control system

NCWORK

Drive type

Stepper motor

Transmit

ballscrew

Table type

Aluminum table withT slot

Max travel speed

6000mm/min

Working precision

0.05mm

Power

AC220V±10%/50~60Hz

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc

Command code

G code

Machine size

1.22*1.17*1.48m

Packing size

1.36*1.31*1.68m

Net / Gross weight

300kg / 350kg
