Middle size

  • ATC Function
  • ATC Function
  • ATC Function
  • ATC Function
  • ATC Function

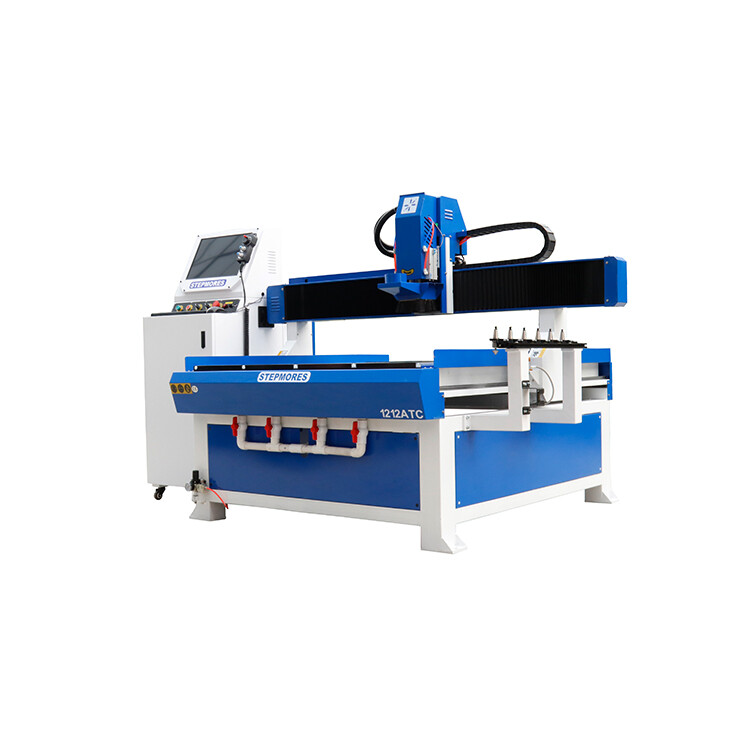

ATC Function


Features


★ 2.2kw ATC water cooling spindle

★ MDR controller with ethernet connection port

★ Easy servo motor

★ Vacuum table / dust collector option

★ Dust collector

★ High precision ballscrew transimit



Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model6090ATC6012ATC6015ATC
XYZ axis travel  600x900x180mm600x1200x180mm600x1500x180mm
Feeding height200mm200mm200mm
Table size600x1250mm600x1550mm600x1850mm
Spindle power2.2kw ATC water cooling(0-24000RPM)

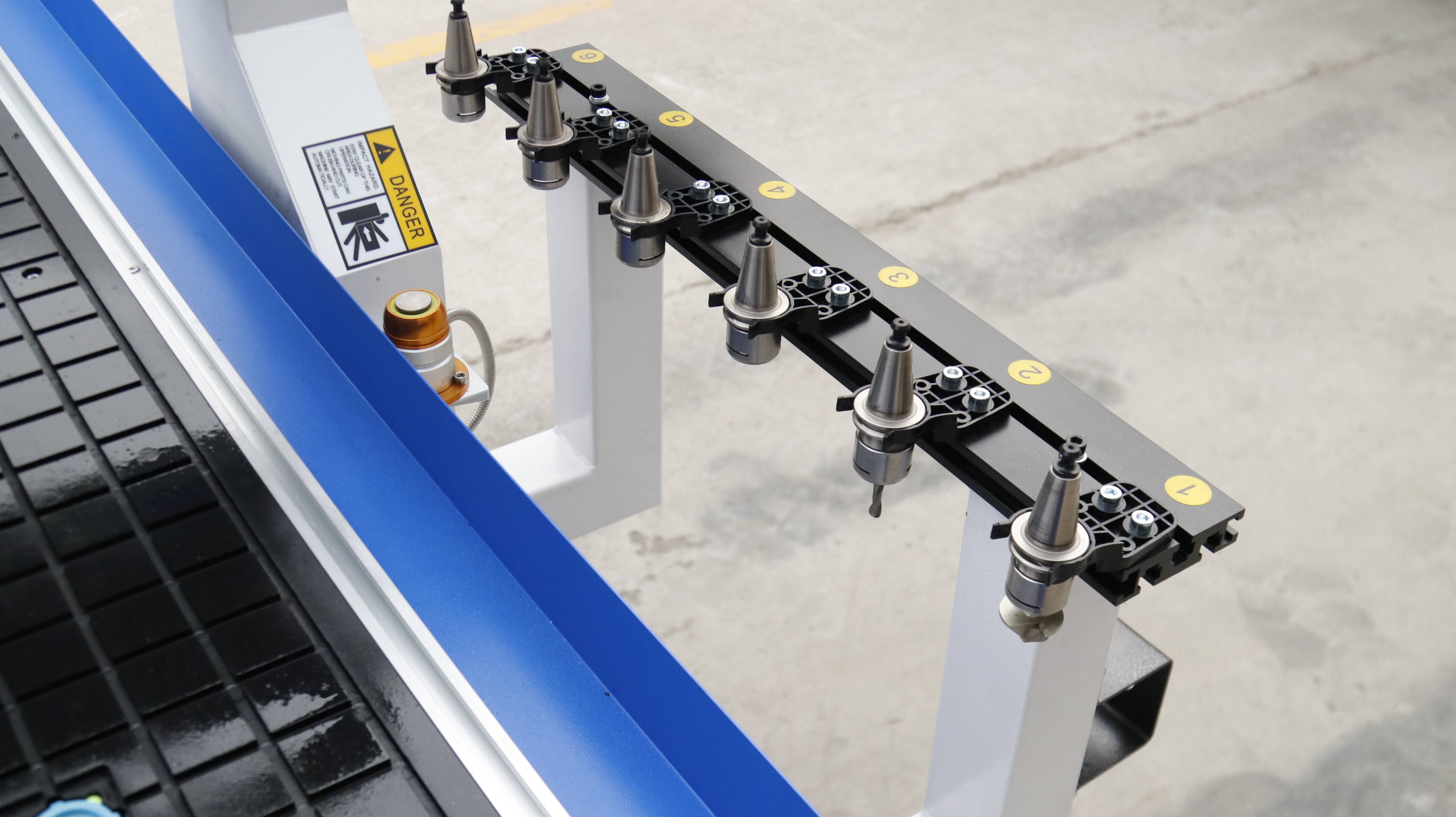

ATC tool type and number4pcs linear type tool changer on side
Control systemMDR controller
Drive typeEasy servo driver
Rail typelinear rails
Transmitballscrew
Table typeVacuum table with 2.2kw pump
Dust collectorSingle bag dust collector with auto up-down boot
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine size (L*W*H)1400*1350*1540mm1670*1350*1540mm1970*1350*1540mm
packing size (L*W*H)1540*1490*1740mm1810*1490*1740mm2110*1490*1740mm
Net/Gross weight300kg / 350kg350kg / 400kg400kg / 450kg


Model9012ATC9015ATC
XYZ axis travel  900x1200x180mm900x1500x180mm
Feeding height200mm200mm
Table size1300x1250mm1300x1520mm
Spindle power2.2kw ATC water cooling(0-24000RPM)
ATC tool type and number4pcs linear type tool changer on side
Control systemMDR controller
Drive typeEasy servo driver
Rail typelinear rails
Transmitballscrew
Table typeVacuum table with 2.2kw pump
Dust collectorSingle bag dust collector with auto up-down boot
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine size (L*W*H)1670*1650*1540mm1970*1650*1540mm
packing size (L*W*H)1810*1790*1740mm2110*1790*1740mm
Net/Gross weight400kg /500kg500kg / 550kg


Model1212ATC1215ATC1218ATC
XYZ axis travel 1200x1200x180mm1200x1500x180mm1200x1800x180mm
Feeding height200mm200mm200mm
Table size1300x1250mm1300x1520mm1300x2150mm
Spindle power2.2kw ATC water cooling(0-24000RPM)
ATC tool type and number4pcs linear type tool changer on side
Control systemMDR controller
Drive typeEasy servo driver
Rail typelinear rails
Transmitballscrew
Table typeVacuum table with 2.2kw pump
Dust collectorSingle bag dust collector with auto up-down boot
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine size (L*W*H)1690*2090*1540mm1720*2090*1540mm2020*2090*1540mm
packing size (L*W*H)1830*2230*1740mm1860*2230*1740mm2160*2230*1740mm
Net/Gross weight500kg / 550kg600kg / 750kg700kg / 850kg



ATC water cooling spindle.png

2.2kw ATC water cooling spindle


Fuling inverter.png

Inverter to controller spinlde speed

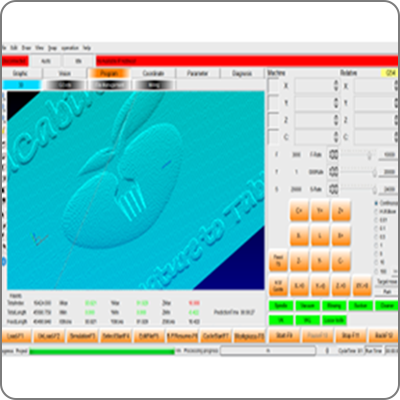

MDR controller.png

MDR controller with ethernet port

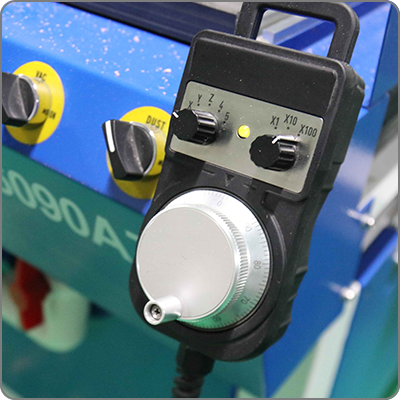

MPG MDR.png

MPG unit

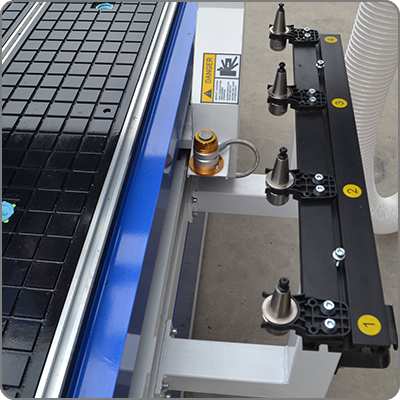

side tool changer.png

Linear tool changer

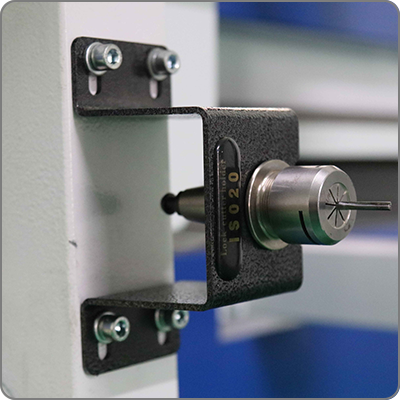

Tool holder bracket.png

Tool holder bracket for changing tools


Tool sensor for ATC.png

High precsion tool sensor to measure offset


红壳混伺 加框.png

Easy servo motor


linear rail.png

Square rails



High precision ballscre


vacuu table.png

Vacuum absorption table


Single bag Dust collector.png

Dust colector

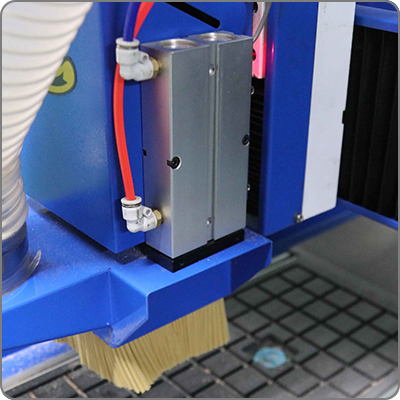

Auto up-down dust boot 2.png

Auto up-down dust boot

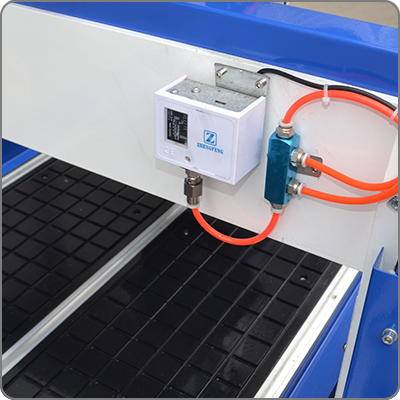

lower pressure alarm.png

Lower pressure alarm

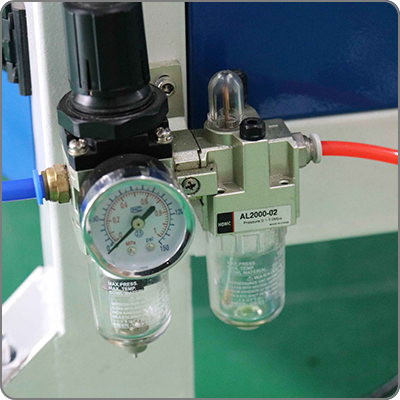

pressure adjustor.png

Pressure adjustor with filter








ATC water cooling spindle.png

3kw ATC water cooling spindle


NK105CS controller.png

NK105CS controller


Leadshine servo motor.png

Servo motor


flood cooling.png

Flood cooling for tool bits



Mist cooling for tool


rotary device.png

Rotary device
