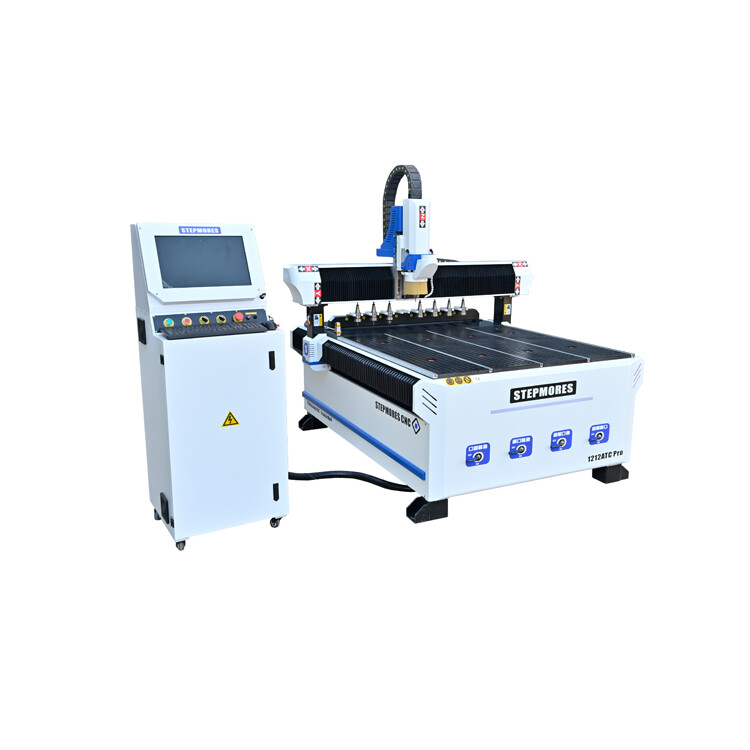

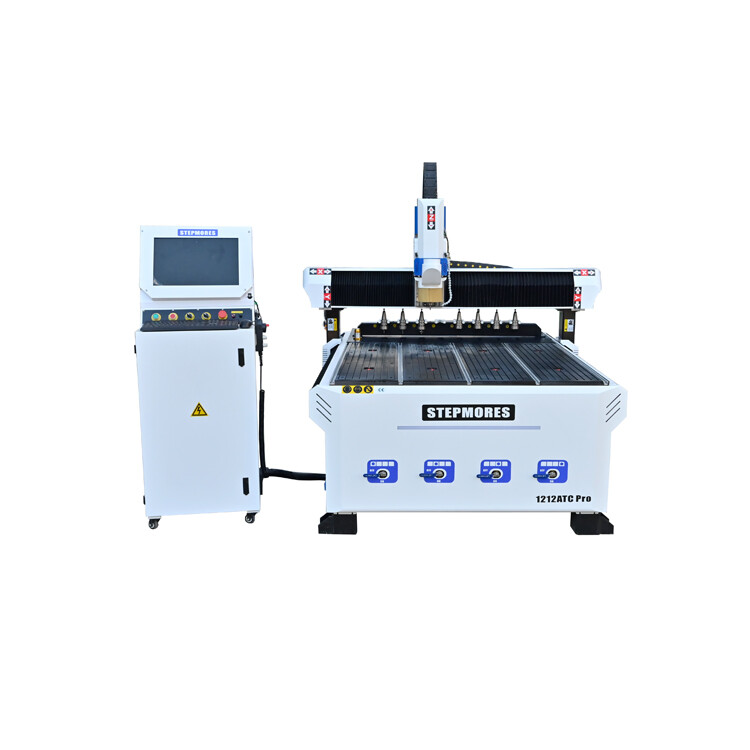

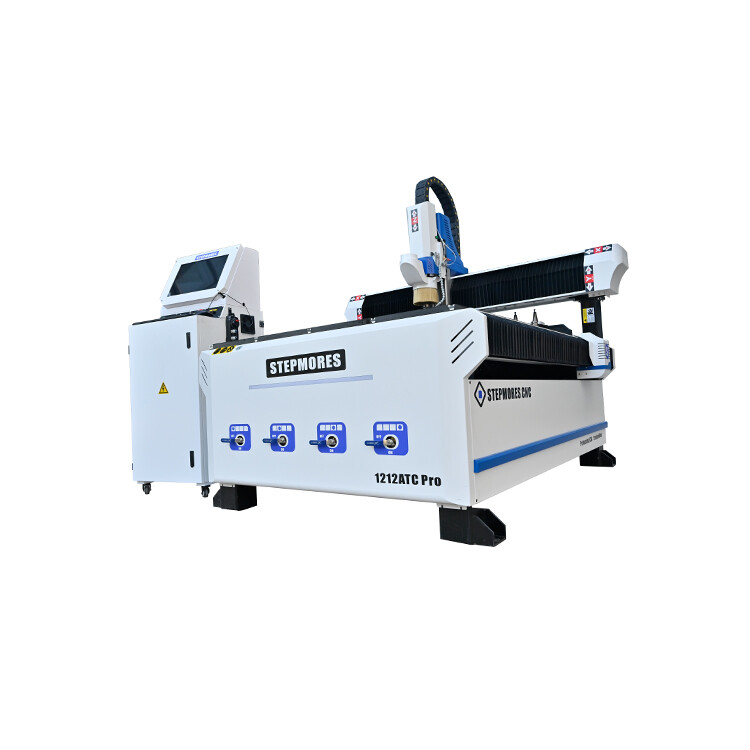

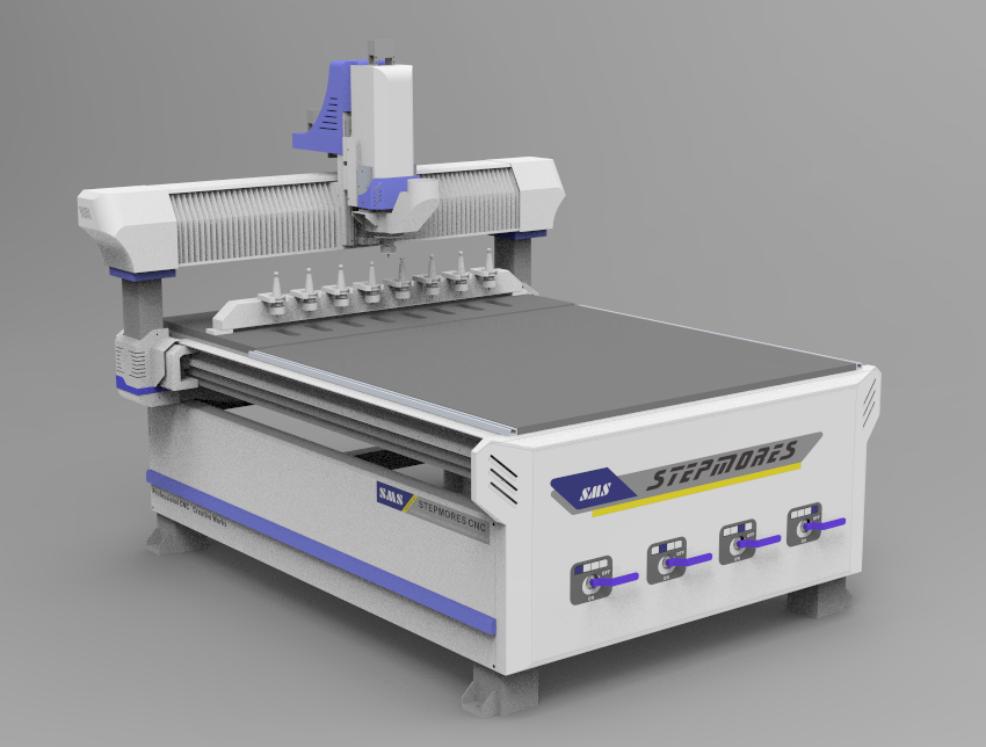

1212ATC Pro

Features


★ 4.5kw water cooling ATC spindle

★ Syntech controller with absolute value servo motor

★ Square linear rails confirm higher precision

★ High precision ballscrew transimit

★ 200mmFeeding height

★ Vacuum table / dust collector

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model1212ATC-Pro
XYZ axis travel  1200x1200x200mm
Feeding height200mm
Table size1250x1250mm
Spindle power4.5kw ATC water cooling(0-24000RPM)
ATC tool type and number8pcs linear type tool changer on backside
Control systemSyntech 60CB
Drive typeAbsolute Servo motor from Syntech
Rail typelinear rails
Transmitballscrew
Table typeVacuum table with 5.5kw pump
Dust collectorSingle bag dust collector with auto up-down boot
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine size (L*W*H)2130*1870*1770mm
packing size (L*W*H)2270*2010*1960mm
Net/Gross weight700kg / 850kg



ATC water cooling spindle.png

4.5kw water cooling ATC spindle


FULING VFD 5.5kw.png

Inverter to control spindle speed

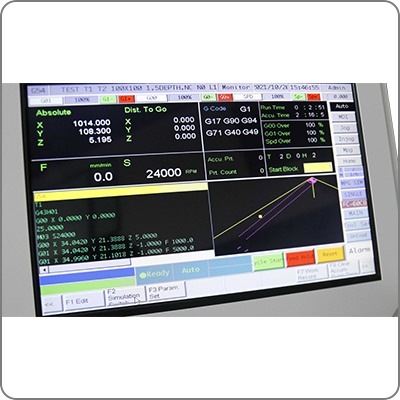

syntech 60CB.png

Syntech controller

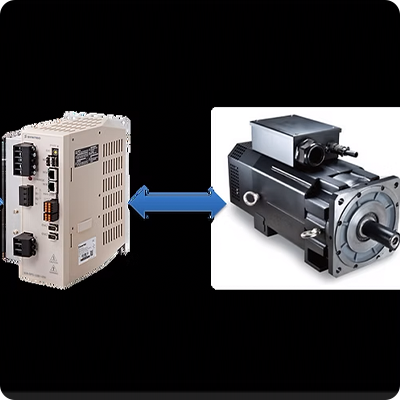

Syntech absolute value servo motor.png

Absolute Servo motor from Syntech

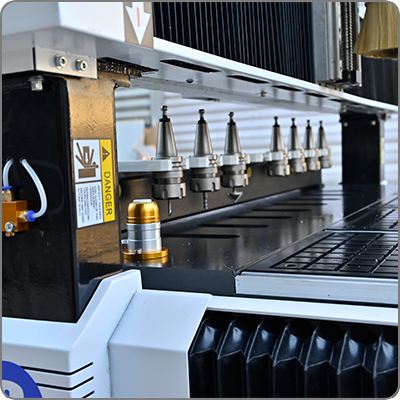

Linear tool changer.png

8pcs linear type tool changer on backside


Tool sensor for ATC.png

High precsion tool sensor to measure offset

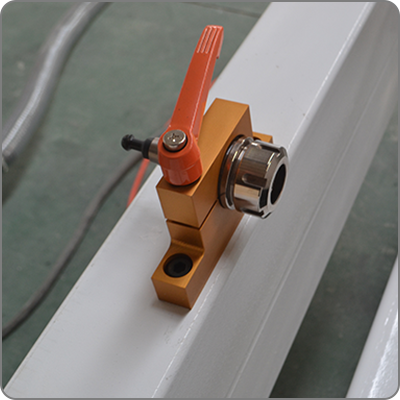

tool holder chuck.png

 Tool holder lock device



XYZ high precsion ballscrew


linear rail.png

High precision ballscrew

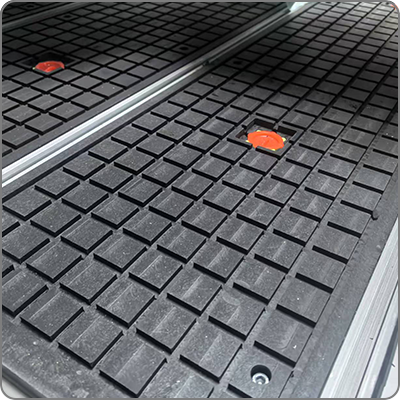

Vacuum absorption table.png

Vacuum absorption table

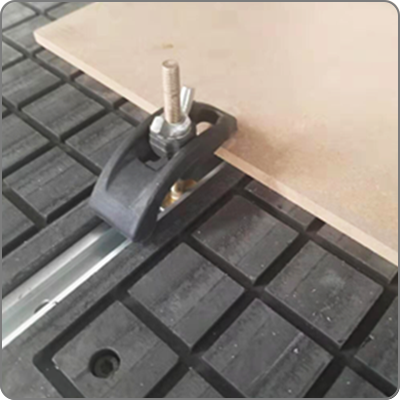

Imbedded T slot for clamping material

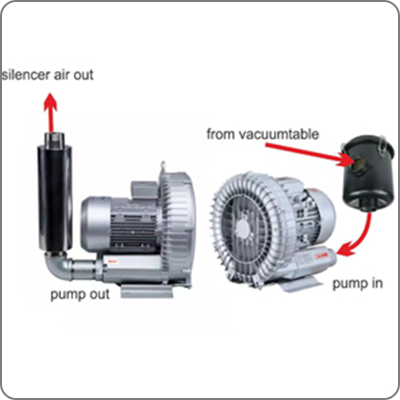

vacuum pump.png

Vacuum pump


Single bag Dust collector.png

Dust collector


auto up-down dust boot.png

Auto up-down dust boot


Oiling tool.png

Oiling device

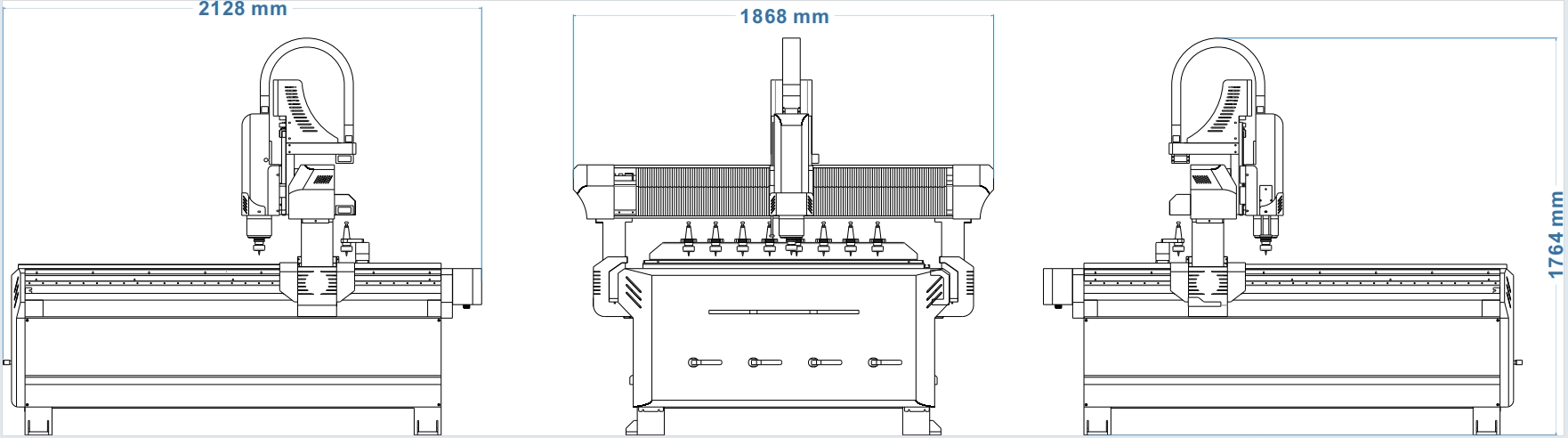

1212ATC Pro size.png
