Middle size

  • 12 series
  • 12 series
  • 12 series

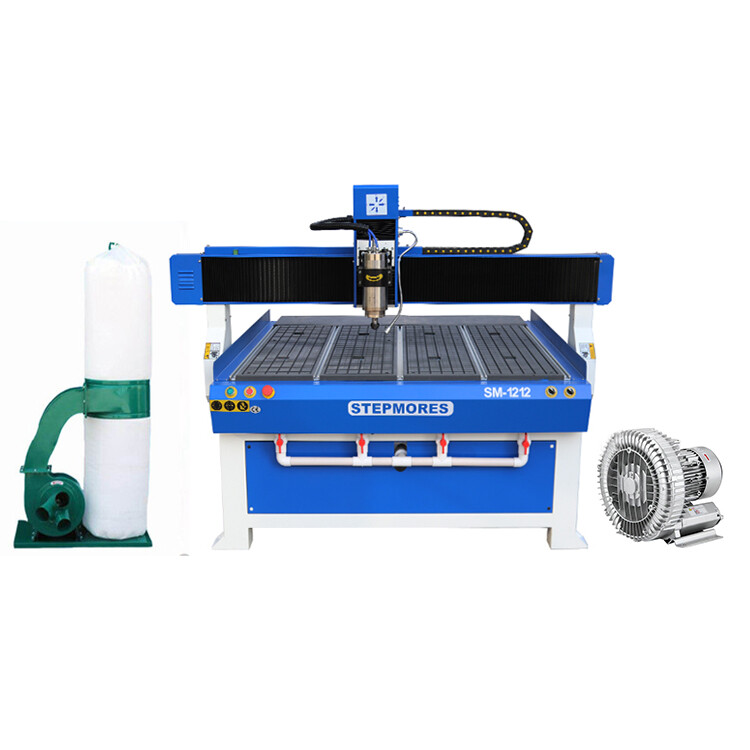

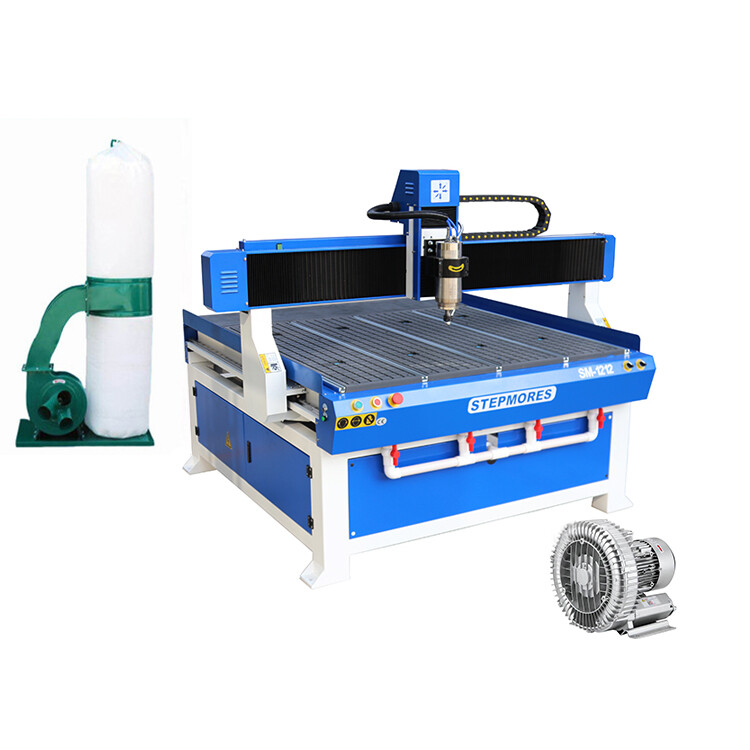

12 series

Features

★ 2.2kw water cooling spindle

★ MDR controller with ethernet port

★ High precision stepper motor

★ Square linear rails confirm higher precision

★ High precision ballscrew transimit

★ 200mmFeeding height

★ Vacuum table / dust collector option

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model121212151218
XYZ axis travel 1200x1200x180mm1200x1500x180mm1200x1800x180mm
Feeding height200mm200mm200mm
Table size1300x1250mm1300x1520mm1300x2150mm
Spindle2.2kw water cooling (0-24000RPM)
Rail typeSquare rail
Control systemNCWORK controller
MotorStepper motor
TransmitBallscrew
Table typeAluminum profile T slot clamping
Max travel speed8000mm/min
Working precision0.05mm
VoltageAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code

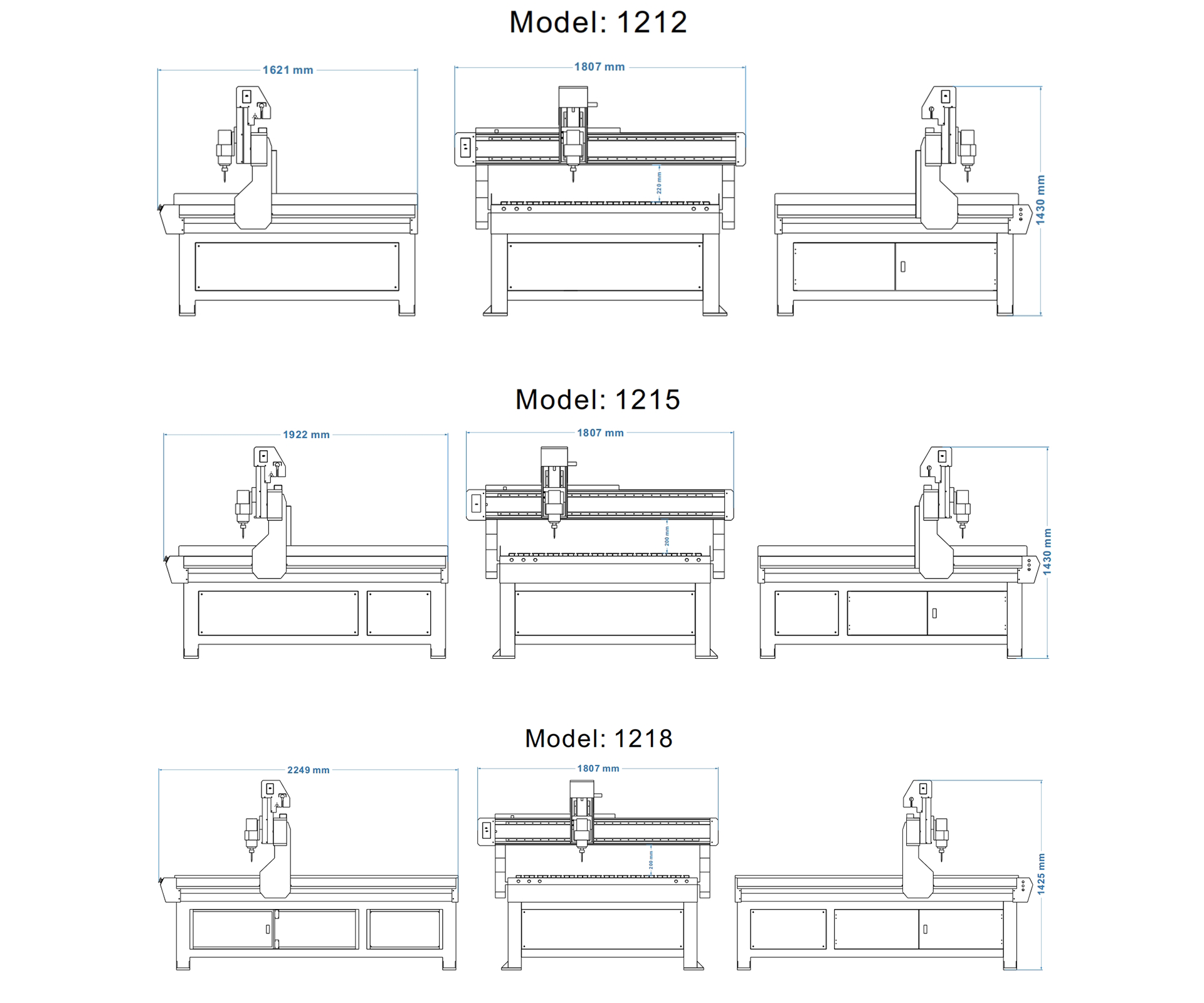

Machine size (L*W*H)1620*1810*1430mm1920*1810*1430mm2250*1810*1430mm
packing size (L*W*H)1760*1950*1620mm2060*1950*1620mm2390*1950*1620mm
Net/Gross weight300kg / 350kg350kg / 400kg400kg / 450kg



Water cooling spindle.png

2.2kw water cooling spindle


Fuling inverter.png

Inveter to control spindle speed



NCWORK controller


Tool sensor.png

Tool sensor


stepper motor.png

Stepper motor


linear rail.png

Square rails



High precision ballscrew transmision


T slot table.png

T slot table





Water cooling spindle.png

3kw water cooling spindle


Air cooling spindle.png

3kw air cooling spindle



DSP controller


NK105CS controller.png

NK105G3 controller



红壳混伺 加框.png

Easy servo motor


Leadshine servo motor.png

Servo motor


vacuu table.png

Vacuum table


Single bag Dust collector.png

Dust collector


flood cooling.png

Flood cooling for tool bits



Mist cooling for tool bits


rotary device.png

Rortary device
