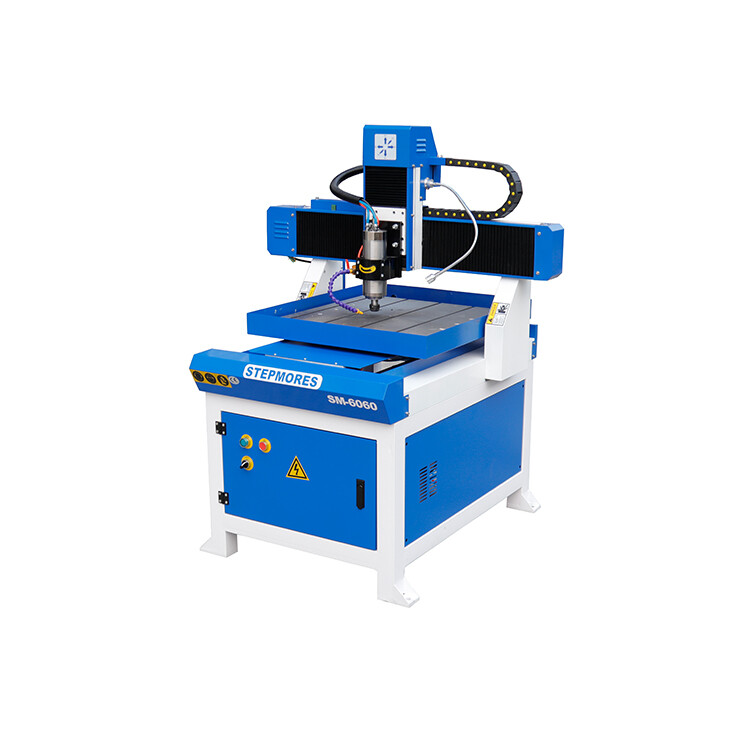

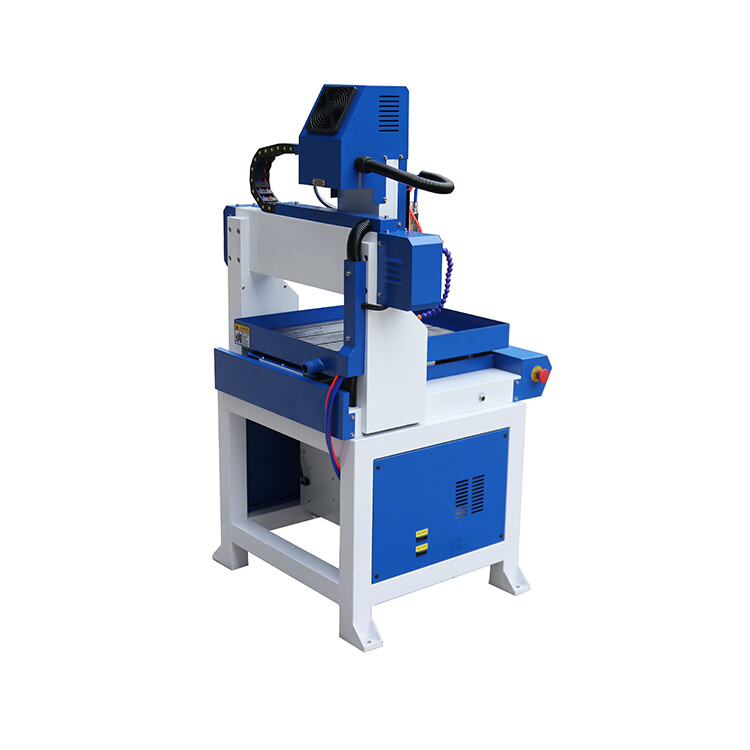

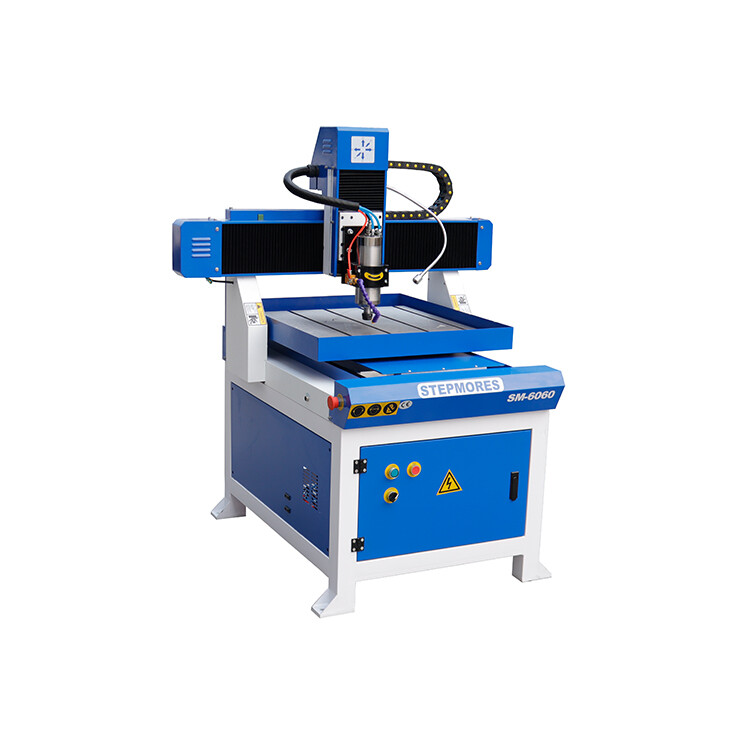

Light version

Features


★ Iron casting structure

★ Table move design

★ Square linear rails confirm higher precision

★ Professional spindle motor


Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model40406060
XYZ axis travel 400x400x150mm600x600x150mm
Feeding height150mm150mm
Table size440x440mm660x660mm
Spindle2.2kw water cooling (0-24000RPM)
Rail typeSquare rail
Control systemNCWORK
MotorStepper motor
TransmitBallscrew
Table typeIron casting structure
Max travel speed8000mm/min
Working precision0.05mm
VoltageAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code
Machine size (L*W*H)710*820*1320mm1050*1120*1320mm
packing size (L*W*H)880*940*1520mm1170*1120*1520mm
Net/Gross weight300kg / 350kg350kg / 420kg



Water cooling spindle.png

2.2kw Water cooling spindle


Fuling inverter.png

Inverter to control spindle speed



NCWORK controller


Tool sensor.png

Tool sensor


stepper motor.png

Stepper motor


linear rail.png

Square rails



High precsion ballscrew



Tslot table


flood cooling.png

Flood cooling for tool bits

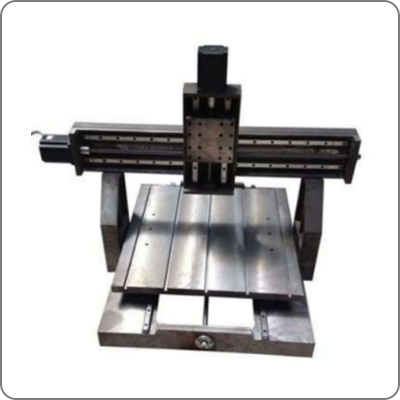

Iron casting structure.png

Iron casting structure










Water cooling spindle.png

3kw water cooling spindle


Leadshine servo motor.png

Servo motor



DSP controller


rotary device.png

Rtoary device

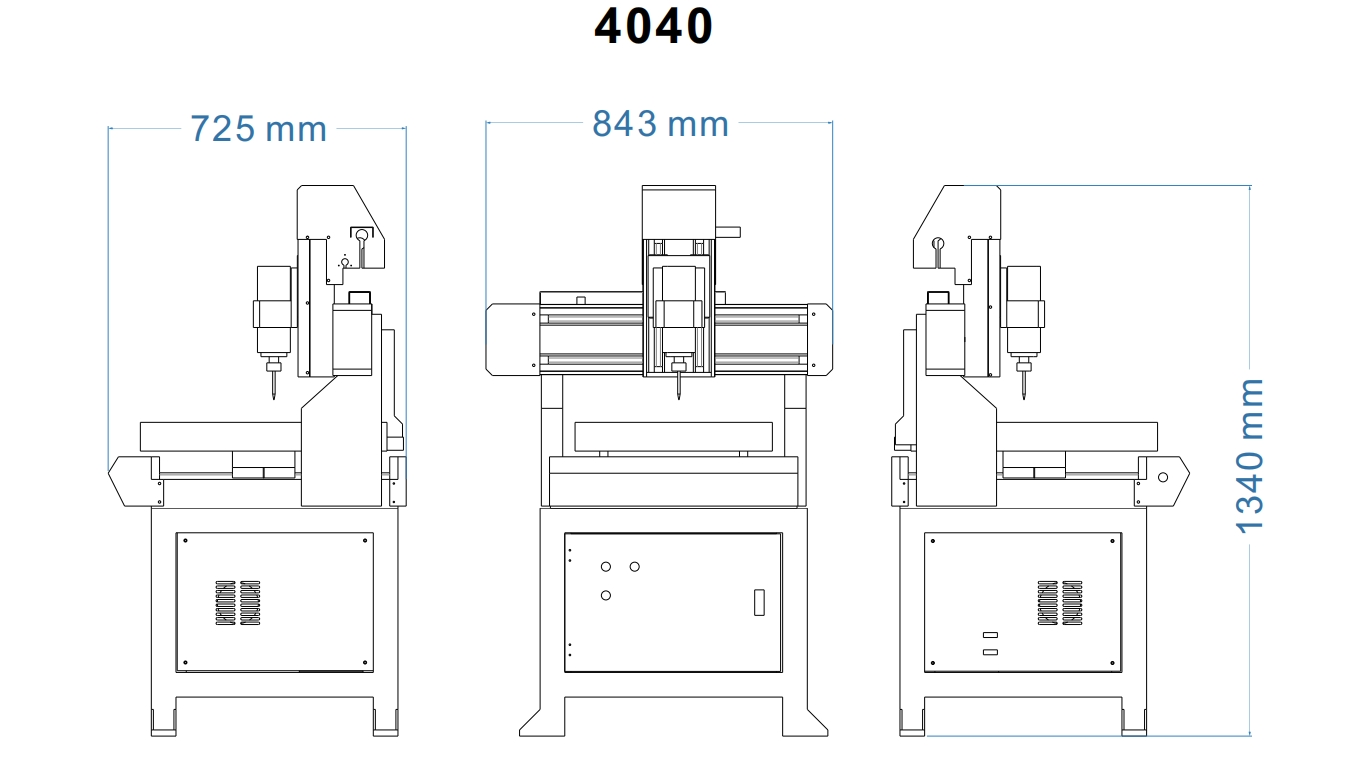

4040 size.png
