Metal CNC

  • ATC Function
  • ATC Function
  • ATC Function
  • ATC Function

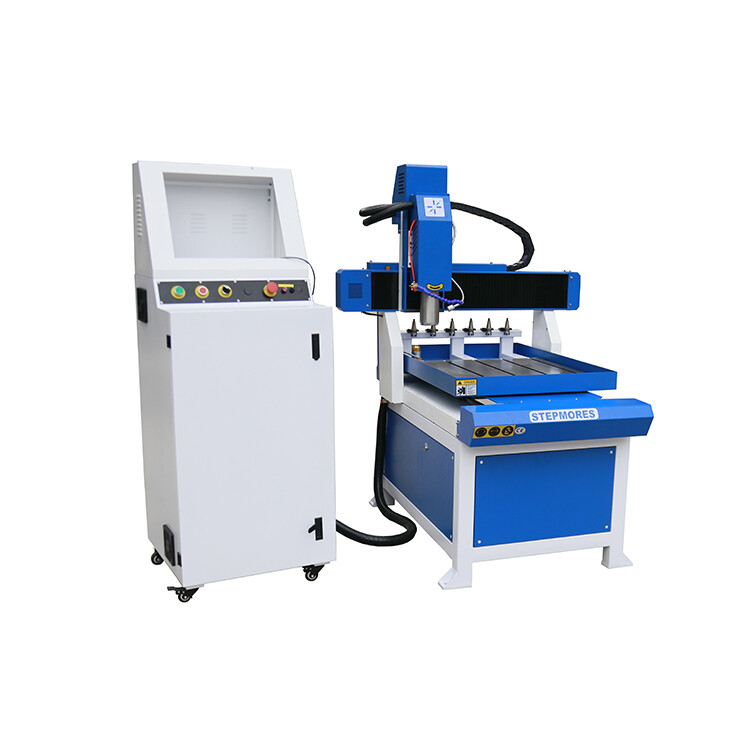

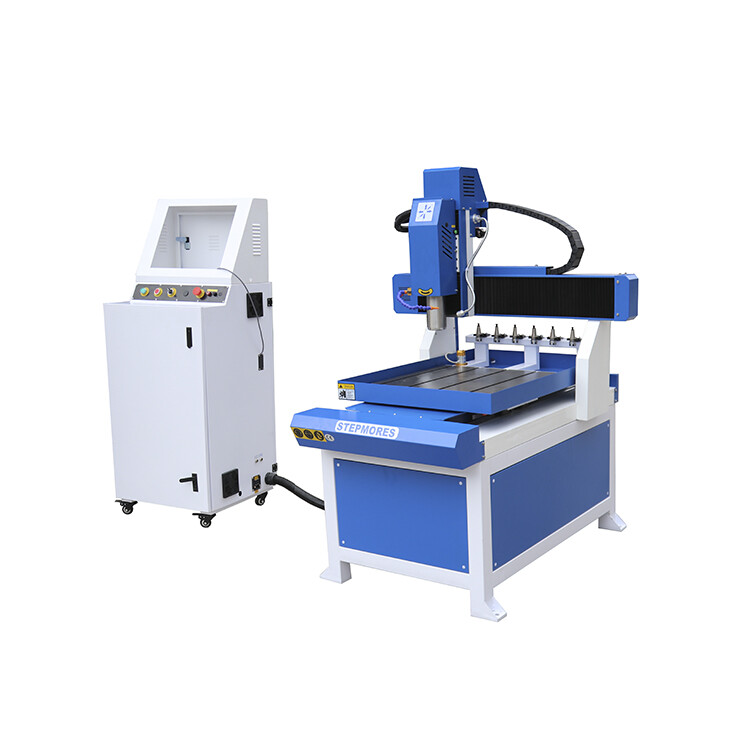

ATC Function


Features


★ Auto tool change function

★ Iron casting structure

★ Table move design

★ Square linear rails confirm higher precision

★ High precision ballscrew



Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

Model4040ATC6060ATC
XYZ axis travel  600x600x180mm400x400x180mm
Feeding height200mm200mm
Table size660x660mm440x440mm
Spindle power2.2kw ATC water cooling(0-24000RPM)
ATC tool type and number4pcs linear type tool changer on side
Control systemMDR controller
Drive typeEasy servo driver
Rail typelinear rails
Transmitballscrew
Table typeIron casting structure
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code G code
Machine size (L*W*H)910*820*1460mm1460*1120*1460mm
packing size (L*W*H)1080*940*1660mm1370*1120*1660mm
Net/Gross weight450kg /550kg550kg / 600kg


ATC water cooling spindle.png

2.2kw water cooling ATC spindle

Fuling inverter.png

Inverter to control spindle speed

MDR controller.png

MDR controller

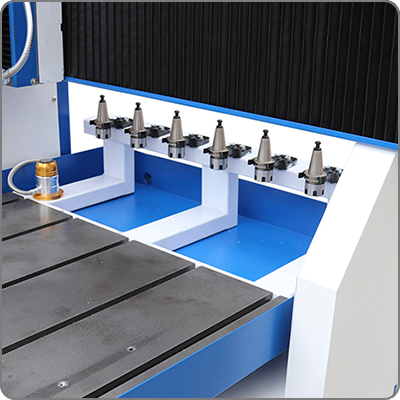

4040ATC tool changer.png

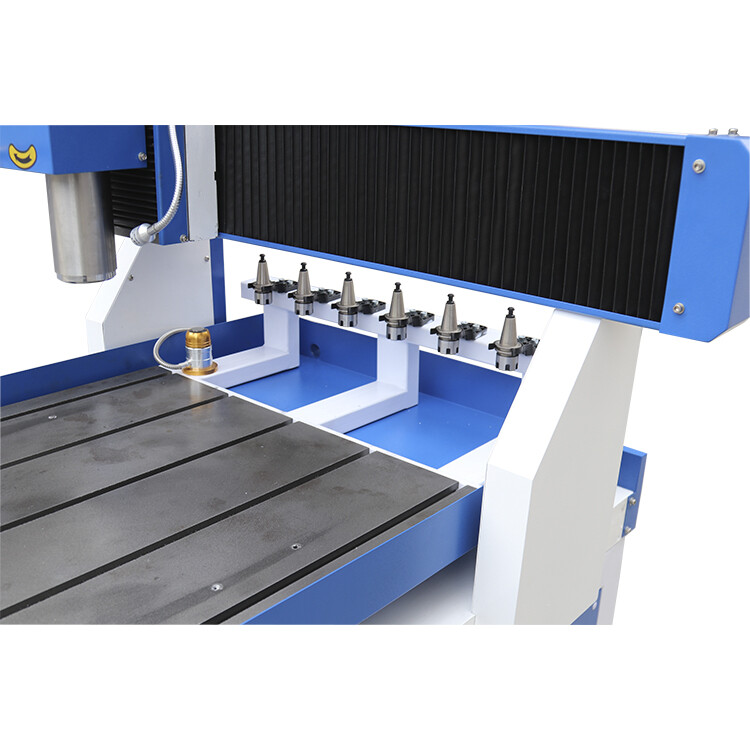

Linear tool chagner

Tool sensor for ATC.png

Tool sensor for measure tool offset

红壳混伺 加框.png

Easy servo motor

linear rail.png

Square rails


High precision ballscew


T slot table

flood cooling.png

Flood cooling for tool bits

Iron casting structure.png

Iron casting structue

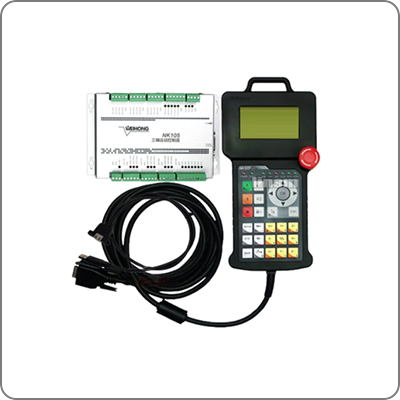

NK105CS controller

Leadshine servo motor.png

Servo motor

rotary device.png

Rotary device
