Features

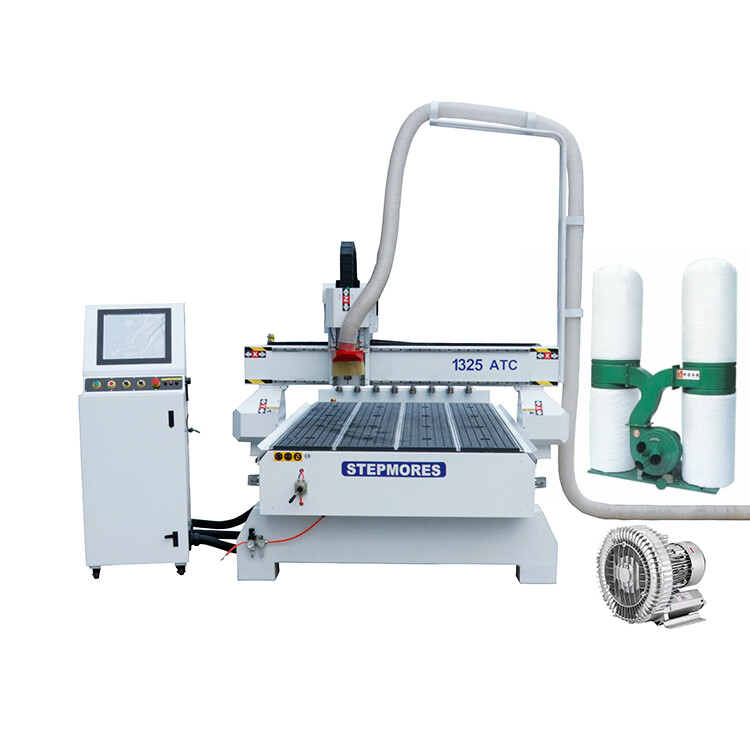

★ 9kw air cooling ATC spindle

★ NK105CS controller

★ Servo motor with reducer

★ 8PCS linear tool changer

★ Vacuum table with embeded Tslot

★ Square linear rails confirm higher precision

★ Dust collector

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


ModelSM1325ATC-MSM1530ATC-MSM2030ATC-M
XYZ axis travel1300x2500x200mm1500x3000x200mm2000x3000x200mm
Feeding height200mm200mm200mm
ATC tool type8 PCS linear type( back side）
Spindle power9KW ATC air cooling spindle
Control systemNK105CS
Drive typeServo motor
Rail typelinear rails XYZ 20mm
TransmitX Y Oblique gear rack /Z ballscrew
Table typeVacuum absorption with T slot clamping with 5.5KW vacumm pump
Max travel speed50000mm/min
Working precision0.05mm
powerAC380V±10% /50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command codeG code
Machine size3250*2000*1620mm3500*2140*1620mm3500*2800*1620mm
packing size3370*2130*1860mm3870*2270*1800mm3870*2280*970mm
Net/Gross weight1400kg/1600kg1700kg/2000kg1900kg/2200kg



ATC air cooling spindle.png

9kw air cooling ATC spindle


MDR controller.png

MDR controller (Ethernet port)


8PCS Linear tools.png

Linear tool changer


Leadshine servo motor.png

Servo motor



shimpo reducer.png

Reducer instead of gear box


linear rail.png

Square rails


gear rack.png

Oblique rack


vacuum table woodworking.png

Vacuum absorption table



Double bags Dust collector.png

Dust collector


Auto up-down dust boot.png

Auto up-down dust boot


Oiling tool.png

Oiling tool


electric part.png

Schneider





ATC water cooling spindle.png

Water cooling ATC spindle


NK105CS controller.png

NK105CS controller


syntech 60w-e.png

Syntech controller


Disk tool changer.png

Disk tool changer



flood cooling.png

Flood cooling for tool bits



Mist cooling for tool bits


rotary device.png

Rotary device
