Big size

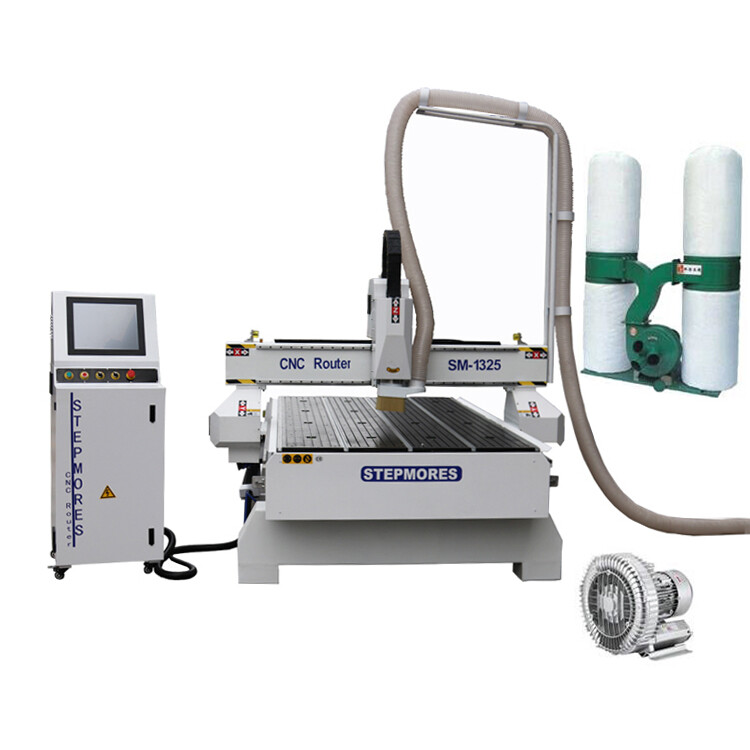

  • Strong version

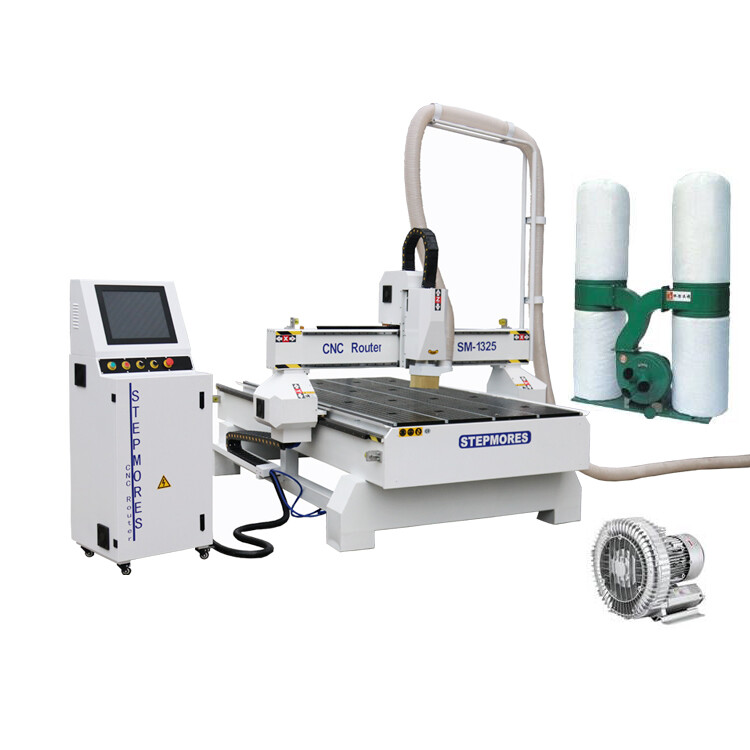

  • Strong version
  • Strong version

Strong version

Features

★ 4.5kw air cooling spindle

★ DSP controller

★ Servo motor with reducer

★ Square linear rails confirm higher precision

★ Vacuum table

★ Dust collector

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


ModelSM1325MSM1530MSM2030M
XYZ axis travel1300x2500x200mm1500x3000x200mm2000x3000x200mm
Feeding height200mm200mm200mm
Table size1300*2500mm1500x3000mm2000x3000mm
Spindle power4.5KW air cooling spindle(0-18000RPM)
Control systemDSP
Drive typeServo motor
Rail typelinear rails XYZ 20mm
TransmitX Y Oblique gear rack /Z ballscrew
Table typeVacuum absorption with T slot clamping with 5.5KW vacumm pump
Max travel speed40000mm/min
Working precision0.05mm
powerAC380V±10% /50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command codeG code
Machine size3000*1900*1620mm3500*2140*1620mm3500*2800*1620mm
packing size3140*2100*1740mm3640*2280*1740mm3640*2280*1000mm
Net/Gross weight1300kg/1500kg1600kg/1900kg1800kg/2100kg



Air cooling spindle.png

Air cooling spindle

FULING VFD 5.5kw.png

Inverter


DSP controller

Tool sensor.png

Tool sensor


Leadshine servo motor.png

Servo motor

shimpo reducer.png

Reducer (Instead of gear box)

gear rack.png

Oblique rack

linear rail.png

Square rail


vacuum table woodworking.png

Vacuum table

Dust collector.png

Dust collector

Oiling tool.png

Oiling tool

electric part.png

Schneider electric parts



water cooling spindle.png

5.5kw water cooling spindle



DSP controller


NK105CS controller.png

NK105G3 controller


flood cooling.png

Flood cooling for tool bits




Mist cooling for tool bits


rotary device.png

Rotary device
