Big size

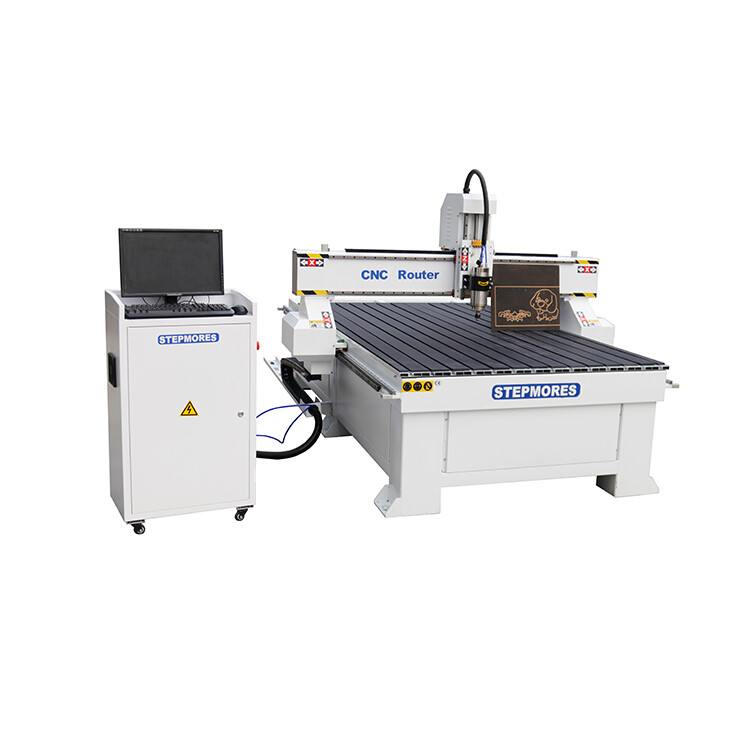

  • Economic version

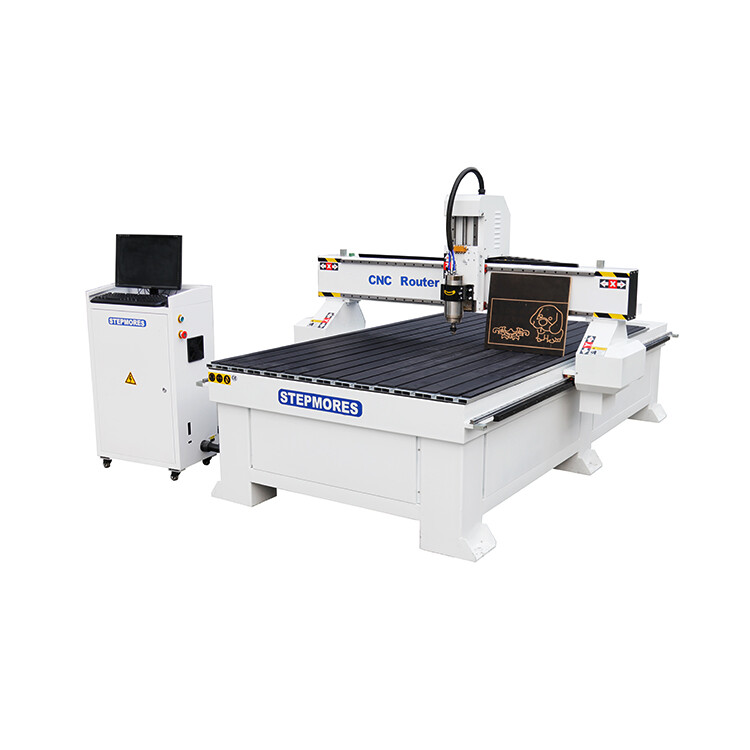

  • Economic version
  • Economic version

Economic version

Features

★ 3kw water cooling spindle

★ MDR controller with Ethernet cable

★ Stepper motor

★ Square linear rails confirm higher precision

★ Dust collector


Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


ModelSM1325-VSM1530-VSM2030-V
XYZ axis travel1300x2500x200mm1500x3000x200mm2000x3000x200mm
Feeding height200mm200mm200mm
Table size1300*2500mm1500x3000mm2000x3000mm
Spindle power3kw water cooling spindle(0-24000RPM)
Control systemNCWORK
Drive typeStepper motor
Rail typelinear rails XYZ 20mm
TransmitX Y Oblique gear rack /Z ballscrew
Table typeAluminum profile table with T slot clamping
Max travel speed20000mm/min
Working precision0.05mm
powerAC380V±10% /50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command codeG code
Machine size3000*1900*1620mm3500*2140*1620mm3500*2800*1620mm
packing size3140*2100*1740mm3640*2280*1740mm3640*2280*1000mm
Net/Gross weight1000kg / 1200kg1300kg/1500kg1500kg/1700kg



Water cooling spindle.png

3kw water cooling spindle


Fuling inverter.png

Inverter



NCWORK controller


Tool sensor.png

Tool sensor



stepper motor.png

Stepper motor


linear rail.png

Square rails


gear rack.png

Oblique rack


gear box oblique.png

gear box



T slot table.png

T slot table


Oiling tool.png

Oiling tool

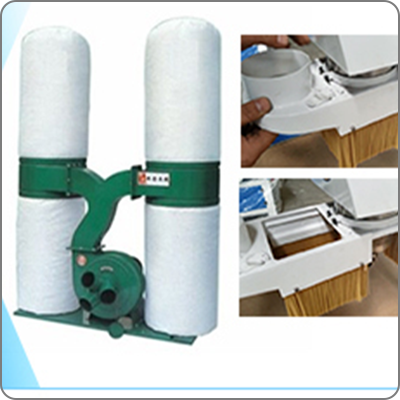

Dust collector.png

Dust collector







Water cooling spindle.png

5.5kw water cooling spindle

Air cooling spindle.png

4.5kw Air cooling spindle


DSP controller

Yakao easy servo motor S3.png

Easy servo motor


Leadshine servo motor.png

Servo motor

vacuum table woodworking.png

Vacuum table

flood cooling.png

Flood cooling for tool bits

rotary device.png

Rotary device
