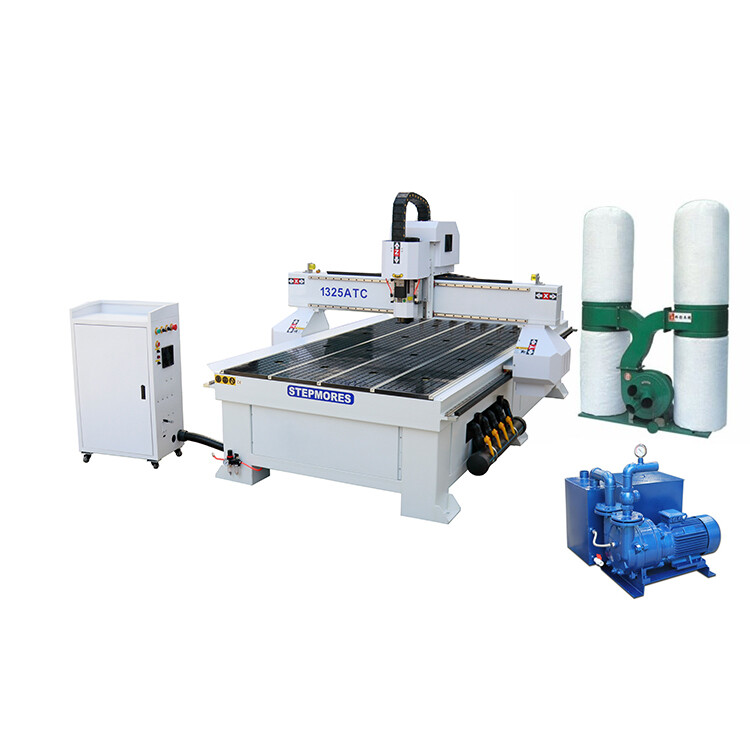

Economic version ATC


Features

★ 7.5kw air cooling ATC spindle

★ MDR controller with Ethernet cable

★ Easy servo motor

★ 8PCS linear tool changer

★ Vacuum table with embeded Tslot

★ Square linear rails confirm higher precision

★ Dust collector

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


ModelSM1325ATC-VSM1530ATC-VSM2030ATC-V
XYZ axis travel1300x2500x200mm1500x3000x200mm2000x3000x200mm
Feeding height200mm200mm200mm
ATC tool type8 PCS linear type( back side）
Spindle power9KW ATC air cooling spindle
Control systemMDR
Drive typeEasy servo motor
Rail typelinear rails XYZ 20mm
TransmitX Y Oblique gear rack /Z ballscrew
Table typeVacuum absorption with T slot clamping with 5.5KW vacumm pump
Max travel speed50000mm/min
Working precision0.05mm
powerAC380V±10% /50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command codeG code
Machine size3250*2000*1620mm3500*2140*1620mm3500*2800*1620mm
packing size3370*2130*1860mm3870*2270*1800mm3870*2280*970mm
Net/Gross weight1100kg/1300kg1300kg/1500kg1500kg/1700kg



ATC air cooling spindle.png

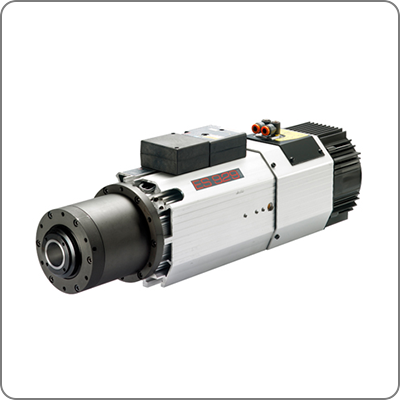

9KW air cooling ATC spindle


FULING VFD 5.5kw.png

MDR controller (Ethernet controller)


Tool sensor for ATC.png

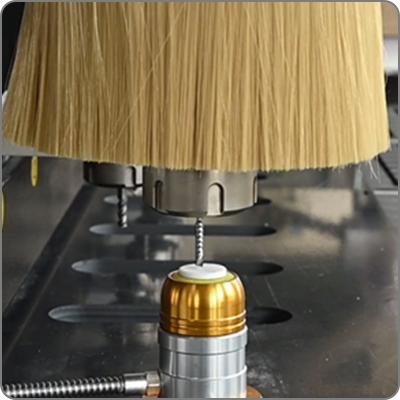

Tool sensor to measure each tool offset


8PCS Linear tools.png

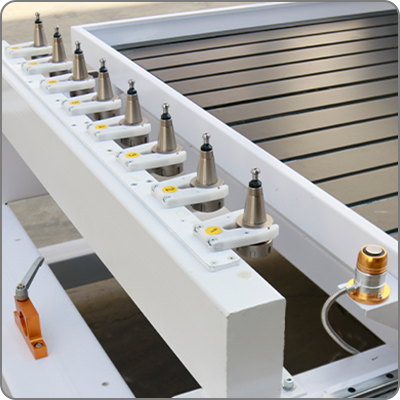

8PC linear tool changer



Yakao easy servo motor S3.png

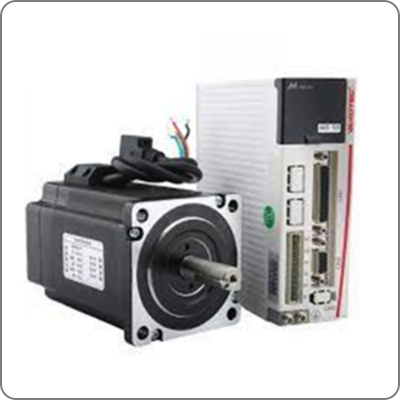

Easy servo motor


linear rail.png

Square rail


gear rack.png

Oblique rack

gear box oblique.png

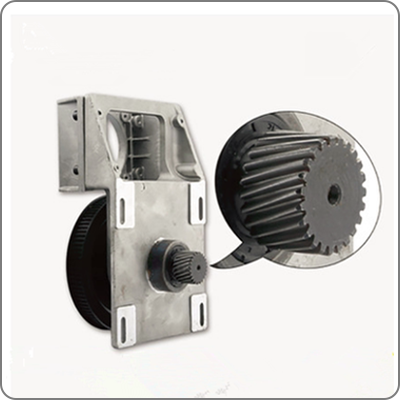

Gear box



vacuum table woodworking.png

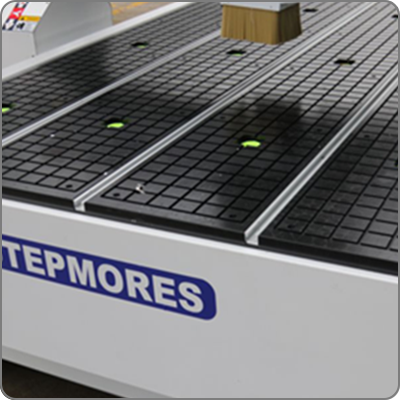

Vacuum absorption table


Double bags Dust collector.png

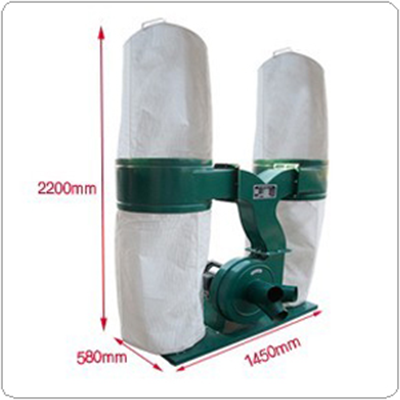

Dust collector


Auto up-down dust boot.png

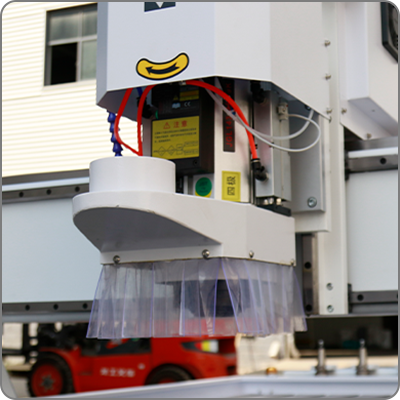

Auto up-down dust boot


Oiling tool.png

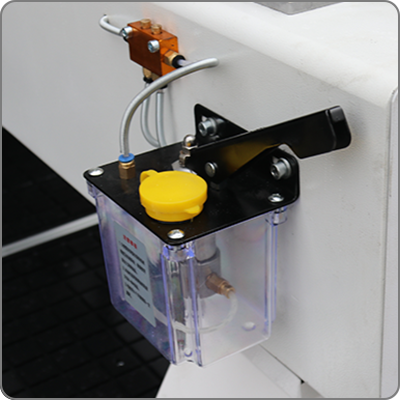

Oiling tool




ATC water cooling spindle.png

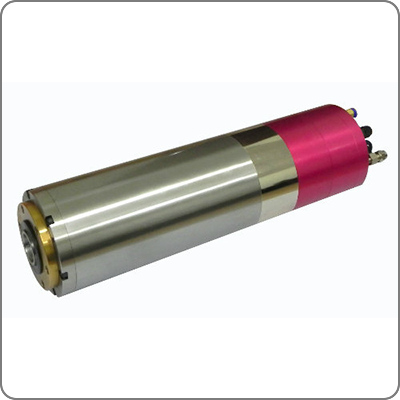

Water cooling ATC spindle


NK105CS controller.png

NK105CS controller


syntech 60w-e.png

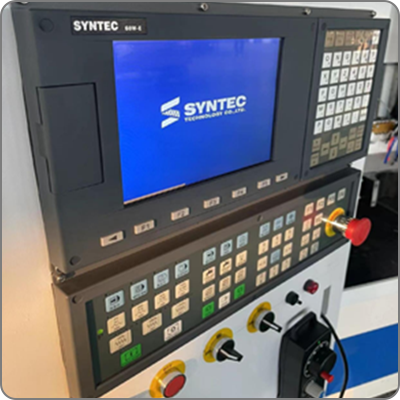

Syntech controller


Disk tool changer.png

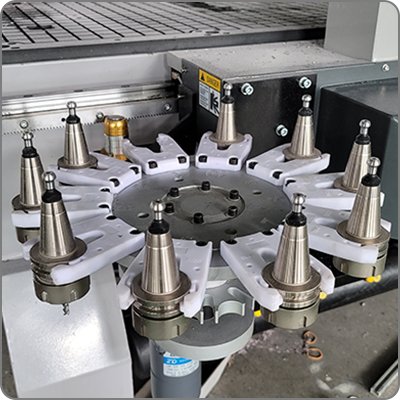

Disk tool changer



flood cooling.png

Flood cooling for tool bits



Mist cooling for tool bits


rotary device.png

Rotary device
