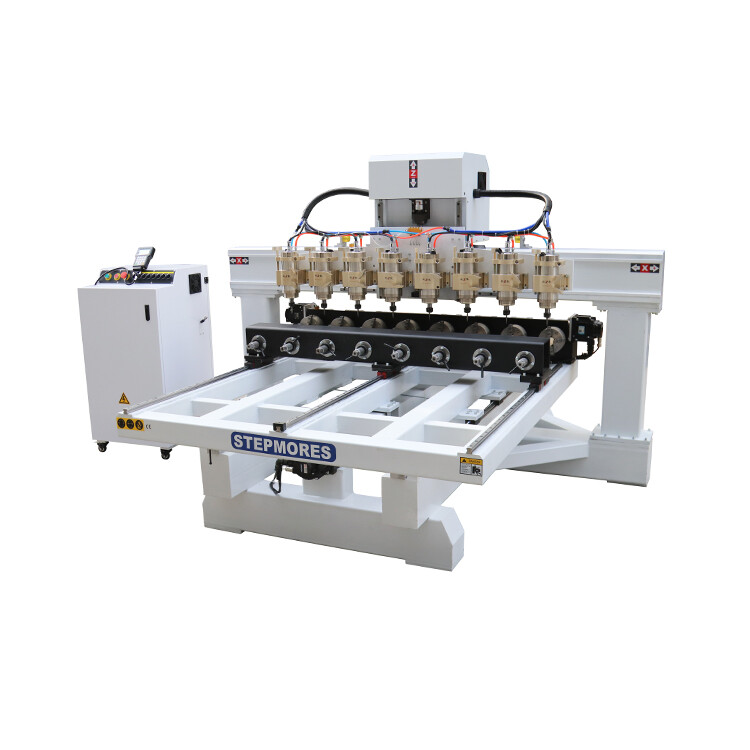

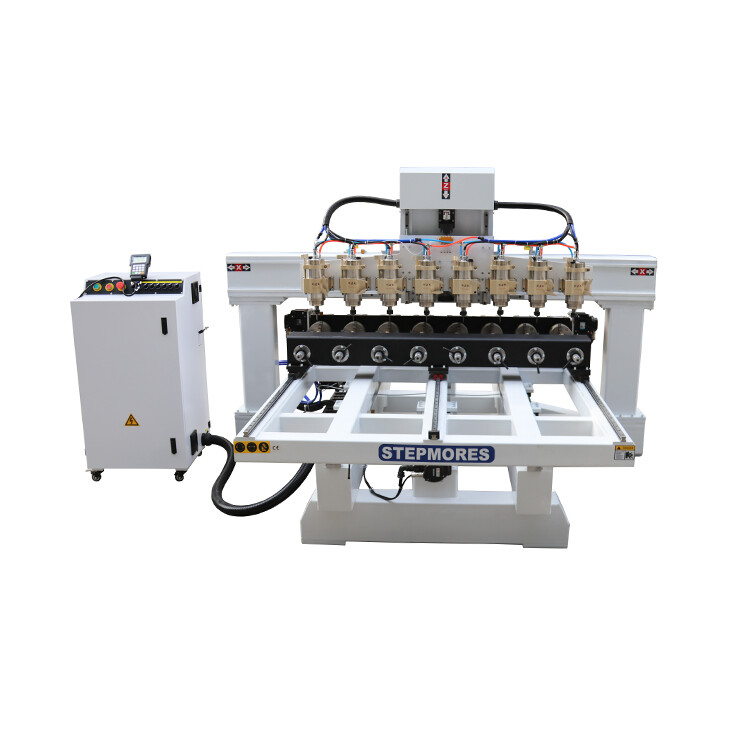

8 Rotary CNC

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

MODEL8R2012
Rotary chuck typeChuck or thorn type option
Working length1200mm
Machine move typeTable move
Spindle power3kw water cooling (0-24000rpm)
Control systemDSP
Drive typeServo motor
Rail typelinear rails
TransmitX gear rack and Y Z ballscrew
Max travel speed20000mm/min
Working precision0.05mm
PowerAC380V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code
Machine size2.14*2.4*1.69.m
packing size2.28*2.64*1.89m
Net / Gross weight1500kg / 1800kg
