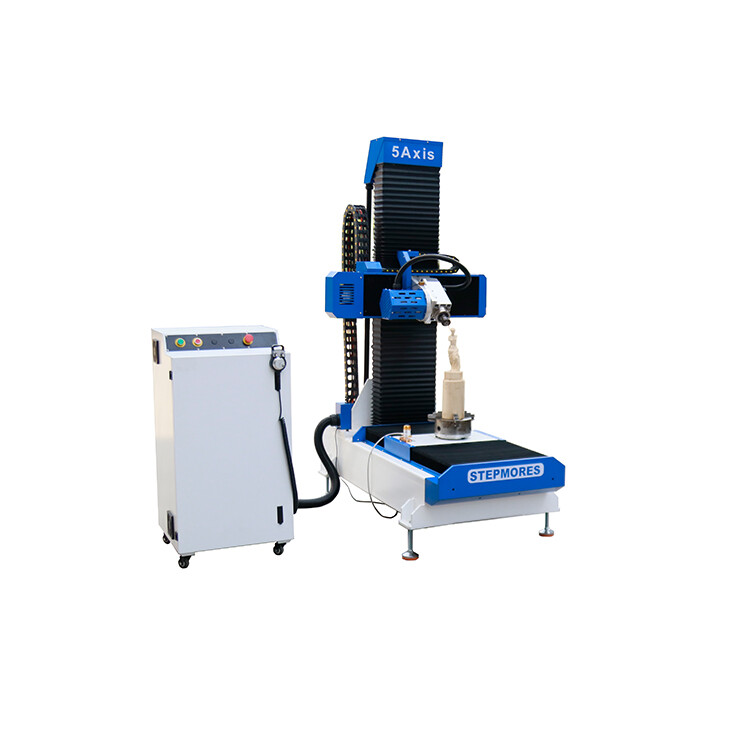

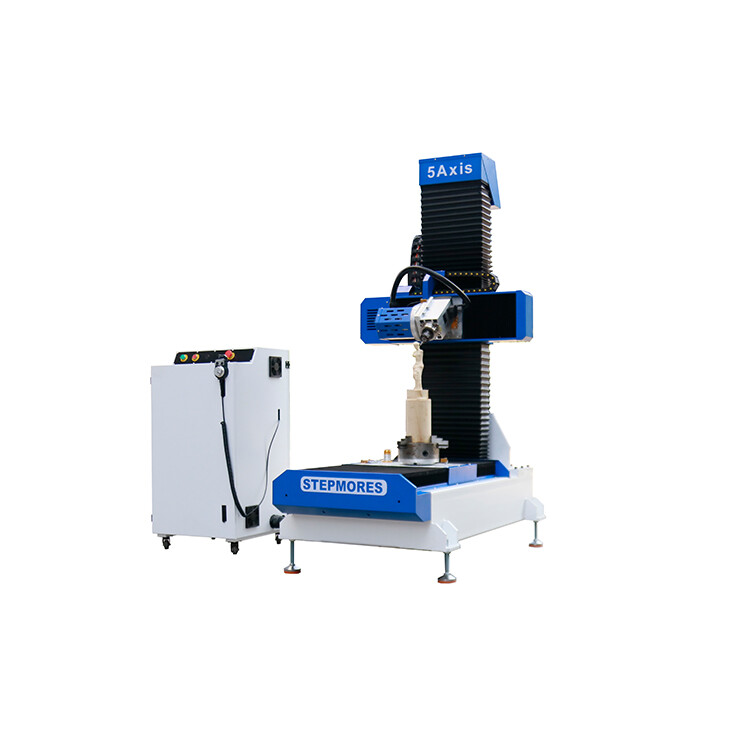

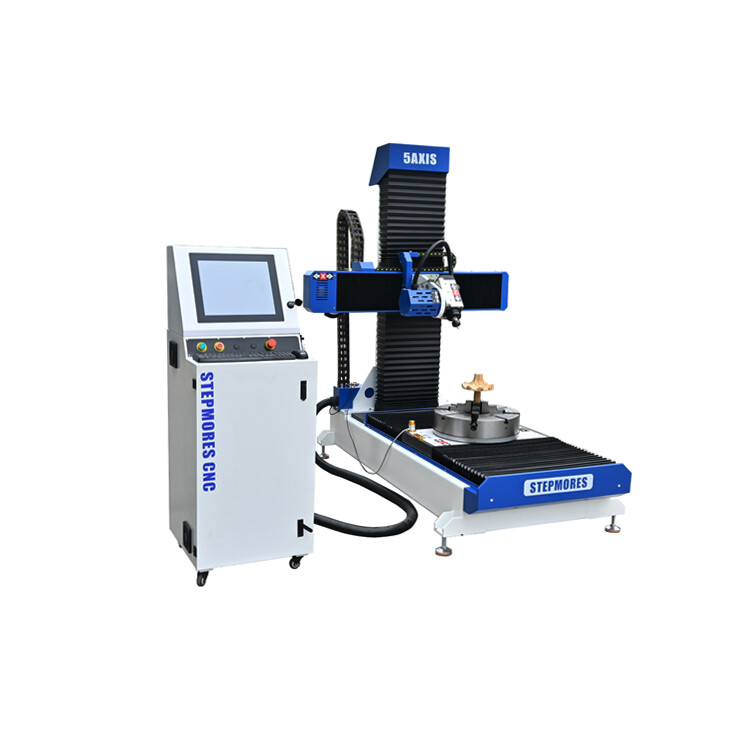

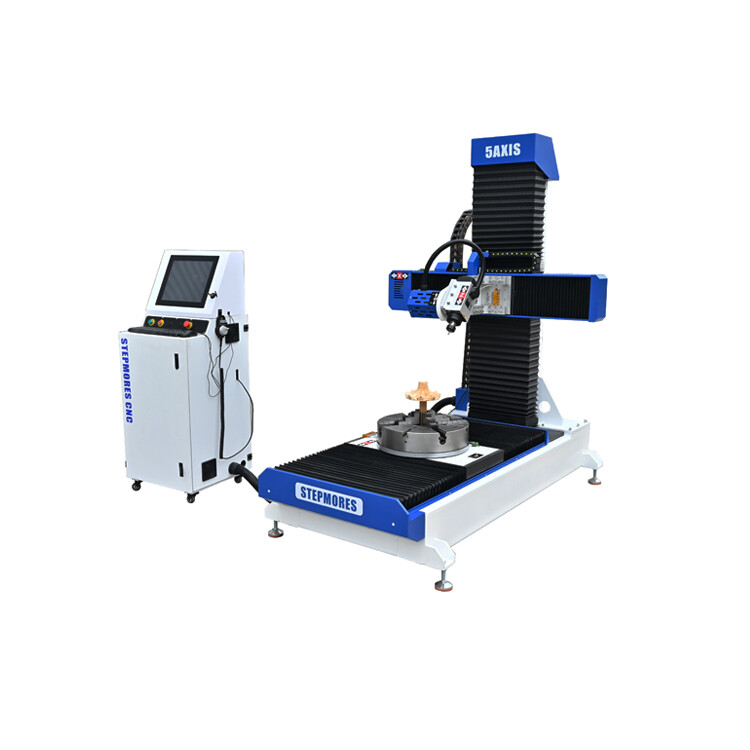

5 AXIS CNC

5axis A+C

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

X Y Z   axis travel distance 350x550X1000MM
Rotary chuck diameter200mm (bigger diameter optional)
Max object sizeCylinder / cuboid object 200mm x 750mm  (bigger size is option)
Spindle power4.5kw air cooling(0-18000RPM)
Rail typelinear rails
Control system5axis controller with RTCP function
Drive typeLeadshine servo motor
TransmitBallscrew
Max travel speed8000mm/min
Working precision0.05mm
PowerAC220V±10%/50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code
Machine size1.56*0.96*2.1m
Packing size1.7*1.1*2.24m
Net/Gross weight600kg / 720kg
